CV16-61514 - Kohler Command PRO Engine, Made for Toro, 16hp, 11.9kW Starting System 7-24-2 Parts Diagram

Command PRO Engine, Made for Toro, 16hp, 11.9kW

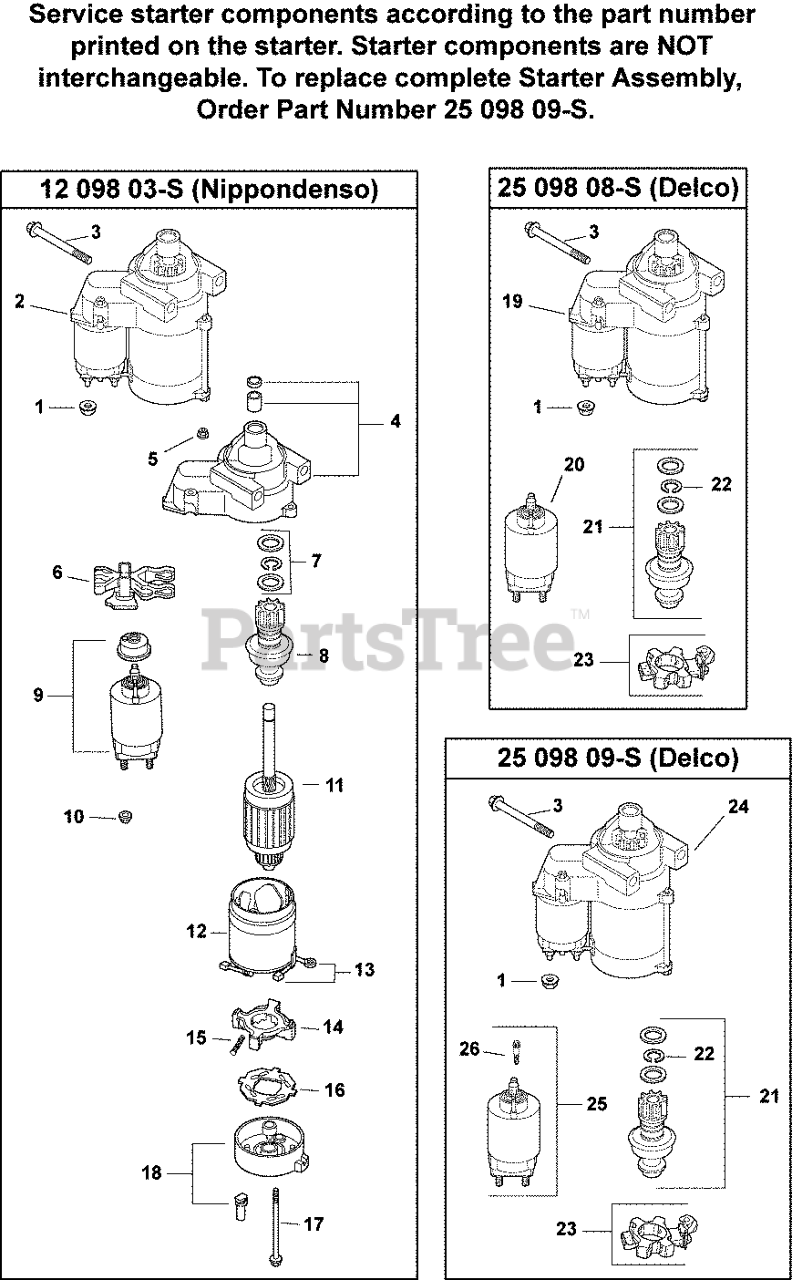

Starting System 7-24-2 Parts Diagram

  • Title

1

Kohler M-841080-S

NUT, FLG M8X1.25

$2.49

$

In Stock, Qty 20+

0

2

Kohler 12 098 03-S

USE 25 098 08-S STARTER
(Superseded to 25 098 09-S)

$264.99

$

Usually ships in 2-5 days

0

3

Kohler M-839080-S

SCREW - USE M-851080-S
(Superseded to M-851080-S)

$4.49

$

In Stock, only 2 left!

0

4

Kohler 12 081 02-S

DRIVE END CAP

$432.99

$

Usually ships in 2-5 days

0

5

Kohler 52 100 10-S

NUT

$5.49

$

Usually ships in 2-5 days

0

6

Kohler 12 090 10-S

LEVER, DRIVE

$91.99

$

Usually ships in 2-5 days

0

7

Kohler 24 755 84-S

KIT, STARTER REPAIR

$62.99

$

Usually ships in 2-5 days

0

8

Kohler 12 239 01-S

DRIVE PINION

$361.99

$

Usually ships in 2-5 days

0

9

Kohler 52 435 02-S

SOLENOID

$566.99

$

Usually ships in 2-5 days

0

10

Kohler 52 100 09-S

NUT

$5.99

$

Usually ships in 2-5 days

0

11

Kohler 12 170 03-S

ARMATURE - DISCONTINUED

$

$

Not available

12

Kohler 12 471 01-S

FRAME W/BRUSHES - DISCONTINUED

$

$

Not available

13

Kohler 52 221 01-S

BRUSH & SPRING KIT

Note: (includes 15)

$130.99

$

Usually ships in 2-5 days

0

14

Kohler 52 323 03-S

BRUSH HOLDER

$23.99

$

Usually ships in 2-5 days

0

15

Kohler 52 089 09-S

SPRING, BRUSH

$7.99

$

Usually ships in 2-5 days

0

16

Kohler 52 168 01-S

INSULATOR

$35.99

$

Usually ships in 2-5 days

0

17

Kohler 52 211 05-S

THRU BOLT

$11.99

$

Usually ships in 2-5 days

0

18

Kohler 12 301 01-S

COMMUTATOR END CAP - DISCONTINUED

$

$

Not available

19

Kohler 25 098 08-S

STARTER, SOLENOID SHIFT-USE 25 098 11-S
(Superseded to 25 098 09-S)

$264.99

$

Usually ships in 2-5 days

0

20

Kohler 25 435 04-S

SOLENOID-(#DSC)

$

$

Not available

21

Kohler 25 755 33-S

KIT, STARTER PINION

Note: (includes 22)

$

$

Not available

22

Kohler 25 141 05-S

RING, RETAINING-(#DSC)

$

$

Not available

23

Kohler 25 221 01-S

KIT, BRUSH HOLDER

$89.99

$

Usually ships in 2-5 days

0

24

Kohler 25 098 09-S

STARTER, SOLENOID SHIFT-USE 25 098 11-S
(Superseded to 25 098 20-S)

Note: (includes 21-23, 25, 26)

$264.99

$

Usually ships in 2-5 days

0

25

Kohler 25 435 06-S

KIT, SOLENOID

Note: (includes 26)

$259.99

$

In Stock, only 1 left!

0

26

Kohler 25 086 113-S

SCREW, EXTERNAL TORX HEAD

$19.99

$

Usually ships in 2-5 days

0
