CV17-72513 - Kohler Command PRO Engine, Made for Kubota, 17hp, 12.7kW Crankcase 2-24-111 Parts Diagram

Command PRO Engine, Made for Kubota, 17hp, 12.7kW

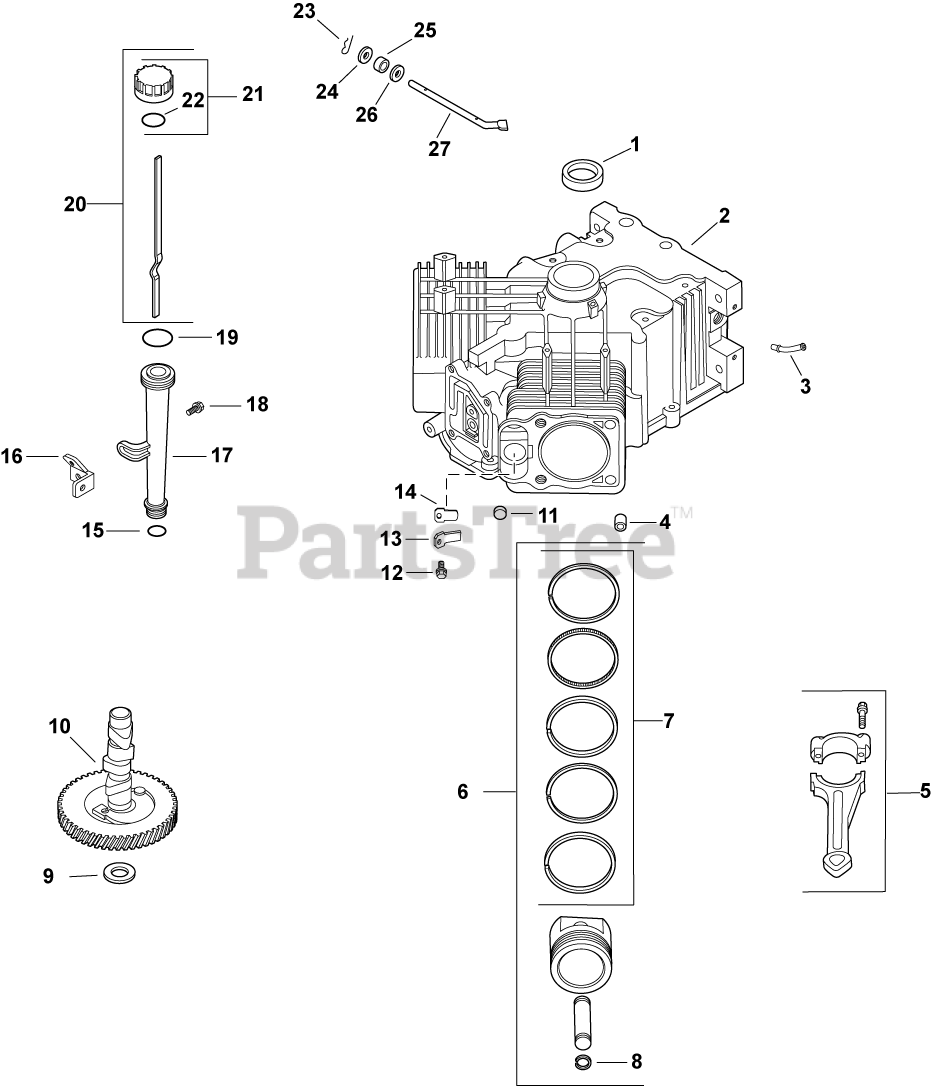

Crankcase 2-24-111 Parts Diagram

  • Title

1

Kohler 24 032 01-S

SEAL, OIL FRONT-USE 24 032 19-S
(Superseded to 24 032 19-S)

$9.49

$

In Stock, Qty 20+

0

2

Crankcase

Note: use Short Block

$

$

Not available

3

Kohler 24 294 13-S

FITTING

$14.99

$

Usually ships in 2-5 days

0

4

Kohler 24 380 16-S

PIN, LOCATING

$4.49

$

In Stock, Qty 7

0

5

Kohler 24 067 13-S

ROD, CONNECTING ASSY STD-USE 24 067 28-S
(Superseded to 25 067 04-S)

$83.99

$

In Stock, Qty 20+

0

2406714-S

Kohler 24 067 14-S

ROD,CONNECT ASSY.25 U/S-USE 24 067 17-S
(Superseded to 25 067 05-S)

$83.99

$

In Stock, only 1 left!

0

6

Kohler 28 874 01-S

PISTON W/RING SET-USE 24 874 22-S
(Superseded to 24 874 22-S)

$213.99

$

Usually ships in 2-5 days

0

2887405-S

Kohler 28 874 05-S

USE 24 874 24-S KIT
(Superseded to 24 874 24-S)

$

$

Not available

7

Kohler 28 108 01-S

RING SET, STD - DISCONTINUED

$

$

Not available

8

Kohler 24 018 01-S

RETAINER, PISTON PIN

$3.49

$

In Stock, Qty 14

0

9

Kohler 12 422 10-S

SHIM, CAMSHAFT (YELLOW .034")

$2.49

$

In Stock, Qty 11

0

1242209-S

Kohler 12 422 09-S

SHIM, CAMSHAFT (RED .032")

$2.49

$

In Stock, only 1 left!

0

1242213-S

Kohler 12 422 13-S

SHIM, CAMSHAFT (BLACK .04")

$2.99

$

Usually ships in 2-5 days

0

1242207-S

Kohler 12 422 07-S

SHIM, CAMSHAFT (WHITE .028")

$4.49

$

In Stock, only 2 left!

0

1242208-S

Kohler 12 422 08-S

SHIM, CAMSHAFT (BLUE .03")

$2.49

$

In Stock, only 2 left!

0

1242211-S

Kohler 12 422 11-S

SHIM, CAMSHAFT (GREEN .036")

$2.49

$

Usually ships in 2-5 days

0

1242212-S

Kohler 12 422 12-S

SHIM, CAMSHAFT (GRAY .038")

$2.99

$

Usually ships in 2-5 days

0

10

Kohler 24 012 10-S

KIT, CAMSHAFT
(Superseded to 24 012 23-S)

$

$

Not available

11

Kohler 52 139 09-S

PLUG, CUP

$4.99

$

In Stock, Qty 10

0

12

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, Qty 5

0

13

Kohler 24 018 04-S

RETAINER, BREATHER REED

$2.49

$

In Stock, Qty 20+

0

14

Kohler 24 402 05-S

REED, BREATHER
(Superseded to 24 402 07-S)

$3.99

$

In Stock, Qty 16

0

15

Kohler 12 153 01-S

O-RING, LOWER OIL FILL TUBE

$6.99

$

In Stock, Qty 20+

0

16

Kohler 24 126 19-S

BRACKET, OIL FILL TUBE USE 24 126 243-S
(Superseded to 24 126 246-S)

$9.49

$

Usually ships in 2-5 days

0

17

Kohler 12 123 04-S

TUBE, OIL FILL USE 25 123 07-S
(Superseded to 25 123 07-S)

$18.99

$

In Stock, only 2 left!

0

18

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$4.49

$

In Stock, Qty 20+

0

19

Kohler 12 153 02-S

O-RING, UPPER OIL FILL TUBE

$3.49

$

In Stock, Qty 20+

0

20

Kohler 24 038 04-S

DIPSTICK, ASSY

$21.99

$

In Stock, only 3 left!

0

21

Kohler 25 755 13-S

KIT, OIL FILL CAP (BLACK)

$15.99

$

In Stock, only 4 left!

0

22

Kohler 12 153 03-S

O-RING - USE 25 153 02-S
(Superseded to 25 153 02-S)

$3.49

$

In Stock, Qty 17

0

23

Kohler 24 018 09-S

RETAINER, RING

$2.49

$

In Stock, Qty 19

0

24

Kohler M-931010-S

WASHER, FLAT 9 MM

$2.49

$

In Stock, Qty 8

0

25

Kohler 28 032 09-S

SEAL, GOVERNOR CROSS SHAFT

$4.49

$

In Stock, Qty 9

0

26

Kohler 24 468 15-S

WASHER, FLAT 11/32"

$2.49

$

In Stock, only 2 left!

0

27

Kohler 24 144 38-S

SHAFT, GOVERNOR CROSS
(Superseded to 24 144 39-S)

$58.99

$

Usually ships in 2-5 days

0
