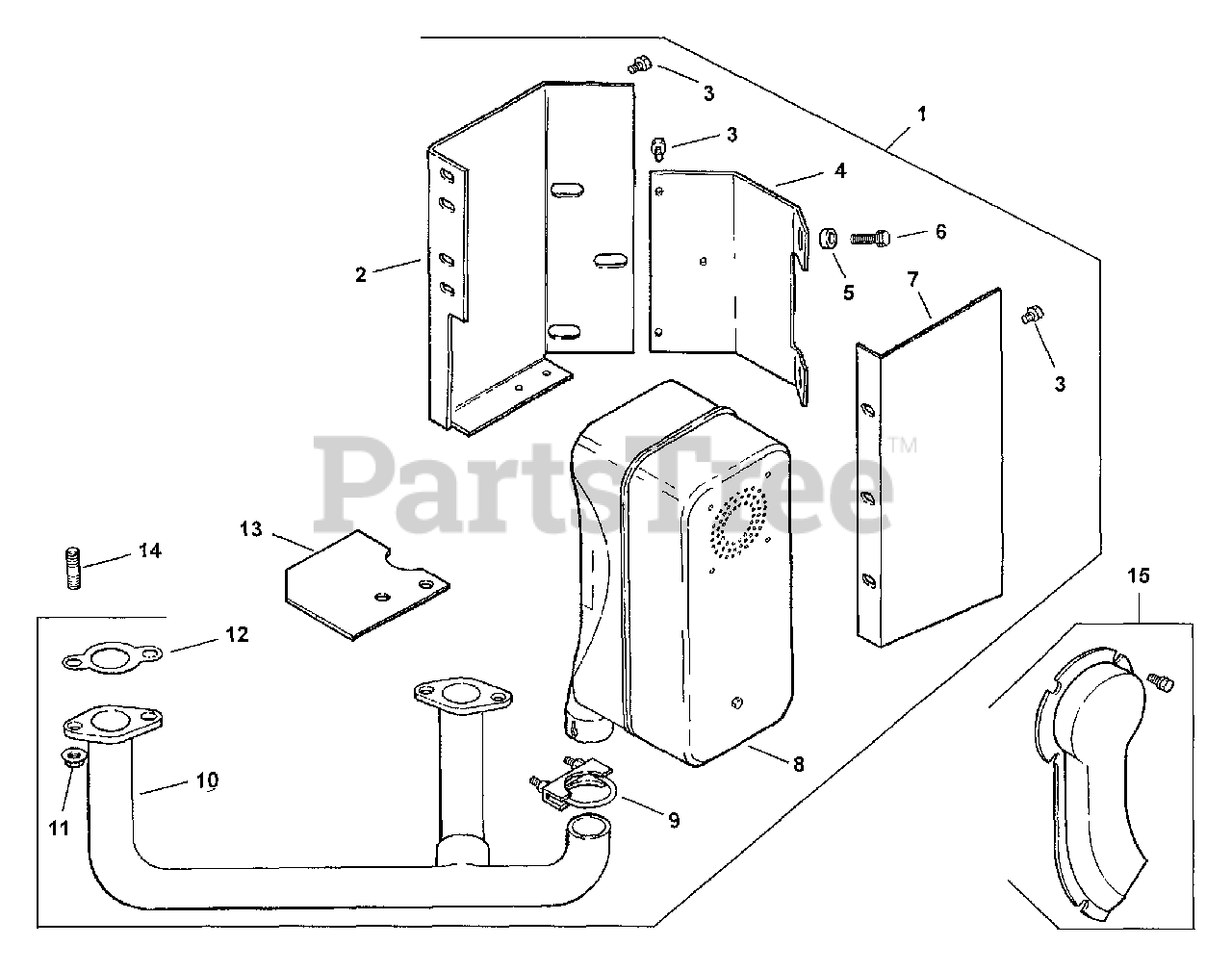

CV18-61523 - Kohler Command PRO Engine, Made for Ransomes, 18hp, 13.4kW Exhaust 11-24-400 (TP-2461) Rev 10/10/2006 Parts Diagram

Command PRO Engine, Made for Ransomes, 18hp, 13.4kW

Exhaust 11-24-400 (TP-2461) Rev 10/10/2006 Parts Diagram

  • Title

1

Kohler 24 786 16-S

KIT, MUFFLER MOUNTING

Note: Includes 2-13

$592.99

$

Usually ships in 2-5 days

0

2

Kohler 24 126 34-S

BRACKET, MUFFLER

$109.99

$

Usually ships in 2-5 days

0

3

Kohler M-0645016

SCREW - USE M-645016
(Superseded to M-645016)

$4.99

$

In Stock, Qty 9

0

4

Kohler 24 126 38-S

BRACKET, MUFFLER

$167.99

$

Usually ships in 2-5 days

0

5

Kohler 24 112 08-S

SPACER

$4.49

$

Usually ships in 2-5 days

0

6

Kohler M-0651030

SCREW - USE M-651030
(Superseded to M-651030-S)

$2.49

$

Usually ships in 2-5 days

0

7

Kohler 24 265 03-S

DEFLECTOR, EXHAUST

$46.99

$

Usually ships in 2-5 days

0

8

Kohler 24 068 22-S

MUFFLER USE 24 067 127-S
(Superseded to 24 068 127-S)

$283.99

$

Usually ships in 2-5 days

0

9

Kohler 24 237 01-S

CLAMP, MUFFLER

$9.49

$

Usually ships in 2-5 days

0

10

Kohler 24 164 17-S

MANIFOLD, EXHAUST

$206.99

$

Usually ships in 2-5 days

0

11

Kohler M-0841080

NUT - USE M-841080
(Superseded to M-841080)

$2.49

$

In Stock, Qty 20+

0

12

Kohler 24 041 02-S

USE 24 041 49-S GASKET
(Superseded to 25 041 17-S)

$2.99

$

In Stock, Qty 20+

0

13

Kohler 24 265 02

DEFLECTOR - USE 24 265 09
(Superseded to 24 265 09-S)

$14.99

$

In Stock, only 1 left!

0

14

Kohler M-0829033

STUD - USE M-829033
(Superseded to M-829033)

$5.49

$

In Stock, Qty 19

0
