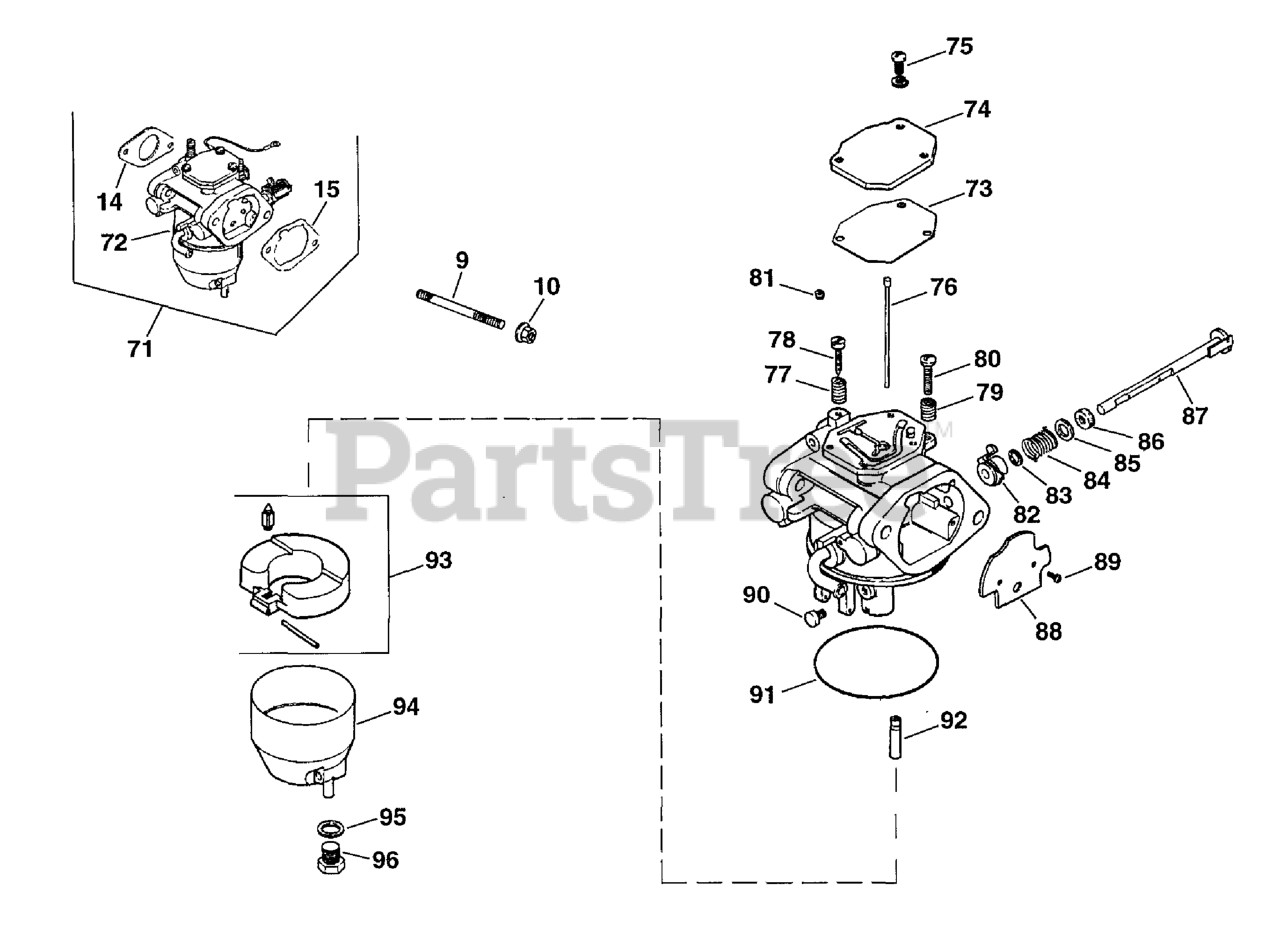

CV18-61531 - Kohler Command PRO Engine, Made for Snapper, 18hp, 13.4kW Fuel System (Cont.) 8-24-118 (TP-2461) Rev 10/11/2006 Parts Diagram

Command PRO Engine, Made for Snapper, 18hp, 13.4kW

Fuel System (Cont.) 8-24-118 (TP-2461) Rev 10/11/2006 Parts Diagram

  • Title

9

Kohler M-0629128

Stud, M6x1.0x128
(Superseded to M-629128-S)

$13.99

$

Usually ships in 2-5 days

0

10

Kohler M-0641060

NUT - USE M-641060
(Superseded to M-641060)

$4.49

$

In Stock, Qty 5

0

14

Kohler 24 041 15-S

GASKET, CARBURETOR

$15.99

$

In Stock, only 3 left!

0

15

Kohler 24 041 14-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 20+

0

72

Kohler 24 053 16

KIT, CARBURETOR W/GASKETS USE 24 853 16

Note: Includes 73-96, carburetor repair kit 24-757-06, high altitude kits 24-755-31 & 24-755-32

$

$

Not available

73

Kohler 24 041 18

KIT - USE 24 757 20
(Superseded to 24 757 20)

$74.99

$

In Stock, only 2 left!

0

74

Kohler 24 096 13-S

COVER, PASSAGE - DISCONTINUED

$

$

Not available

75

Kohler 24 086 21-S

SCREW DISCONTINUED

$

$

Not available

76

Kohler 24 337 11

JET, SLOW - DISCONTINUED

$

$

Not available

77

Kohler 24 089 23

KIT - USE 24 757 18
(Superseded to 24 757 18)

$96.99

$

In Stock, only 2 left!

0

78

Kohler 24 086 22

SCREW, IDLE ADJUST - USE 24 757 18
(Superseded to 24 757 18-S)

$96.99

$

In Stock, only 2 left!

0

79

Kohler 24 089 24-S

SPRING, THROTTLE - DISC

$

$

Not available

80

Kohler 24 086 19

KIT - USE 24 757 18
(Superseded to 24 757 18)

$96.99

$

In Stock, only 2 left!

0

81

Kohler 24 337 27-S

JET, AIR BLEED - DISC.

$

$

Not available

82

Kohler 24 090 10-S

USE 24 757 19-S KIT
(Superseded to 24 757 19-S)

$185.99

$

In Stock, only 1 left!

0

83

Kohler 24 141 04-S

RING, CHOKE LEVER-USE 24 757 19-S
(Superseded to 24 757 19-S)

$185.99

$

In Stock, only 1 left!

0

84

Kohler 24 089 22-S

USE 24 757 19-S KIT
(Superseded to 24 757 19-S)

$185.99

$

In Stock, only 1 left!

0

85

Kohler 24 241 01-S

COLLAR, CHOKE-USE 24 757 19-S
(Superseded to 24 757 19-S)

$185.99

$

In Stock, only 1 left!

0

86

Kohler 24 468 05-S

WASHER-USE 24 757 19-S
(Superseded to 24 757 19-S)

$185.99

$

In Stock, only 1 left!

0

87

Kohler 24 144 15-S

SHAFT, CHOKE-USE 24 757 19-S
(Superseded to 24 757 19-S)

$185.99

$

In Stock, only 1 left!

0

88

Kohler 24 146 13-S

PLATE, CHOKE-USE 24 757 19-S
(Superseded to 24 757 19-S)

$185.99

$

In Stock, only 1 left!

0

89

Kohler 24 086 20

SCREW - DISCONTINUED

Note: M3x0.5x4.5 (4)

$

$

Not available

90

Kohler 24 337 13-S

JET, MAIN - DISCONTINUED

$

$

Not available

91

Kohler 24 041 19

KIT - USE 24 757 20
(Superseded to 24 757 20)

$74.99

$

In Stock, only 2 left!

0

92

Kohler 24 369 01-S

NOZZLE DISCONTINUED

$

$

Not available

93

Kohler 24 757 05

KIT - USE 24 757 18
(Superseded to 24 757 18)

$96.99

$

In Stock, only 2 left!

0

94

Kohler 24 234 01-S

CHAMBER, FLOAT

$51.99

$

Usually ships in 2-5 days

0

95

Kohler 24 041 21-S

DISC. SEE PARTS BULLETIN

$

$

Not available

96

Kohler 24 086 24-S

SCREW, CHAMBER SET - DISC.

$

$

Not available
