CV18-61535 - Kohler Command PRO Engine, Made for Murray, 18hp, 13.4kW Fuel System 8-24-128 Parts Diagram

Command PRO Engine, Made for Murray, 18hp, 13.4kW

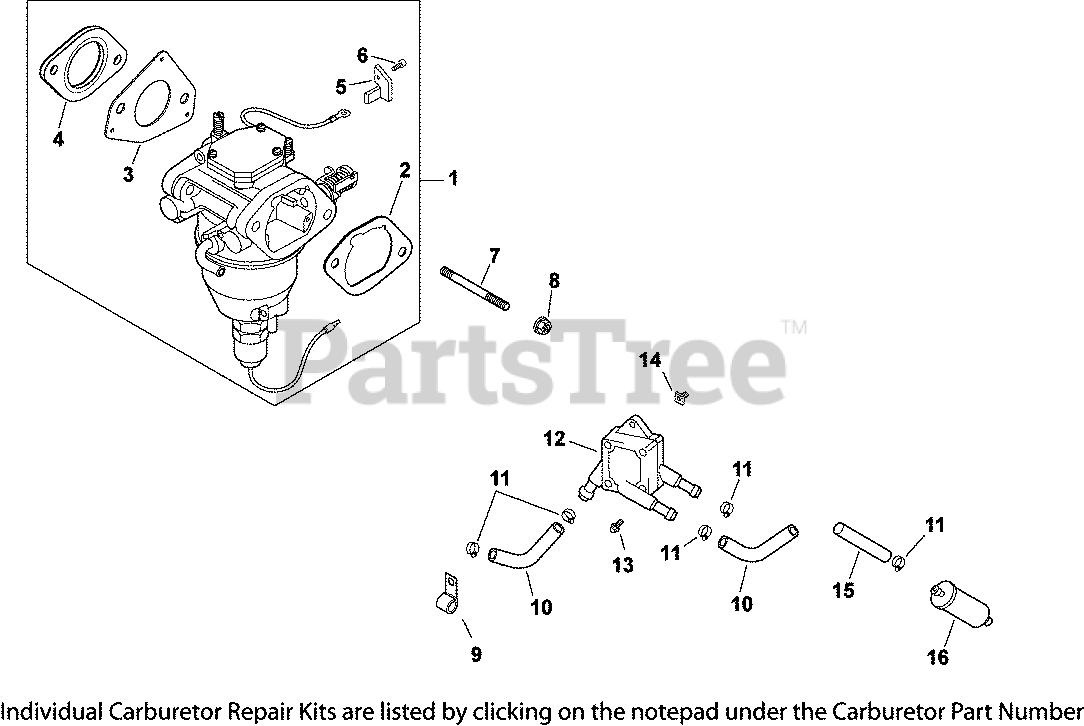

Fuel System 8-24-128 Parts Diagram

  • Title

1

Kohler 24 853 24-S

CARBURETOR KIT-USE 24 853 41-S
(Superseded to 24 853 41-S)

Note: (includes 2-7)

$510.99

$

Usually ships in 2-5 days

0

2

Kohler 24 041 14-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 20+

0

3

Kohler 24 041 52-S

GASKET, CARBURETOR
(Superseded to 24 041 91-S)

$6.99

$

In Stock, Qty 15

0

4

Kohler 24 041 15-S

GASKET, CARBURETOR

$15.99

$

In Stock, only 4 left!

0

5

Kohler 24 126 29-S

BRACKET, THROTTLE STOP

$14.99

$

Usually ships in 2-5 days

0

6

Kohler M-259005-S

SCREW, PHL THD FRM M2.5X0.45X5

$2.49

$

Usually ships in 2-5 days

0

7

Kohler M-629095-S

STUD,M6X1.0X96

$3.99

$

In Stock, only 2 left!

0

8

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 12

0

9

Kohler 47 154 01-S

CLIP, CABLE

$5.49

$

In Stock, only 2 left!

0

10

Kohler 24 353 03-S

LINE, FLEXIBLE FUEL 10.92"-USE 24 353 12
(Superseded to 24 353 12-S)

$3.99

$

Usually ships in 2-5 days

0

11

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$6.49

$

In Stock, Qty 16

0

12

Kohler 24 393 16-S

PUMP, FUEL

$32.99

$

In Stock, Qty 20+

0

13

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$

$

Not available

14

Kohler 25 100 37-S

NUT, PLASTIC - BLACK

$2.49

$

In Stock, only 2 left!

0

15

Kohler 25 353 10-S

LINE, FLEXIBLE FUEL 9.0

$6.49

$

In Stock, only 2 left!

0

16

Kohler 25 050 03-S

USE 25 050 08-S FUEL FILTER
(Superseded to 25 050 22-S)

$8.99

$

In Stock, Qty 20+

0
