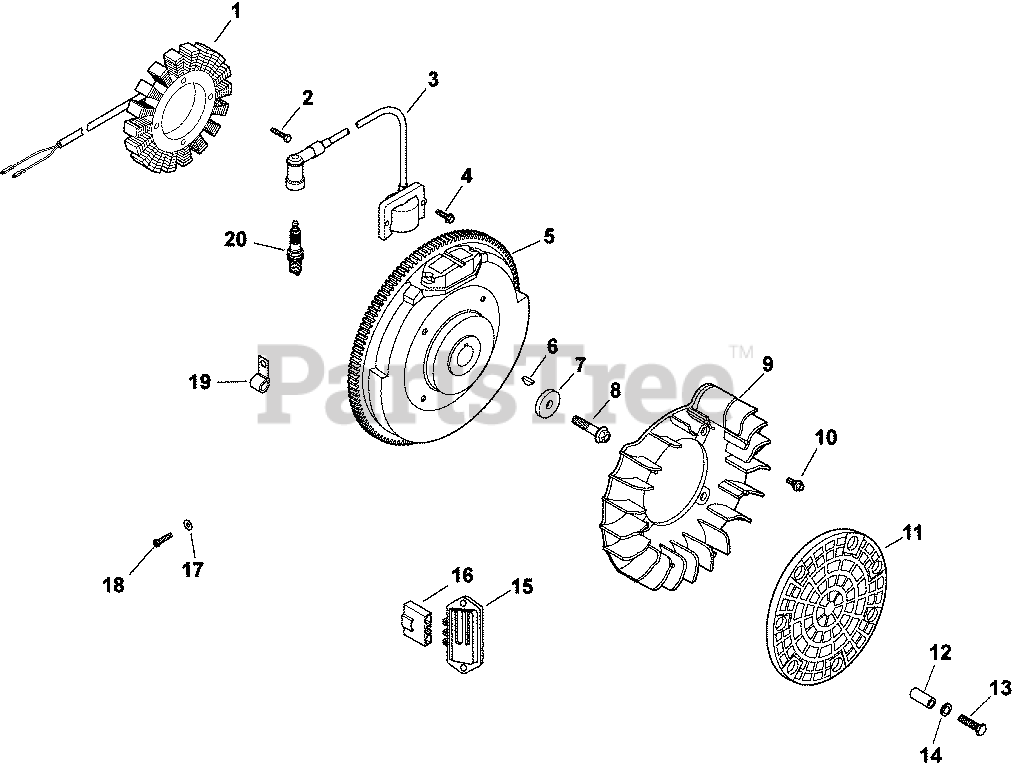

CV18-61539 - Kohler Command PRO Engine, Made for Dixon, 18hp, 13.4kW Ignition/Electrical 5-24-243 Parts Diagram

Command PRO Engine, Made for Dixon, 18hp, 13.4kW

Ignition/Electrical 5-24-243 Parts Diagram

  • Title

1

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

Note: (includes 25 452 01-S)

$149.99

$

In Stock, Qty 8

0

2

Kohler M-548025-S

SCREW, M5X0.8X25 - (#25086402S)
(Superseded to 25 086 402-S)

$2.99

$

In Stock, only 1 left!

0

3

Kohler 24 584 01-S

MODULE, IGNITION-USE 24 584 45-S
(Superseded to 24 584 45-S)

$93.99

$

Usually ships in 2-5 days

0

4

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.99

$

In Stock, Qty 20+

0

5

Kohler 24 025 04-S

FLYWHEEL, PAINTED-USE 24 025 55-S
(Superseded to 24 025 55-S)

$310.99

$

Usually ships in 2-5 days

0

6

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 20+

0

7

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

8

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$4.49

$

Usually ships in 2-5 days

0

9

Kohler 24 157 16-S

FAN USE 24 157 11-S
(Superseded to 24 755 253-S)

$50.99

$

In Stock, Qty 10

0

10

Kohler 25 086 47-S

BOLT, SHOULDER

$2.99

$

In Stock, Qty 20+

0

11

Kohler 54 755 15-S

KIT, GRASS SCREEN

$41.99

$

In Stock, only 2 left!

0

12

Kohler 24 112 04-S

SPACER - DISCONTINUED

$

$

Not available

13

Kohler M-403025-S

SCREW, SLT HD CAP M4X0.7X25

$4.99

$

In Stock, only 1 left!

0

14

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

In Stock, only 2 left!

0

15

Kohler 25 403 05-S

REG/RECTIFIER (20/25 AMP)-USE 25 403 20-S
(Superseded to 25 403 48-S)

$82.99

$

In Stock, Qty 6

0

16

Kohler 236602-S

CONNECTOR, BODY (KM)-USE 25 155 41-S
(Superseded to 25 155 41-S)

$29.99

$

In Stock, only 1 left!

0

17

Kohler X-25-92-S

WASHER, FLAT 3/16"

$2.99

$

In Stock, only 2 left!

0

18

Kohler 24 086 18-S

SCREW, PHL HD #11-16X7/8"

$

$

Not available

19

Kohler 48 154 02-S

CLIP

$16.99

$

Usually ships in 2-5 days

0

20

Kohler 12 132 02-S

PLUG, SPARK (STD)

$7.49

$

Usually ships in 2-6 days

0

2451828-S

Kohler 24 518 28-S

LEAD,KILL-SPADE CONNECTOR-DISC.

Note: NOT ILLUSTRATED

$

$

Not available

X-22-11-S

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 3 left!

0

1245403-S

Kohler 12 454 03-S

TIE, CABLE

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0

2417658-S

Kohler 24 176 58-S

USE 24 176 94-S WIRING HARNESS
(Superseded to 24 176 94-S)

Note: NOT ILLUSTRATED

$94.99

$

Usually ships in 2-5 days

0

2412671-S

Kohler 24 126 71-S

BRACKET, STATOR WIRE-USE 24 126 139-S
(Superseded to 24 126 139-S)

Note: NOT ILLUSTRATED

$19.99

$

Usually ships in 2-5 days

0

2411318-S

Kohler 24 113 18-S

DECAL, GRASS SCREEN USE 24 113 499-S
(Superseded to 24 113 499-S)

Note: NOT ILLUSTRATED

$4.99

$

Usually ships in 2-5 days

0

235173-S

Kohler 235173-S

CLIP, CABLE

Note: NOT ILLUSTRATED

$11.99

$

Usually ships in 2-5 days

0
