CV18-61557 - Kohler Command PRO Engine, Made for Exmark, 18hp, 13.4kW Ignition/Electrical 5-24-356 CV18-750 Parts Diagram

Command PRO Engine, Made for Exmark, 18hp, 13.4kW

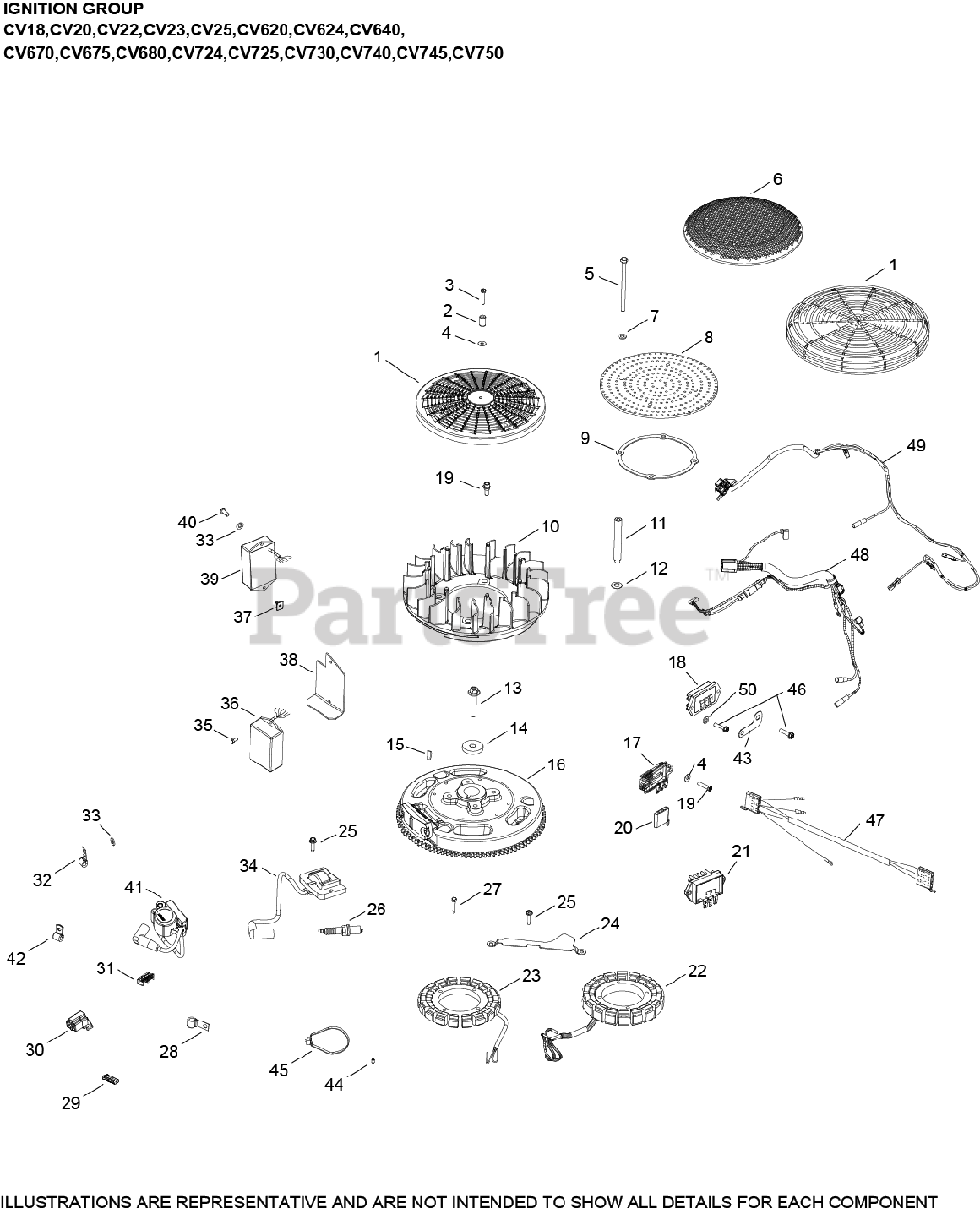

Ignition/Electrical 5-24-356 CV18-750 Parts Diagram

  • Title

2

Kohler M-603100-S

SCREW, CAP M6X1.0X99.5

$4.49

$

In Stock, Qty 11

0

5

Kohler X-25-53-S

WASHER, FLAT 1/4" (O.D. 5/8")

$3.49

$

In Stock, Qty 12

0

6

Kohler 24 162 41-S

SCREEN, GRASS

$24.99

$

In Stock, only 3 left!

0

7

Kohler X-25-53-S

WASHER, FLAT 1/4" (O.D. 5/8")

$3.49

$

In Stock, Qty 12

0

9

Kohler 24 141 06-S

RING, SUPPORT USE 25 141 08-S
(Superseded to 25 141 08-S)

$5.49

$

In Stock, Qty 10

0

10

Kohler 24 157 12-S

FAN

$22.99

$

In Stock, only 2 left!

0

11

Kohler 24 112 14-S

SPACER

$18.99

$

In Stock, Qty 8

0

12

Kohler 24 468 11-S

WASHER, SPRING 10 MM

$2.49

$

In Stock, Qty 13

0

13

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.49

$

In Stock, only 1 left!

0

14

Kohler 12 468 03-S

WASHER, FLAT 13/32"

$6.49

$

In Stock, only 1 left!

0

15

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, only 2 left!

0

16

Kohler 24 025 55-S

FLYWHEEL

$

$

Not available

18

Kohler 41 403 10-S

REGULATOR/RECTIFIER
(Superseded to 25 403 37-S)

$105.99

$

In Stock, only 3 left!

0

20

Kohler 25 155 41-S

CONNECTOR

$7.99

$

In Stock, Qty 11

0

23

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

$149.99

$

In Stock, Qty 10

0

25

Kohler 25 086 399-S

SCREW, THREAD FORMING - USE 25 086 473-S
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 17

0

26

Kohler 25 132 12-S

PLUG, SPARK (PRO SERIES)

$20.99

$

Usually ships in 2-5 days

0

27

Kohler 25 086 402-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 2 left!

0

28

Kohler 235173-S

CLIP, CABLE

$11.99

$

Usually ships in 2-5 days

0

33

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

In Stock, only 4 left!

0

34

Kohler 24 584 45-S

KIT, MODULE IGNTN (CDI FIXED)

$

$

Not available

42

Kohler 210281-S

CLIP

$7.49

$

Usually ships in 2-5 days

0

43

Kohler 24 126 137-S

BRACKET, GROUND STRAP USE 24 518 12-S
(Superseded to 24 518 12-S)

$4.99

$

In Stock, only 1 left!

0

44

Kohler 25 086 43-S

SCREW, SKT SET #10-24X1/4"

$2.49

$

Usually ships in 2-5 days

0

45

Kohler 25 454 07-S

TIE

$2.49

$

Usually ships in 2-5 days

0

46

Kohler 25 086 157-S

SCREW, HEX FLANGE HI-LO

$2.49

$

In Stock, Qty 5

0

48

Kohler 24 176 109-S

HARNESS, WIRING

$46.99

$

Usually ships in 2-5 days

0

2545201-S

Kohler 25 452 01-S

TERMINAL

Note: NOT ILLUSTRATED

$5.49

$

Usually ships in 2-5 days

0
