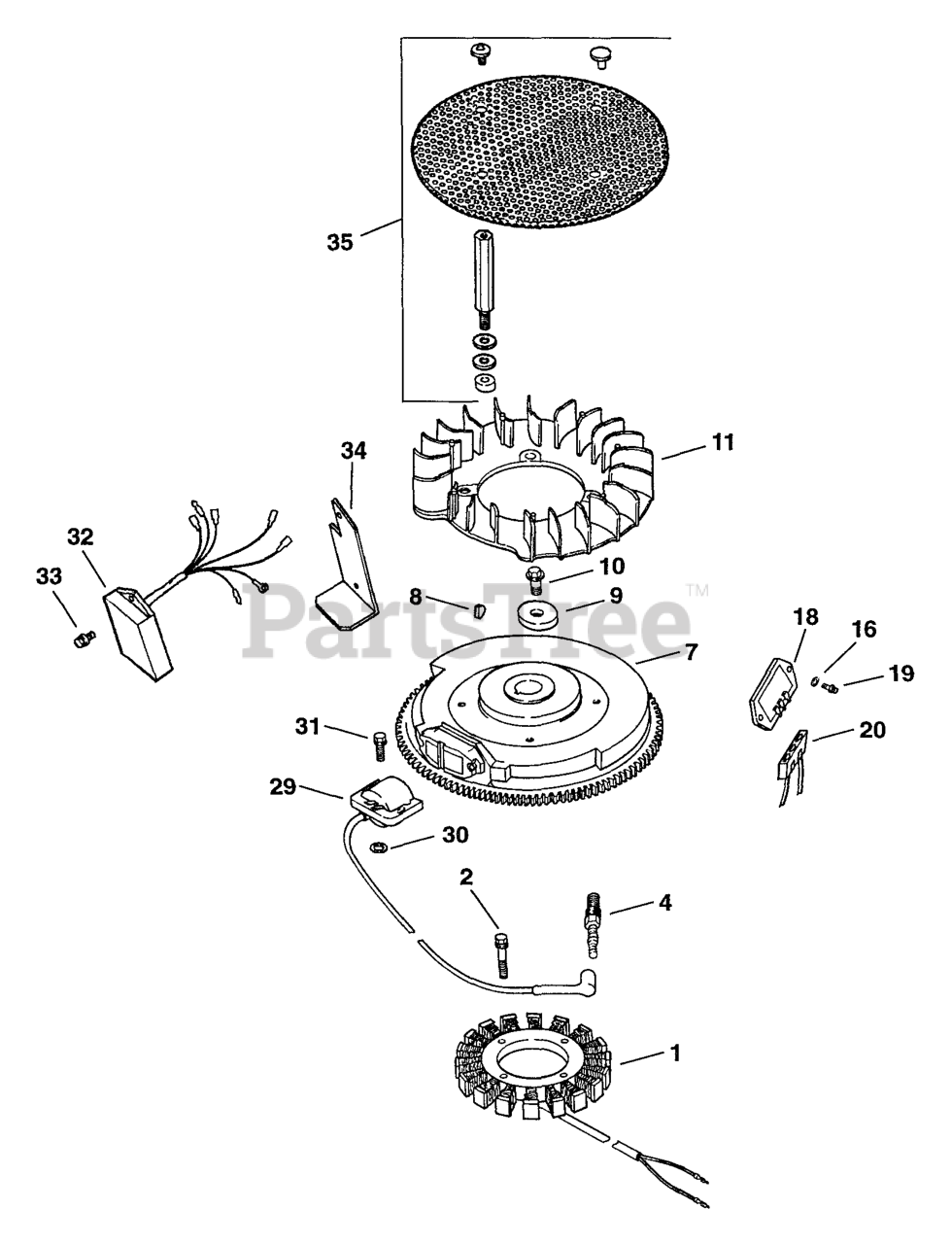

CV20-65520 - Kohler Command PRO Engine, Made for Exmark, 20hp, 14.9kW Ignition/Electrical (Cont.) 5-24-76 (TP-2461) Rev 10/9/2006 Parts Diagram

Command PRO Engine, Made for Exmark, 20hp, 14.9kW

Ignition/Electrical (Cont.) 5-24-76 (TP-2461) Rev 10/9/2006 Parts Diagram

  • Title

1

Kohler 24 085 01

KIT - USE 54 755 09
(Superseded to 54 755 09)

$149.99

$

In Stock, Qty 10

0

2

Kohler M-0548025

SCREW - USE M-548025
(Superseded to M-548025)

$2.49

$

In Stock, only 2 left!

0

4

Kohler 12 132 02-S

PLUG, SPARK (STD)

$3.49

$

In Stock, Qty 20+

0

7

Kohler 24 025 04-S

FLYWHEEL, PAINTED-USE 24 025 55-S
(Superseded to 24 025 55-S)

$

$

Not available

8

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, only 2 left!

0

9

Kohler 12 468 03-S

WASHER, FLAT 13/32"

$6.49

$

In Stock, only 1 left!

0

10

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.49

$

In Stock, only 1 left!

0

11

Kohler 24 157 03-S

USE 24 157 07-S FAN
(Superseded to 24 755 253-S)

$45.99

$

In Stock, Qty 6

0

16

Kohler X-25-92-S

WASHER, FLAT 3/16"

$2.99

$

In Stock, only 2 left!

0

18

Kohler 25 403 03-S

USE 41 403 09-S REG/RECT
(Superseded to 41 403 09-S)

$105.99

$

In Stock, only 2 left!

0

19

Kohler 24 086 18-S

SCREW, PHL HD #11-16X7/8"

$2.49

$

In Stock, only 2 left!

0

20

Kohler 236602-S

CONNECTOR, BODY (KM)-USE 25 155 41-S
(Superseded to 25 155 41-S)

$7.99

$

In Stock, Qty 11

0

35

Screen, metal chopper grass

Note: Old style, individual components are no longer available. Replaced by 24-755-79 [Index Nos. 36-41]

$

$

Not available

2417607-S

Kohler 24 176 07-S

USE 24 176 109-S HARNESS
(Superseded to 24 176 109-S)

$46.99

$

Usually ships in 2-5 days

0
