CV20-65544 - Kohler Command PRO Engine, Made for Electrolux Home Products, 20hp, 14.9kW Crankcase 2-24-81 Parts Diagram

Command PRO Engine, Made for Electrolux Home Products, 20hp, 14.9kW

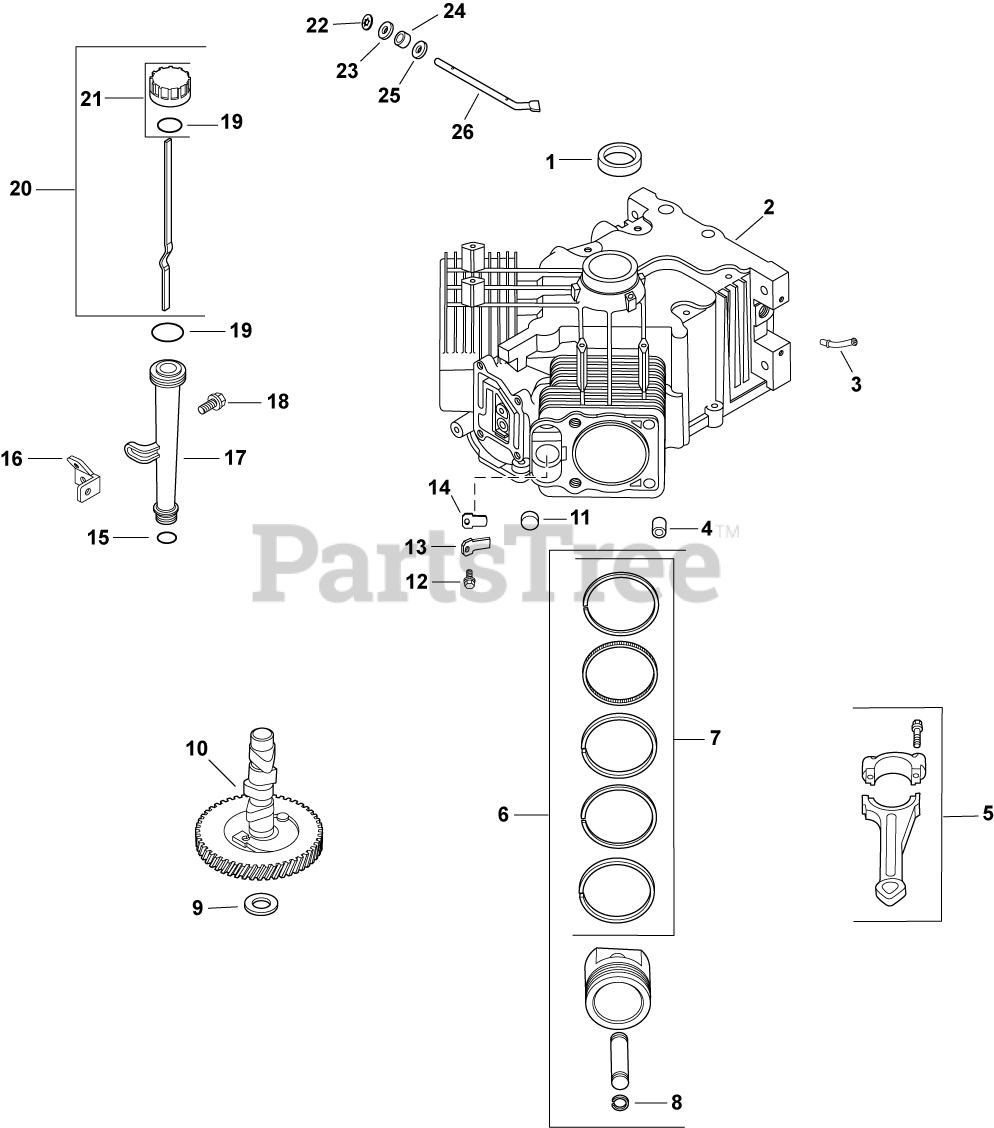

Crankcase 2-24-81 Parts Diagram

  • Title

1

Kohler 24 032 01-S

SEAL, OIL FRONT-USE 24 032 19-S
(Superseded to 24 032 19-S)

$9.49

$

In Stock, Qty 20+

0

2

CRANKCASE

Note: (use shortblock or miniblock)

$

$

Not available

3

Kohler 24 294 13-S

FITTING

$14.99

$

Usually ships in 2-5 days

0

4

Kohler 24 380 16-S

PIN, LOCATING

$4.49

$

In Stock, Qty 5

0

5

Kohler 24 067 24-S

ROD, CONNECTING ASSEMBLY-USE 24 067 28-S
(Superseded to 25 067 04-S)

$75.99

$

In Stock, Qty 20+

0

2406725-S

Kohler 24 067 25-S

ROD ASSY,CONNECT .25 U/S-USE 24 067 29-S
(Superseded to 25 067 05-S)

$75.99

$

In Stock, only 1 left!

0

6

Kohler 24 874 38-S

PISTON W/RINGS (STYLE A)(STD) USE 24 874 46-S
(Superseded to 24 874 46-S)

Note: (includes 7,8)

$199.99

$

Usually ships in 2-5 days

0

2487439-S

Kohler 24 874 39-S

KIT, PISTON-USE 24 874 47-S
(Superseded to 24 874 47-S)

Note: (includes 7,8)

$

$

Not available

2487440-S

Kohler 24 874 40-S

PISTON W/RINGS (STYLE A)(.25)-USE 24 874 48-S
(Superseded to 24 874 48-S)

Note: (includes 7,8)

$

$

Not available

2487441-S

Kohler 24 874 41-S

PISTON W/RINGS (STYLE A(.50)-USE 24 874 49-S
(Superseded to 24 874 49-S)

Note: (includes 7,8)

$189.99

$

Usually ships in 2-5 days

0

7

Kohler 24 108 22-S

RING SET (STD)1.5MM TOP RING THICKNESS (STYLE A)

$

$

Not available

8

Kohler 24 018 01-S

RETAINER, PISTON PIN

$3.49

$

In Stock, Qty 14

0

9

Kohler 12 422 07-S

SHIM, CAMSHAFT (WHITE .028")

$4.49

$

In Stock, only 2 left!

0

1242208-S

Kohler 12 422 08-S

SHIM, CAMSHAFT (BLUE .03")

$2.49

$

In Stock, only 2 left!

0

1242209-S

Kohler 12 422 09-S

SHIM, CAMSHAFT (RED .032")

$2.49

$

In Stock, only 1 left!

0

1242210-S

Kohler 12 422 10-S

SHIM, CAMSHAFT (YELLOW .034")

$2.49

$

In Stock, Qty 11

0

1242211-S

Kohler 12 422 11-S

SHIM, CAMSHAFT (GREEN .036")

$2.49

$

Usually ships in 2-5 days

0

1242212-S

Kohler 12 422 12-S

SHIM, CAMSHAFT (GRAY .038")

$2.99

$

Usually ships in 2-5 days

0

1242213-S

Kohler 12 422 13-S

SHIM, CAMSHAFT (BLACK .04")

$2.99

$

Usually ships in 2-5 days

0

10

Kohler 24 010 06-S

KIT, CAMSHAFT

$354.99

$

In Stock, only 1 left!

0

11

Kohler 52 139 09-S

PLUG, CUP

$4.99

$

In Stock, Qty 9

0

12

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 2 left!

0

13

Kohler 24 018 04-S

RETAINER, BREATHER REED

$2.49

$

In Stock, Qty 18

0

14

Kohler 24 402 05-S

REED, BREATHER
(Superseded to 24 402 07-S)

$3.99

$

In Stock, Qty 10

0

15

Kohler 12 153 01-S

O-RING, LOWER OIL FILL TUBE

$5.99

$

In Stock, Qty 20+

0

16

Kohler 24 126 19-S

BRACKET, OIL FILL TUBE USE 24 126 243-S
(Superseded to 24 126 246-S)

$9.49

$

Usually ships in 2-5 days

0

17

Kohler 12 123 04-S

TUBE, OIL FILL USE 25 123 07-S
(Superseded to 25 123 07-S)

$18.99

$

In Stock, only 2 left!

0

18

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$4.49

$

In Stock, Qty 18

0

19

Kohler 12 153 02-S

O-RING, UPPER OIL FILL TUBE

$3.49

$

In Stock, Qty 20+

0

20

Kohler 24 038 04-S

DIPSTICK, ASSY

Note: (includes 21)

$21.99

$

In Stock, only 2 left!

0

21

Kohler 25 755 13-S

KIT, OIL FILL CAP (BLACK)

Note: (includes 19)

$15.99

$

In Stock, only 4 left!

0

22

Kohler 24 018 09-S

RETAINER, RING

$2.49

$

In Stock, Qty 19

0

23

Kohler M-931010-S

WASHER, FLAT 9 MM

$2.49

$

In Stock, Qty 7

0

24

Kohler 28 032 09-S

SEAL, GOVERNOR CROSS SHAFT

$4.49

$

In Stock, only 2 left!

0

25

Kohler 24 468 15-S

WASHER, FLAT 11/32"

$2.49

$

In Stock, only 2 left!

0

26

Kohler 24 144 38-S

SHAFT, GOVERNOR CROSS
(Superseded to 24 144 39-S)

$52.99

$

Usually ships in 2-5 days

0
