CV20-65601 - Kohler Command PRO Engine, Made for Toro, 20hp, 14.9kW Fuel System 8-24-331 Parts Diagram

Command PRO Engine, Made for Toro, 20hp, 14.9kW

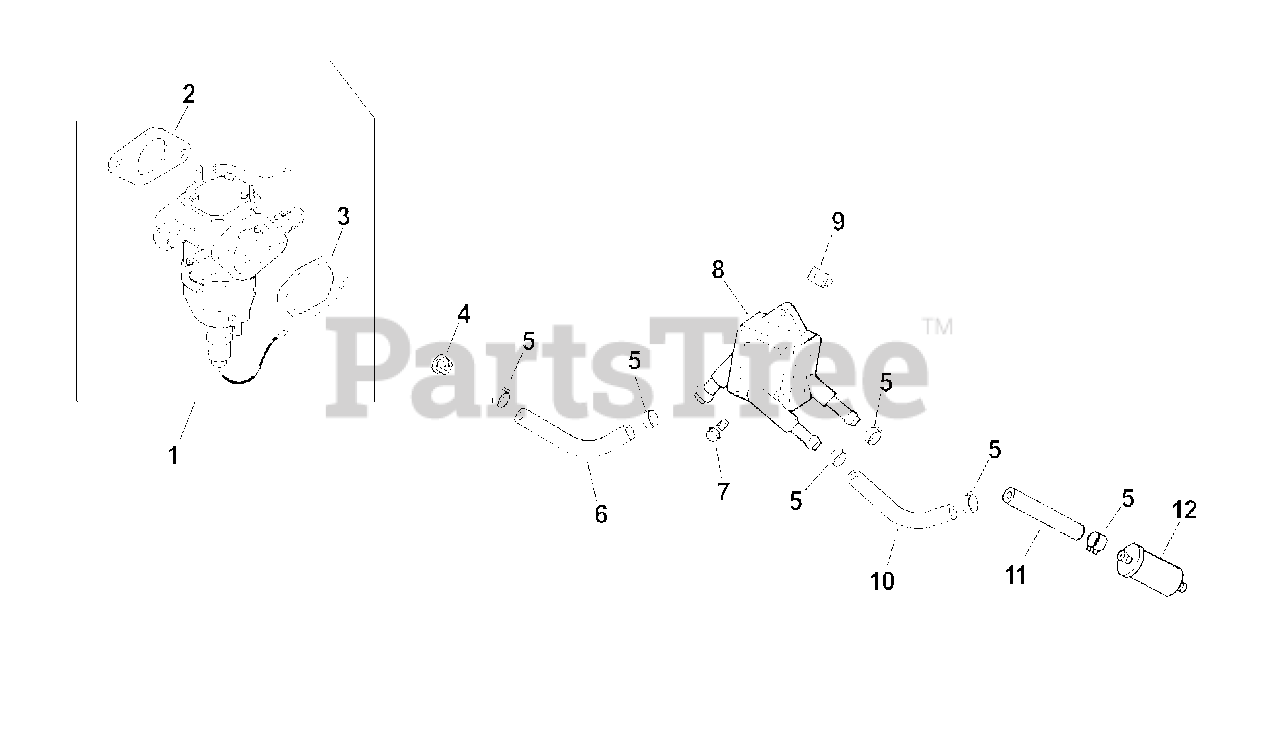

Fuel System 8-24-331 Parts Diagram

  • Title

1

Kohler 24 853 99-S

KIT, CARBURETOR W/GASKETS

Note: (Includes 2,3, 25 153 05-S & 24 041 44-S)

$936.99

$

Usually ships in 2-5 days

0

2

Kohler 24 041 15-S

GASKET, CARBURETOR

$15.99

$

In Stock, only 2 left!

0

3

Kohler 24 041 14-S

GASKET, AIR CLEANER BASE

$3.49

$

In Stock, Qty 15

0

4

Kohler M-641060-S

NUT, FLG M6X1.0

$4.99

$

In Stock, Qty 6

0

5

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$5.99

$

In Stock, only 2 left!

0

6

Kohler 25 353 04-S

LINE

Note: (6-1/4" - pump to filter)

$7.49

$

Usually ships in 2-5 days

0

7

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$2.49

$

Usually ships in 2-5 days

0

8

Kohler 24 393 16-S

PUMP, FUEL

$32.99

$

In Stock, Qty 18

0

9

Kohler 24 100 01-S

NUT, PLASTIC (KM)-USE 25 100 37-S
(Superseded to 25 100 37-S)

$2.49

$

In Stock, only 4 left!

0

10

Kohler 24 353 03-S

LINE, FLEXIBLE FUEL 10.92"-USE 24 353 12
(Superseded to 24 353 12-S)

Note: (10-5/8" - pump to fitting)

$3.99

$

Usually ships in 2-5 days

0

11

Kohler 28 353 01-S

LINE, FLEXIBLE FUEL - DISCONTINUED

Note: (13" - pump to carb)

$

$

Not available

12

Kohler 24 050 10-S

FILTER, FUEL (9-12 MICRON)-USE 24 050 13
(Superseded to 24 050 13-S)

$17.99

$

In Stock, Qty 20+

0

2404144-S

Kohler 24 041 44-S

GASKET, AIR CLEANER ADAPTER

Note: NOT ILLUSTRATED

$5.99

$

In Stock, only 1 left!

0

2415305-S

Kohler 24 153 05-S

O-RING, SOLENOID

Note: NOT ILLUSTRATED

$5.49

$

Usually ships in 2-5 days

0

2423402-S

Kohler 24 234 02-S

BOWL, FLOAT

Note: NOT ILLUSTRATED

$203.99

$

Usually ships in 2-5 days

0

2443101-S

Kohler 24 431 01-S

SLEEVE,INSULATING 6.0"-USE 24 431 02-S
(Superseded to 24 431 02-S)

Note: (pump to carb line) NOT ILLUSTRATED

$6.49

$

In Stock, only 2 left!

0

2475718-S

Kohler 24 757 18-S

KIT, CARBURETOR REPAIR

Note: NOT ILLUSTRATED

$98.99

$

In Stock, only 2 left!

0

2475719-S

Kohler 24 757 19-S

KIT, REPAIR SERVICE CHOKE

Note: NOT ILLUSTRATED

$202.99

$

In Stock, only 1 left!

0

2475720-S

Kohler 24 757 20-S

KIT, REPAIR SERVICE GASKET

Note: NOT ILLUSTRATED

$71.99

$

In Stock, only 2 left!

0

2475721-S

Kohler 24 757 21-S

KIT, ACC PUMP W/GASKETS

Note: NOT ILLUSTRATED

$147.99

$

In Stock, Qty 5

0

2475722-S

Kohler 24 757 22-S

KIT, REPAIR SOLENOID VALVE

Note: NOT ILLUSTRATED

$250.99

$

In Stock, only 1 left!

0
