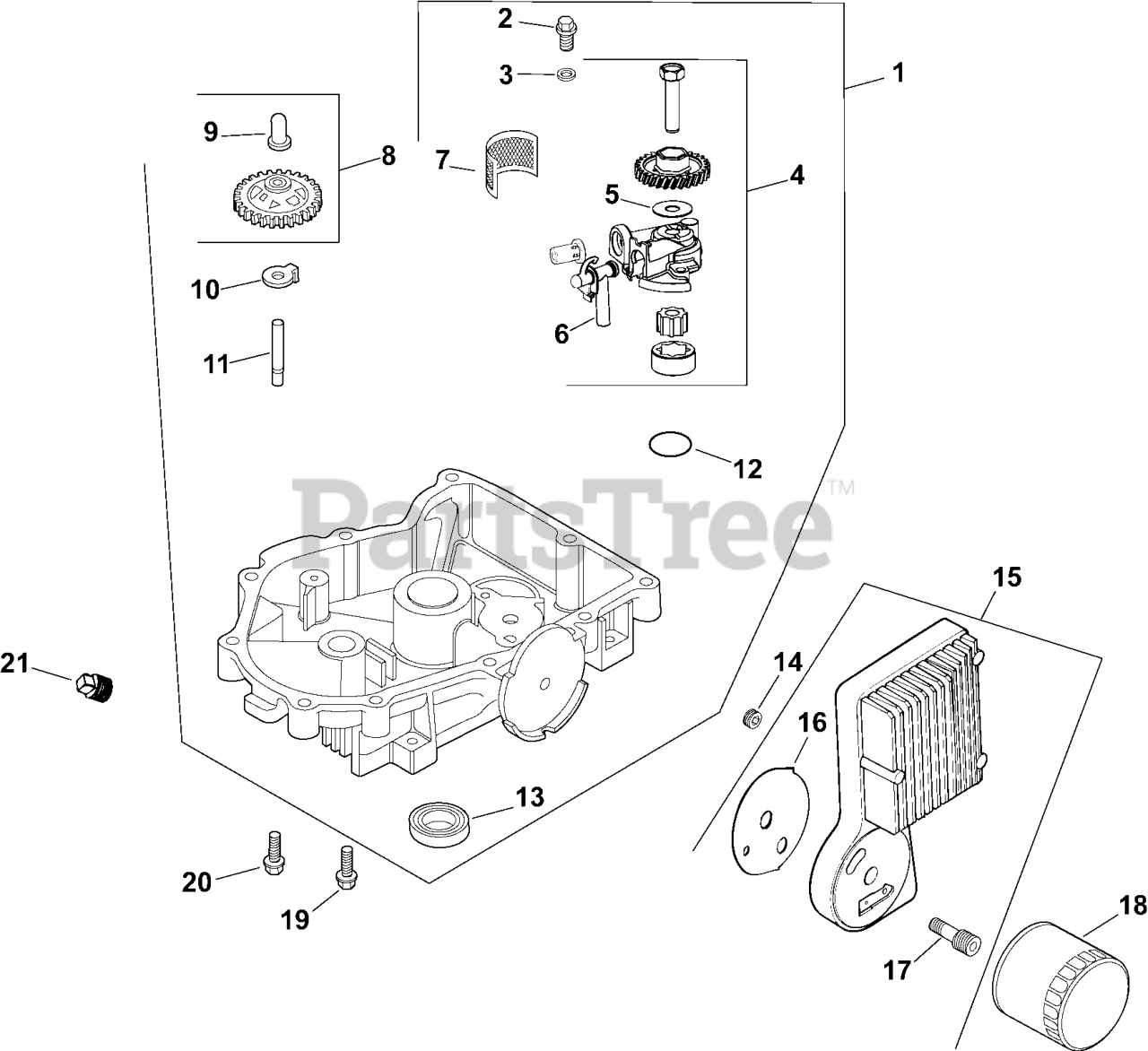

CV22-67512 - Kohler Command PRO Engine, Made for Ferris Industries, 23hp, 17.2kW Oil Pan/Lubrication 3-24-27 Parts Diagram

Command PRO Engine, Made for Ferris Industries, 23hp, 17.2kW

Oil Pan/Lubrication 3-24-27 Parts Diagram

  • Title

1

Kohler 24 199 07-S

PAN , OIL ASSEMBLY USE 24 199 32-S
(Superseded to 24 199 35-S)

Note: Includes 2-13

$337.99

$

In Stock, Qty 5

0

2

Kohler M-645025-S

SCREW,FLG THD FRM M6X1.0X25-(#25086395S)
(Superseded to 25 086 395-S)

$2.49

$

In Stock, Qty 12

0

3

Kohler M-631005-S

WASHER, FLAT 6 MM

$2.49

$

In Stock, Qty 8

0

4

Kohler 24 393 05-S

PUMP, OIL-DISCONTINUED

Note: Reference No. 24-327-02 stamped on housing. Use before Serial No.2417121727. (Includes 6)

$

$

Not available

4

Kohler 24 393 37-S

OIL PUMP ASSY KIT-USE 24 393 53-S
(Superseded to 24 393 53-S)

Note: Use after Serial No. 2417121737. (Includes 5,6)

$

$

Not available

5

Kohler 24 153 01-S

O-RING, OIL PICK-UP

$2.49

$

In Stock, only 3 left!

0

6

Kohler 24 381 11-S

KIT, OIL PICK-UP TUBE-(#DSC)

$

$

Not available

7

Kohler 24 162 26-S

SCREEN, OIL

$17.99

$

In Stock, only 1 left!

0

8

Kohler 24 043 12-S

KIT, GOVERNOR GEAR W/PIN

Note: Includes 9

$68.99

$

In Stock, only 1 left!

0

9

Kohler 12 380 01-S

PIN, GOVERNOR REGULATING

$3.49

$

In Stock, Qty 13

0

10

Kohler 52 448 02-S

USE 24 448 01-S LOCKING TAB
(Superseded to 24 448 01-S)

$2.49

$

In Stock, only 3 left!

0

11

Kohler 12 144 02-S

SHAFT, GOVERNOR GEAR

$4.49

$

In Stock, Qty 5

0

12

Kohler 24 153 08-S

O-RING

$6.49

$

Usually ships in 2-5 days

0

13

Kohler 52 032 08-S

SEAL, OIL (KM)-USE 25 032 06-S
(Superseded to 25 032 06-S)

$10.99

$

In Stock, Qty 20+

0

14

Kohler 25 139 62-S

PLUG, PIPE CTSK 3/8"

$3.49

$

In Stock, only 2 left!

0

15

Kohler 24 755 52-S

KIT, OIL COOLER

Note: (Includes 16,17)

$

$

Not available

16

Kohler 24 041 29-S

GASKET, OIL FILTER ADAPTER USE 24 041 88-S
(Superseded to 24 041 88-S)

$5.49

$

In Stock, only 1 left!

0

17

Kohler 24 136 05-S

NIPPLE, OIL FILTER
(Superseded to 24 136 08-S)

$12.99

$

In Stock, only 4 left!

0

18

Kohler 12 050 01-S

OIL FILTER

$13.99

$

In Stock, Qty 20+

0

19

Kohler 24 086 16-S

SCREW, HEX FLANGE -USE 24 086 17-S
(Superseded to 24 086 17-S)

$2.49

$

In Stock, Qty 19

0

20

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$2.49

$

In Stock, Qty 19

0

21

Kohler 25 139 57-S

PLUG, SQ HD PIPE 3/8"

$2.49

$

In Stock, Qty 13

0
