CV22-75512 - Kohler Command PRO Engine, Made for Snapper, 23hp, 17.2kW Fuel System 8-24-230 Parts Diagram

Command PRO Engine, Made for Snapper, 23hp, 17.2kW

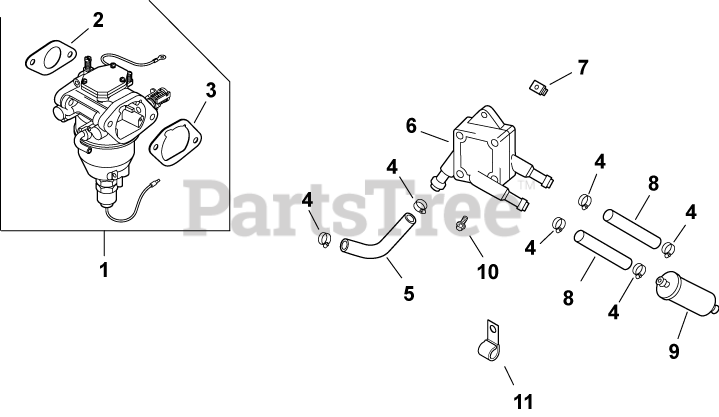

Fuel System 8-24-230 Parts Diagram

  • Title

1

Kohler 24 853 106-S

KIT, CARBURETOR W/GASKETS

$574.99

$

Usually ships in 2-5 days

0

2

Kohler 24 041 15-S

GASKET, CARBURETOR

$15.99

$

In Stock, only 2 left!

0

3

Kohler 24 041 14-S

GASKET, AIR CLEANER BASE

$3.49

$

In Stock, Qty 15

0

4

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$5.99

$

In Stock, only 2 left!

0

5

Kohler 24 353 12-S

LINE, FUEL 11"

$3.99

$

Usually ships in 2-5 days

0

6

Kohler 24 393 16-S

PUMP, FUEL

$32.99

$

In Stock, Qty 18

0

7

Kohler 24 100 01-S

NUT, PLASTIC (KM)-USE 25 100 37-S
(Superseded to 25 100 37-S)

$2.49

$

In Stock, only 4 left!

0

8

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 9

0

9

Kohler 25 050 22-S

FILTER,FUEL 51 MICRON (FUEL PUMP)

$12.99

$

In Stock, Qty 20+

0

10

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$2.49

$

Usually ships in 2-5 days

0

11

Kohler 47 154 01-S

CLIP, CABLE

$5.49

$

In Stock, only 2 left!

0

24755143-S

Kohler 24 755 143-S

KIT, HIGH ALTITUDE (4,000-8,000 FT)

Note: NOT ILLUSTRATED

$76.99

$

Usually ships in 2-5 days

0

2475736-S

Kohler 24 757 36-S

KIT, REPAIR SERVICE CHOKE

Note: NOT ILLUSTRATED

$134.99

$

In Stock, only 1 left!

0

2475738-S

Kohler 24 757 38-S

KIT, REPAIR SERVICE GASKET

Note: NOT ILLUSTRATED

$37.99

$

In Stock, only 2 left!

0

2475744-S

Kohler 24 757 44-S

KIT, REPAIR FLOAT

Note: NOT ILLUSTRATED

$108.99

$

In Stock, only 1 left!

0

2475745-S

Kohler 24 757 45-S

KIT, REPAIR SOLENOID VALVE

Note: NOT ILLUSTRATED

$283.99

$

Usually ships in 2-5 days

0

2475746-S

Kohler 24 757 46-S

KIT, CARBURETOR REPAIR

Note: NOT ILLUSTRATED

$157.99

$

In Stock, only 4 left!

0

2475756-S

Kohler 24 757 56-S

KIT, ACCELERATOR PUMP

Note: NOT ILLUSTRATED

$209.99

$

Usually ships in 2-5 days

0
