CV22-75518 - Kohler Command PRO Engine, Made for FHP, 23hp, 17.2kW Fuel System 8-24-259 checked 6/7/2007-hr Parts Diagram

Command PRO Engine, Made for FHP, 23hp, 17.2kW

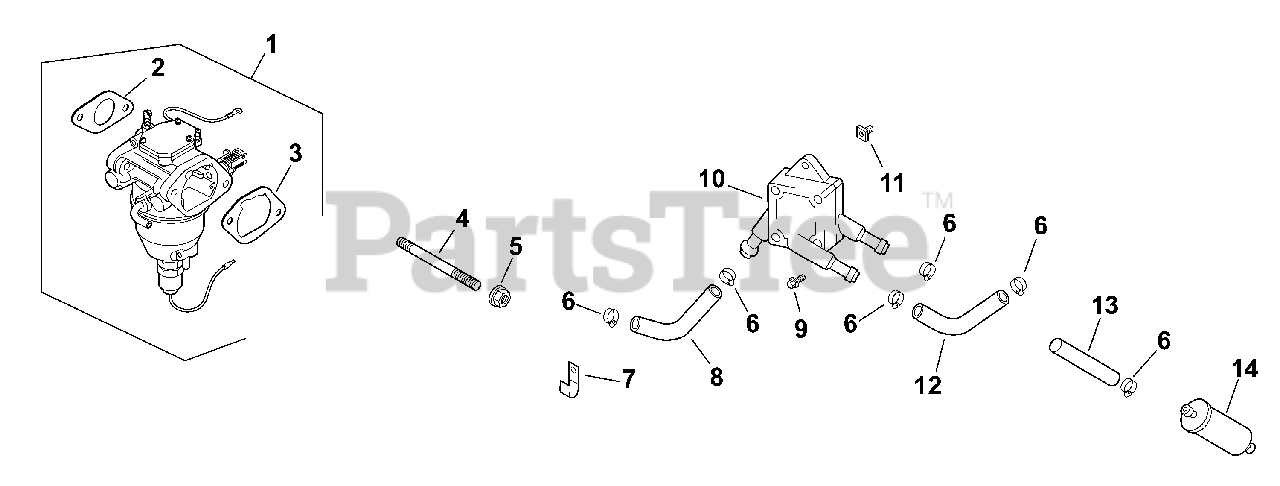

Fuel System 8-24-259 checked 6/7/2007-hr Parts Diagram

  • Title

1

Kohler 24 853 61-S

CARBURETOR KIT-USE 24 853 169-S
(Superseded to 24 853 303-S)

Note: (See Part Info for further service details)

$337.99

$

In Stock, only 2 left!

0

2

Kohler 24 041 15-S

GASKET, CARBURETOR

$15.99

$

In Stock, only 4 left!

0

3

Kohler 24 041 14-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 20+

0

4

Kohler M-629095-S

STUD,M6X1.0X96

$3.99

$

In Stock, only 2 left!

0

5

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 12

0

6

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$6.49

$

In Stock, Qty 16

0

7

Kohler 47 154 01-S

CLIP, CABLE

$5.49

$

In Stock, only 2 left!

0

8

Kohler 52 353 22-S

LINE, FLEXIBLE FUEL 12.3"-USE 25 111 81-
(Superseded to 25 111 81-S)

Note: (pump to carb)

$17.99

$

In Stock, Qty 20+

0

9

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$

$

Not available

10

Kohler 24 393 16-S

PUMP, FUEL

$32.99

$

In Stock, Qty 20+

0

11

Kohler 24 100 01-S

NUT, PLASTIC (KM)-USE 25 100 37-S
(Superseded to 25 100 37-S)

$2.49

$

In Stock, only 2 left!

0

12

Kohler 24 353 03-S

LINE, FLEXIBLE FUEL 10.92"-USE 24 353 12
(Superseded to 24 353 12-S)

Note: (pump to fitting)

$3.99

$

Usually ships in 2-5 days

0

13

Kohler 15 353 04-S

LINE - (#DSC)

Note: (pump to filter)

$

$

Not available

14

Kohler 24 050 02-S

USE 24 050 10-S FUEL FILTER
(Superseded to 24 050 13-S)

$12.99

$

In Stock, Qty 20+

0

2475736-S

Kohler 24 757 36-S

KIT, REPAIR SERVICE CHOKE

Note: NOT ILLUSTRATED

$144.99

$

In Stock, only 1 left!

0

2475738-S

Kohler 24 757 38-S

KIT, REPAIR SERVICE GASKET

Note: NOT ILLUSTRATED

$40.99

$

In Stock, Qty 6

0

2475744-S

Kohler 24 757 44-S

KIT, REPAIR FLOAT

Note: NOT ILLUSTRATED

$116.99

$

In Stock, only 1 left!

0

2475745-S

Kohler 24 757 45-S

KIT, REPAIR SOLENOID VALVE

Note: NOT ILLUSTRATED

$306.99

$

Usually ships in 2-5 days

0

2475746-S

Kohler 24 757 46-S

KIT, CARBURETOR REPAIR

Note: NOT ILLUSTRATED

$170.99

$

In Stock, Qty 7

0
