CV22-75594 - Kohler Command PRO Engine, Made for Castel Garden, 23hp, 17.2kW Blower Housing & Baffles 6-24-372 Parts Diagram

Command PRO Engine, Made for Castel Garden, 23hp, 17.2kW

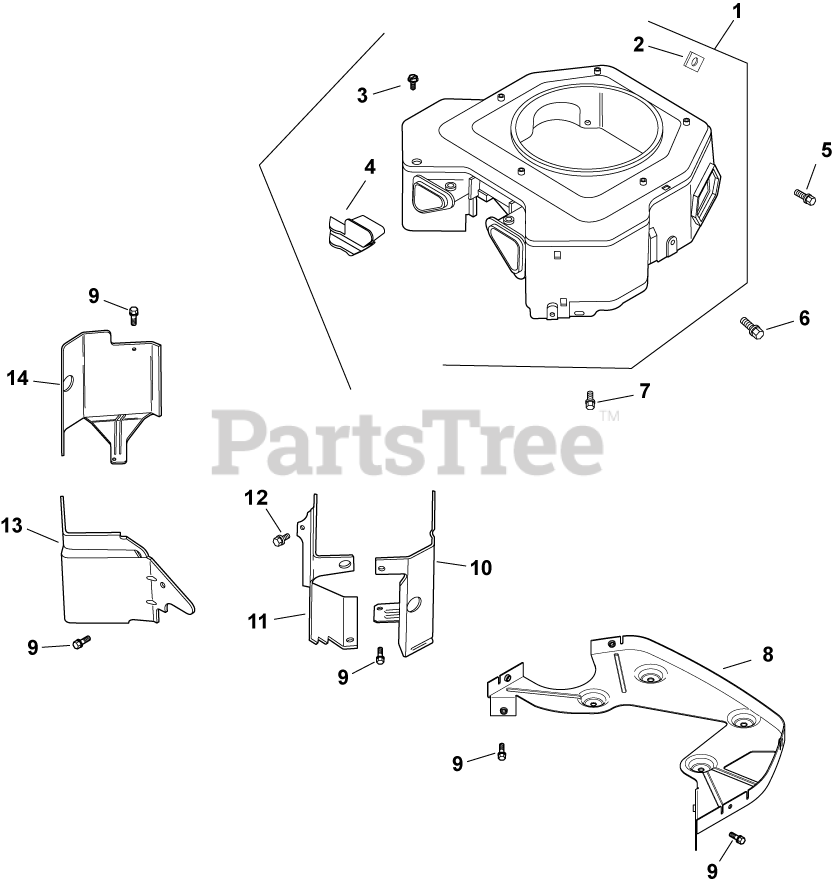

Blower Housing & Baffles 6-24-372 Parts Diagram

  • Title

1

Kohler 24 027 114-S

KIT, BLOWER HOUSING USE 24 027 451-S
(Superseded to 24 027 451-S)

Note: includes 2-4, 4102710-s

$69.99

$

In Stock, only 2 left!

0

2

Kohler 24 100 01-S

NUT, PLASTIC (KM)-USE 25 100 37-S
(Superseded to 25 100 37-S)

$2.49

$

In Stock, only 4 left!

0

3

Kohler 25 086 91-S

SCREW, WSH HD TAP #8-18X1/2"

$3.49

$

Usually ships in 2-5 days

0

4

Kohler 24 096 85-S

COVER, BLOWER HOUSING-USE 24 096 119-S
(Superseded to 24 096 161-S)

$2.49

$

In Stock, Qty 11

0

5

Kohler M-561016-S

SCREW - USE M-545016-S
(Superseded to M-545016-S)

$3.49

$

In Stock, only 3 left!

0

6

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$4.49

$

In Stock, only 2 left!

0

7

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.99

$

In Stock, Qty 20+

0

8

Kohler 24 146 52-S

PLATE, BACKING (OIL COOLER)-USE 24 146 5
(Superseded to 24 146 59-S)

$15.99

$

In Stock, only 1 left!

0

9

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$4.99

$

In Stock, Qty 9

0

10

Kohler 24 063 40-S

BAFFLE, CYL BARREL - #2 SIDE-DISC.

$

$

Not available

11

Kohler 24 063 69-S

BAFFLE, VALLEY #2 SIDE-USE 24 063 94-S
(Superseded to 24 063 94-S)

$9.49

$

Usually ships in 2-5 days

0

12

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, only 2 left!

0

13

Kohler 24 063 45-S

CYL BARREL #1 SIDE

$31.99

$

Usually ships in 2-5 days

0

14

Kohler 24 063 60-S

BAFFLE, VALLEY (CV)-USE 24 063 93-S
(Superseded to 24 063 93-S)

$6.49

$

In Stock, only 2 left!

0

2515411-S

Kohler 25 154 11-S

CLIP, REPAIR (SPEED NUT)

Note: NOT ILLUSTRATED

$3.99

$

In Stock, only 1 left!

0

4103710-S

Kohler 4103710-S

NAMEPLATE, SERVICE

Note: NOT ILLUSTRATED

$

$

Not available
