CV22-75599 - Kohler Command PRO Engine, Made for MTD/Cub Cadet, 23hp, 17.2kW Blower Housing & Baffles 6-24-351 Parts Diagram

Command PRO Engine, Made for MTD/Cub Cadet, 23hp, 17.2kW

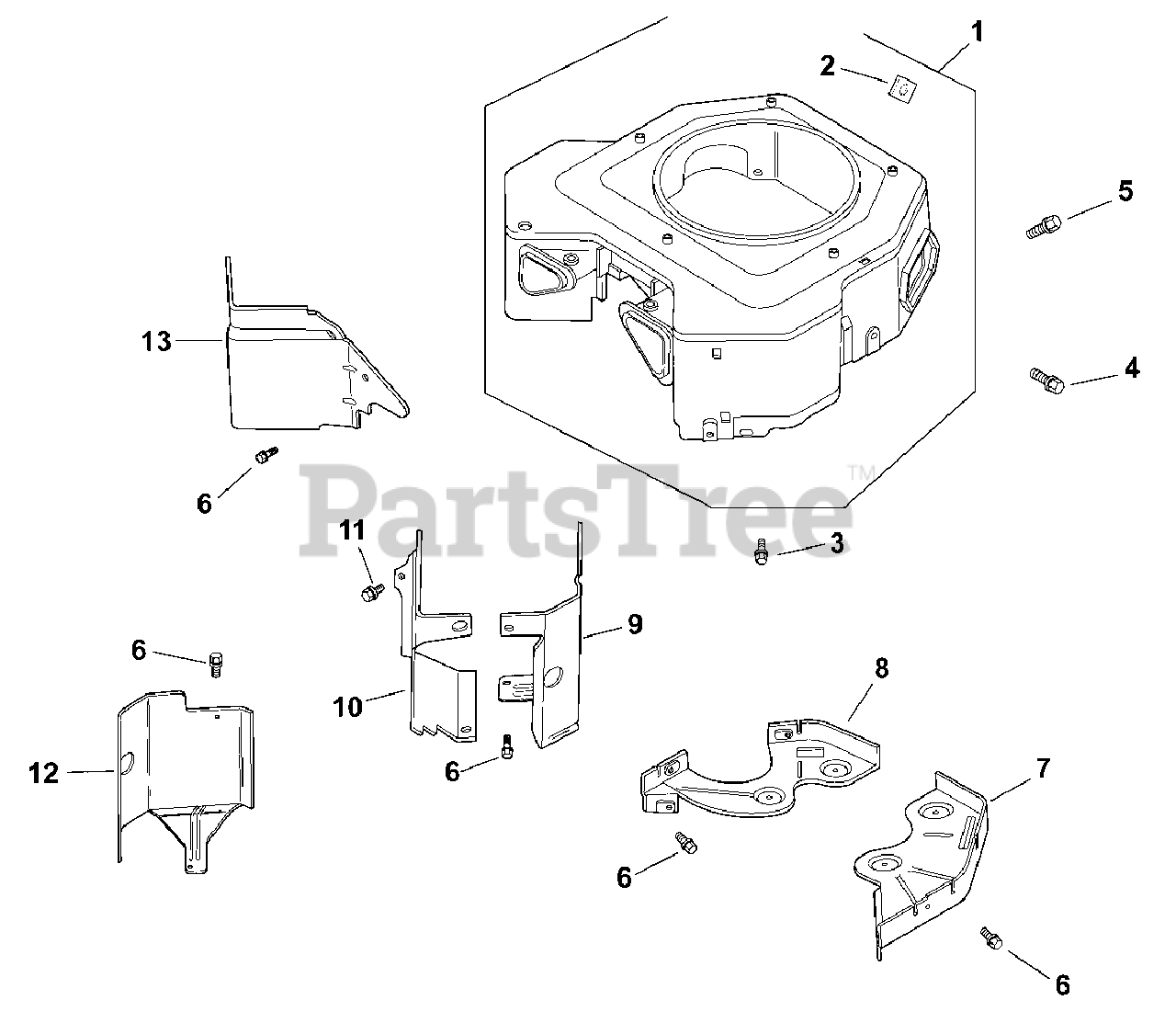

Blower Housing & Baffles 6-24-351 Parts Diagram

  • Title

1

Kohler 24 027 114-S

KIT, BLOWER HOUSING USE 24 027 451-S
(Superseded to 24 027 451-S)

Note: (Includes 2, 24 096 85-S, & 25 086 91-S)

$43.99

$

In Stock, only 1 left!

0

2

Kohler 24 100 01-S

NUT, PLASTIC (KM)-USE 25 100 37-S
(Superseded to 25 100 37-S)

$2.49

$

In Stock, only 3 left!

0

3

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 17

0

4

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$3.99

$

In Stock, Qty 13

0

5

Kohler M-551016-S

SCREW, HVY FLG M5X.8X16

$2.49

$

In Stock, only 1 left!

0

6

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 20+

0

7

Kohler 24 146 16-S

PLATE, BACKING - #2 SIDE-USE 24 146 59-S

$

$

Not available

8

Kohler 24 146 20-S

PLATE, BACKING - DISCONTINUED

$

$

Not available

9

Kohler 24 063 39-S

BAFFLE,VALLEY #2SIDE(KM)-USE 24 063 88-S
(Superseded to 24 063 88-S)

$28.99

$

In Stock, only 1 left!

0

10

Kohler 24 063 60-S

BAFFLE, VALLEY (CV)-USE 24 063 93-S
(Superseded to 24 063 93-S)

$6.49

$

In Stock, only 4 left!

0

11

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

$4.49

$

In Stock, Qty 13

0

12

Kohler 24 063 58-S

BAFFLE, RIGHT BARREL-USE 24 063 85-S
(Superseded to 24 063 85-S)

$17.99

$

In Stock, only 1 left!

0

13

Kohler 24 063 14-S

BAFFLE, VALLEY #2 SIDE-USE 24 063 94-S
(Superseded to 24 063 94-S)

$9.49

$

In Stock, only 2 left!

0

2409685-S

Kohler 24 096 85-S

COVER, BLOWER HOUSING-USE 24 096 119-S
(Superseded to 24 096 161-S)

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

2508691-S

Kohler 25 086 91-S

SCREW, WSH HD TAP #8-18X1/2"

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0
