CV224-3012 - Kohler Command PRO Engine, Made for Beijing Greenman, 11.0 ft-lbs, 224cc 05 Ignition/Charging Parts Diagram

Command PRO Engine, Made for Beijing Greenman, 11.0 ft-lbs, 224cc

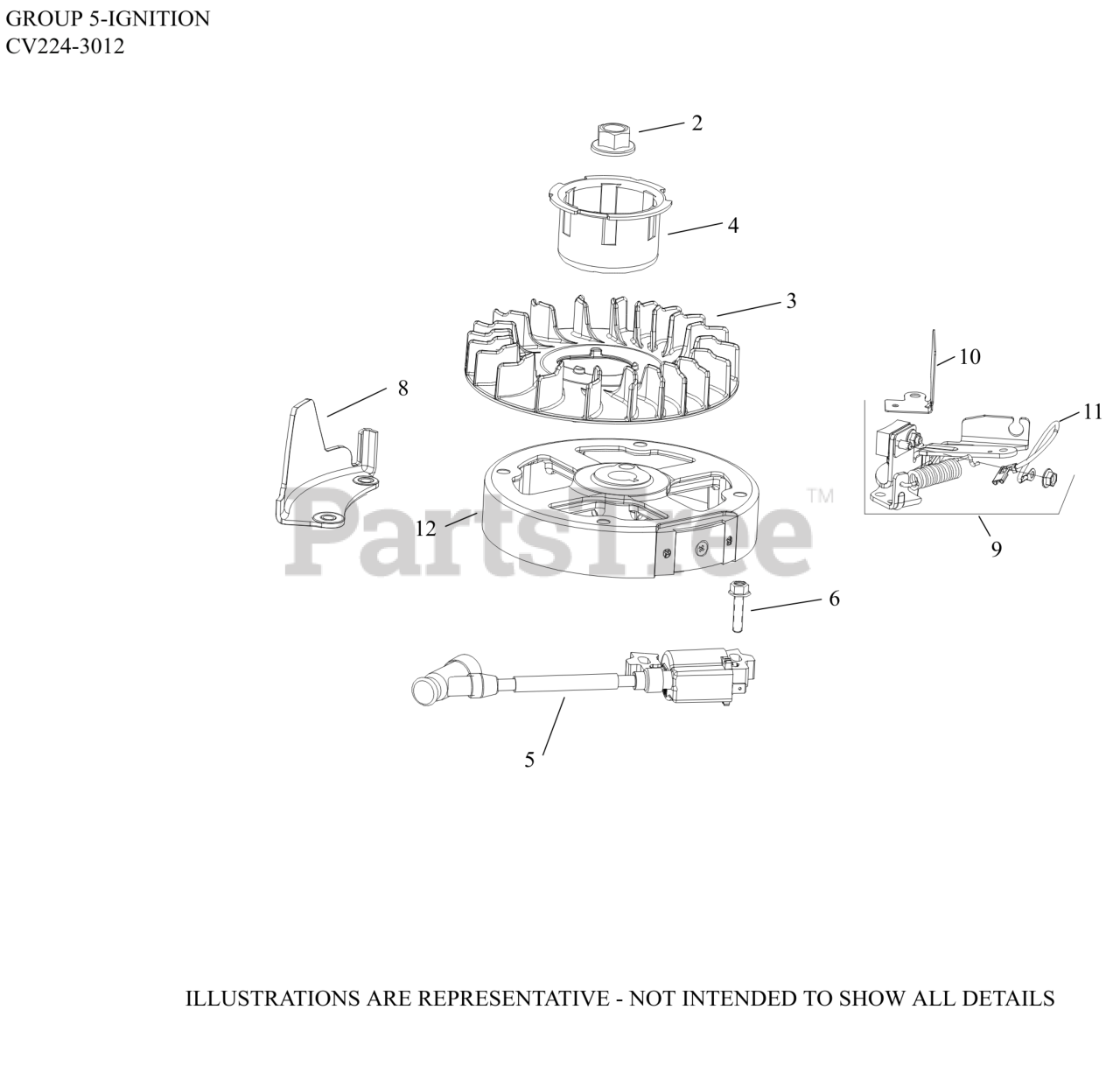

05 Ignition/Charging Parts Diagram

  • Title

2

Kohler 14 100 10-S

NUT, FLYWHEEL (W/SERRATIONS)

$5.49

$

Usually ships in 2-5 days

0

3

Kohler 17 157 06-S

FAN, FLYWHEEL

$10.99

$

In Stock, only 4 left!

0

4

Kohler 14 109 04-S

CUP, STARTER DRIVE

$13.99

$

Usually ships in 2-5 days

0

5

Kohler 14 584 04-S

MODULE IGN (#1458416S)
(Superseded to 14 584 16-S)

$54.99

$

In Stock, only 1 left!

0

6

Kohler 25 086 186-S

SCREW, M6 X 25-(#25086436S)
(Superseded to 25 086 436-S)

$2.49

$

Usually ships in 2-5 days

0

8

Kohler 14 314 25-S

GUARD, FINGER

$3.99

$

Usually ships in 2-5 days

0

9

Kohler 14 219 21-S

BRAKE ASSEMBLY

$23.99

$

In Stock, only 2 left!

0

10

Kohler 14 314 17-S

GUARD, BRAKE - USE 14 314 30-S
(Superseded to 14 314 30-S)

$

$

Not available

11

Kohler 14 518 29-S

LEAD, KILL (BRAKE TO IGN. MODULE)

$4.49

$

Usually ships in 2-5 days

0

12

Kohler 14 025 12-S

FLYWHEEL ASSEMBLY

$120.99

$

Usually ships in 2-5 days

0
