CV23-75589 - Kohler Command PRO Engine, Made for Dixie Chopper, 23hp, 17.2kW 05 Ignition/Charging Parts Diagram

Command PRO Engine, Made for Dixie Chopper, 23hp, 17.2kW

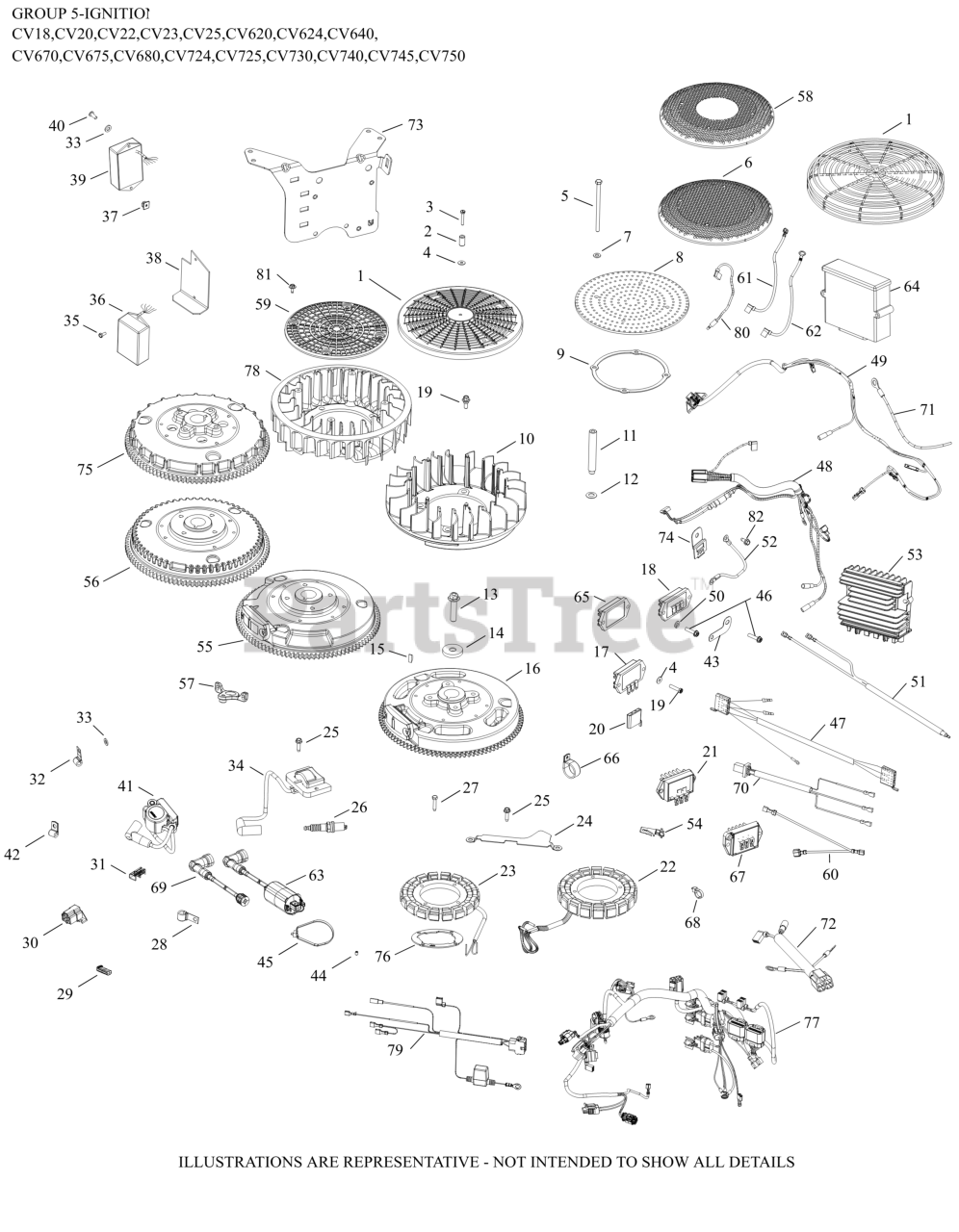

05 Ignition/Charging Parts Diagram

  • Title

5

Kohler M-603100-S

SCREW, CAP M6X1.0X99.5

$4.49

$

In Stock, Qty 19

0

6

Kohler 24 162 41-S

SCREEN, GRASS

$24.99

$

In Stock, Qty 5

0

7

Kohler X-25-53-S

WASHER, FLAT 1/4" (O.D. 5/8")

$3.49

$

In Stock, Qty 13

0

9

Kohler 25 141 08-S

RING, SUPPORT

$5.49

$

In Stock, Qty 11

0

10

Kohler 24 157 12-S

FAN

$22.99

$

In Stock, only 4 left!

0

11

Kohler 24 112 14-S

SPACER

$18.99

$

In Stock, Qty 14

0

12

Kohler 24 468 11-S

WASHER, SPRING 10 MM

$2.49

$

In Stock, Qty 13

0

13

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45-USE 25 086 361-S
(Superseded to 25 086 361-S)

$3.49

$

Usually ships in 2-5 days

0

14

Kohler 12 468 03-S

WASHER, FLAT 13/32"

$6.49

$

In Stock, only 1 left!

0

15

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 5

0

16

Kohler 24 025 55-S

FLYWHEEL

$

$

Not available

18

Kohler 25 403 37-S

REGULATOR/RECT 12/15A HALF-WAVE STD

$105.99

$

In Stock, Qty 7

0

20

Kohler 25 155 41-S

CONNECTOR

$7.99

$

In Stock, Qty 12

0

23

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

$149.99

$

In Stock, Qty 16

0

25

Kohler 25 086 472-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 1 left!

0

26

Kohler 25 132 14-S

SPARK PLUG, RFI

$14.99

$

Usually ships in 2-5 days

0

27

Kohler 25 086 402-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 2 left!

0

28

Kohler 235173-S

CLIP, CABLE

$11.99

$

Usually ships in 2-5 days

0

33

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

In Stock, only 4 left!

0

34

Kohler 25 584 05-S

MODULE, EMC/RFI COMPLIANT
(Superseded to 25 584 31-S)

$49.99

$

In Stock, only 2 left!

0

42

Kohler 210281-S

CLIP

$7.49

$

Usually ships in 2-5 days

0

44

Kohler 25 086 43-S

SCREW, SKT SET #10-24X1/4"

$2.49

$

Usually ships in 2-5 days

0

45

Kohler 25 454 07-S

TIE

$2.49

$

Usually ships in 2-5 days

0

46

Kohler 25 086 157-S

SCREW, HEX FLANGE HI-LO

$2.49

$

In Stock, Qty 5

0

48

Kohler 24 176 40-S

HARNESS, WIRING

$

$

Not available

50

Kohler 25 468 30-S

WASHER, LOCK

$2.49

$

Usually ships in 2-5 days

0

52

Kohler 24 518 43-S

LEAD

$2.99

$

In Stock, only 1 left!

0

68

Kohler 25 454 04-S

TIE

$3.49

$

Usually ships in 2-5 days

0

71

Kohler 25 123 05-S

TUBE,RFI FLEXIBLE SLEEVE(219mm)

$23.99

$

Usually ships in 2-5 days

0
