CV23S-75592 - Kohler Command PRO Engine, Made for Cub Cadet, 23hp, 17.2kW Oil Pan and Lubrication Parts Diagram

Command PRO Engine, Made for Cub Cadet, 23hp, 17.2kW

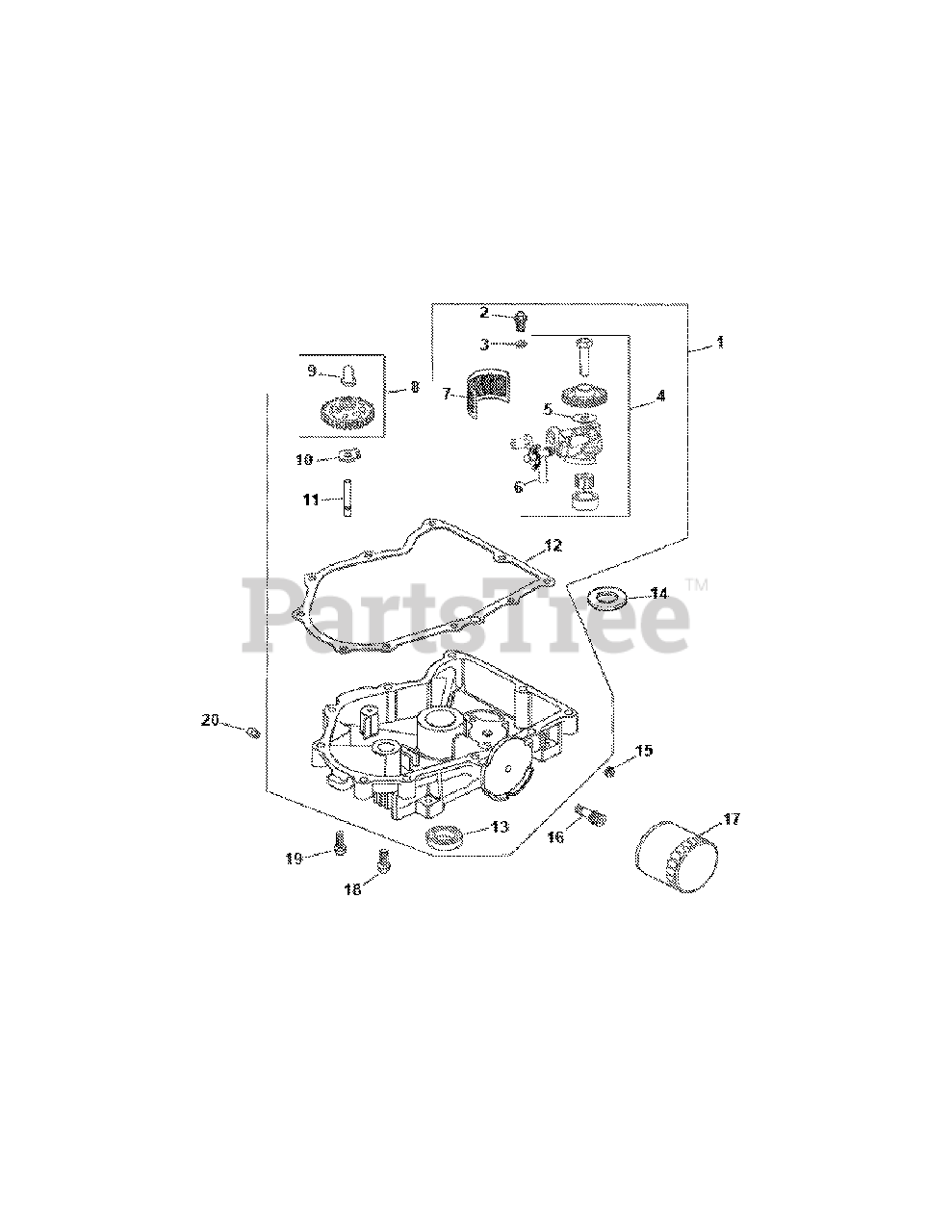

Oil Pan and Lubrication Parts Diagram

  • Title

1

Cub Cadet KH-24-199-21-S

Oil Pan w/Gasket Kit
(Superseded to KH-24-199-35-S)

$337.99

$

In Stock, only 1 left!

0

2

Cub Cadet KH-M-645025-S

Screw
(Superseded to KH-25-086-395-S)

$3.49

$

In Stock, Qty 16

0

3

Cub Cadet KH-M-631005

Washer

$

$

Not available

4

Cub Cadet KH-24-393-37-S

Oil Pump Kit
(Superseded to KH-24-393-53-S)

$

$

Not available

5

Cub Cadet KH-24-153-01

O-Ring

$

$

Not available

6

Cub Cadet KH-24-381-11-S

Oil Pickup Tube

$

$

Not available

7

Cub Cadet KH-24-162-26-S

Oil Screen

$18.99

$

In Stock, only 3 left!

0

8

Cub Cadet KH-24-043-12

Governor Gear w/Pin Kit

$

$

Not available

9

Cub Cadet KH-12-380-01

Pin

$

$

Not available

10

Cub Cadet KH-24-448-02-S

Locking Tab

$2.49

$

In Stock, Qty 20+

0

11

Cub Cadet KH-12-144-02

Governor Gear Shaft

$

$

Not available

12

Cub Cadet KH-24-041-54-S

Oil Pan Gasket
(Superseded to KH-24-041-66-S)

$25.99

$

In Stock, Qty 20+

0

13

Cub Cadet KH-52-032-08-S

Seal
(Superseded to KH-25-032-06-S)

$13.99

$

In Stock, Qty 20+

0

14

Cub Cadet KH-24-422-03-S

Thrust Shim

$

$

Not available

15

Cub Cadet KH-25-139-62-S

Pipe Plug

$3.49

$

In Stock, only 2 left!

0

16

Cub Cadet KH-24-136-01

Oil Filter Nipple
(Superseded to KH-24-136-09-S)

$7.49

$

Usually ships in 3-6 days

0

17

Cub Cadet KH-12-050-08

Oil Filter
(Superseded to KH-12-050-01-S)

$13.99

$

In Stock, Qty 20+

0

18

Cub Cadet KH-24-086-17-S

Hex Flange Screw

$3.49

$

In Stock, Qty 20+

0

19

Cub Cadet KH-24-086-16-S

Hex Flange Screw (M6 x 1.0 x 25)
(Superseded to KH-24-086-17-S)

$3.49

$

In Stock, Qty 20+

0

20

Cub Cadet KH-52-139-02

Plug

$

$

Not available
