CV25-69511 - Kohler Command PRO Engine, Made for Electrolux Home Products, 25hp, 18.61kW Fuel System (Cont.) 8-24-104 (TP-2461) Rev 10/12/2006 Parts Diagram

Command PRO Engine, Made for Electrolux Home Products, 25hp, 18.61kW

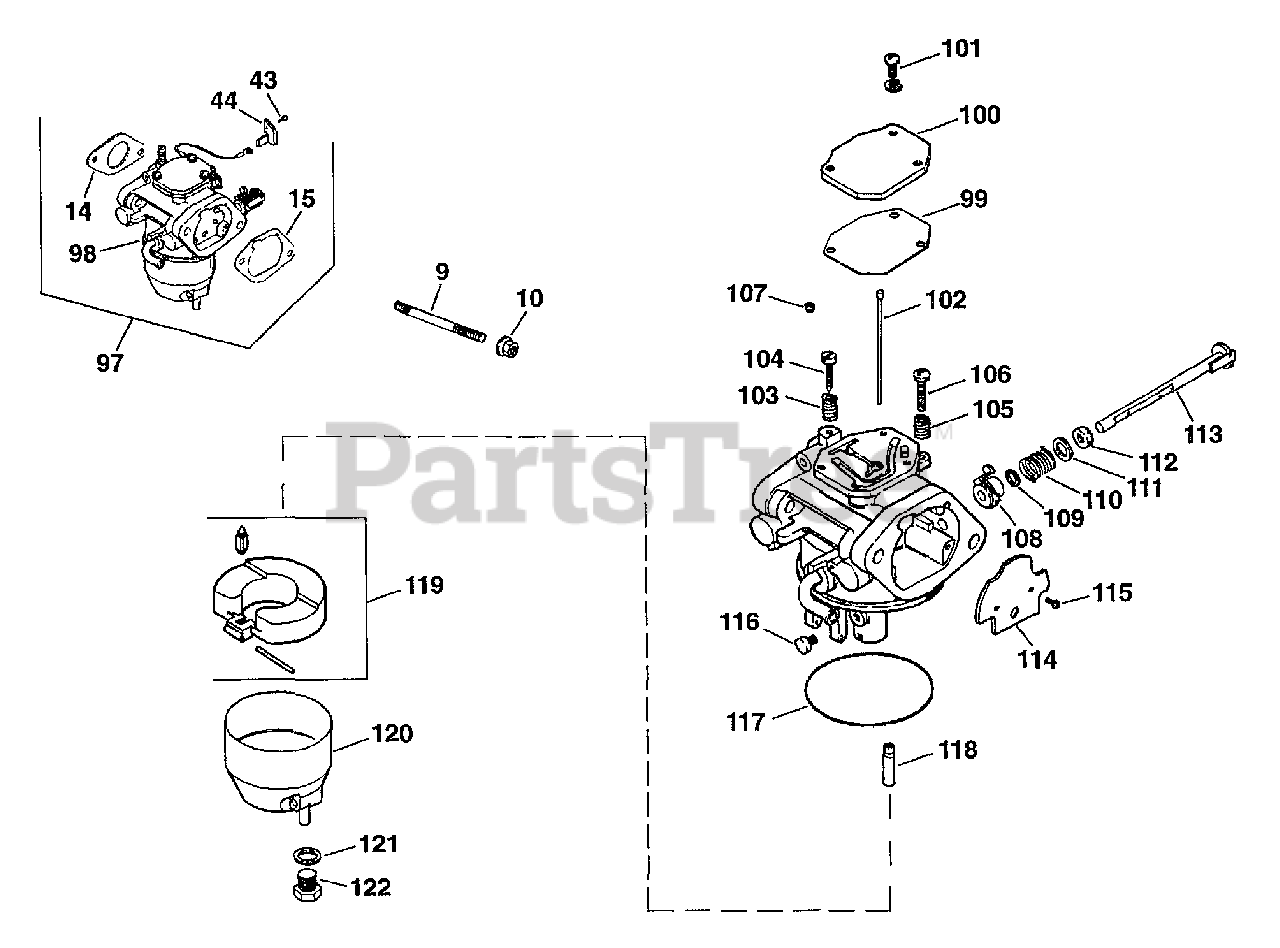

Fuel System (Cont.) 8-24-104 (TP-2461) Rev 10/12/2006 Parts Diagram

  • Title

9

Kohler M-0629105

Stud, M6x1.0x105

$

$

Not available

10

Kohler M-0641060

NUT - USE M-641060
(Superseded to M-641060)

$4.49

$

In Stock, Qty 10

0

14

Kohler 24 041 15-S

GASKET, CARBURETOR

$15.99

$

In Stock, only 1 left!

0

15

Kohler 24 041 14-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 13

0

43

Kohler 24 126 53-S

DISCONTINUED

$

$

Not available

44

Kohler M-0259006

Screw, phillips hd. M2x0.45x6

$0.99

$

Usually ships in 2-5 days

0

97

Kohler 24 853 27-S

KIT, CARBURETOR W/GASKET-NIKF

Note: Includes 14,15,43,44, carburetor assembly 24-053-27

$

$

Not available

98

Kohler 24 053 27

USE 24 853 27

Note: Includes 100-123, carburetor repair kit 24-757-06, high altitude kits 24-755-29 & 24-755-30

$

$

Not available

99

Kohler 24 041 18

KIT - USE 24 757 20
(Superseded to 24 757 20)

$61.99

$

Usually ships in 2-5 days

0

100

Kohler 24 096 13-S

COVER, PASSAGE - DISCONTINUED

$

$

Not available

101

Kohler 24 086 21-S

SCREW DISCONTINUED

$

$

Not available

102

Kohler 24 337

Jet, slow

$

$

Not available

103

Kohler 24 089 23

KIT - USE 24 757 18
(Superseded to 24 757 18)

$77.99

$

In Stock, Qty 10

0

104

Kohler 24 086 22

SCREW, IDLE ADJUST - USE 24 757 18
(Superseded to 24 757 18-S)

$77.99

$

In Stock, Qty 10

0

105

Kohler 24 089 24-S

SPRING, THROTTLE - DISC

$

$

Not available

106

Kohler 24 086 19

KIT - USE 24 757 18
(Superseded to 24 757 18)

$77.99

$

In Stock, Qty 10

0

107

Kohler 24 337

Jet, air bleed

$

$

Not available

108

Kohler 24 090 10-S

USE 24 757 19-S KIT
(Superseded to 24 757 19-S)

$150.99

$

In Stock, only 1 left!

0

109

Kohler 24 141 04-S

RING, CHOKE LEVER-USE 24 757 19-S
(Superseded to 24 757 19-S)

$150.99

$

In Stock, only 1 left!

0

110

Kohler 24 089 22-S

USE 24 757 19-S KIT
(Superseded to 24 757 19-S)

$150.99

$

In Stock, only 1 left!

0

111

Kohler 24 241 01-S

COLLAR, CHOKE-USE 24 757 19-S
(Superseded to 24 757 19-S)

$150.99

$

In Stock, only 1 left!

0

112

Kohler 24 468 05-S

WASHER-USE 24 757 19-S
(Superseded to 24 757 19-S)

$150.99

$

In Stock, only 1 left!

0

113

Kohler 24 144 15-S

SHAFT, CHOKE-USE 24 757 19-S
(Superseded to 24 757 19-S)

$150.99

$

In Stock, only 1 left!

0

114

Kohler 24 146 13-S

PLATE, CHOKE-USE 24 757 19-S
(Superseded to 24 757 19-S)

$150.99

$

In Stock, only 1 left!

0

115

Kohler 24 086 20

SCREW - DISCONTINUED

Note: M3x0.5x4.5 (4)

$

$

Not available

116

Kohler 24 337

Jet, main

$

$

Not available

117

Kohler 24 041 19

KIT - USE 24 757 20
(Superseded to 24 757 20)

$61.99

$

Usually ships in 2-5 days

0

118

Kohler 24 369 01-S

NOZZLE DISCONTINUED

$

$

Not available

119

Kohler 24 757 05

KIT - USE 24 757 18
(Superseded to 24 757 18)

$77.99

$

In Stock, Qty 10

0

120

Kohler 24 234 01-S

CHAMBER, FLOAT

$41.99

$

Usually ships in 2-5 days

0

121

Kohler 24 041 21-S

DISC. SEE PARTS BULLETIN

$

$

Not available

122

Kohler 24 086 24-S

SCREW, CHAMBER SET - DISC.

$

$

Not available
