CV25-69519 - Kohler Command PRO Engine, Made for Las Tec, 25hp, 18.61kW Fuel System 8-24-116 Parts Diagram

Command PRO Engine, Made for Las Tec, 25hp, 18.61kW

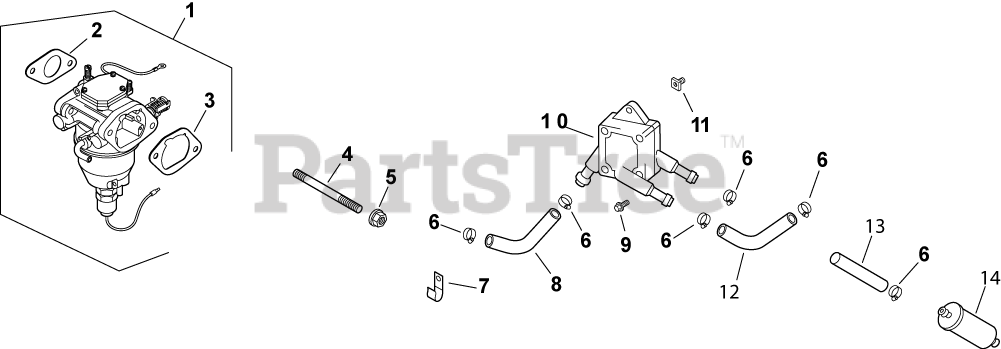

Fuel System 8-24-116 Parts Diagram

  • Title

1

Kohler 24 853 36-S

KIT, CARBURETOR W/GASKET

Note: (includes 2, 3)

$

$

Not available

2

Kohler 24 041 15-S

GASKET, CARBURETOR

$15.99

$

In Stock, only 2 left!

0

3

Kohler 24 041 14-S

GASKET, AIR CLEANER BASE

$3.49

$

In Stock, Qty 15

0

4

Kohler M-629128-S

STUD,M6X1.0X128

$13.99

$

In Stock, only 2 left!

0

5

Kohler M-641060-S

NUT, FLG M6X1.0

$4.99

$

In Stock, Qty 6

0

6

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$5.49

$

In Stock, only 3 left!

0

7

Kohler 47 154 01-S

CLIP, CABLE

$5.49

$

In Stock, only 2 left!

0

8

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 7

0

9

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$2.49

$

Usually ships in 2-5 days

0

10

Kohler 24 393 16-S

PUMP, FUEL

$32.99

$

In Stock, Qty 5

0

11

Kohler 24 100 01-S

NUT, PLASTIC (KM)-USE 25 100 37-S
(Superseded to 25 100 37-S)

$2.49

$

In Stock, only 4 left!

0

12

Kohler 25 353 03-S

LINE, FLEXIBLE FUEL

$19.99

$

Usually ships in 2-5 days

0

13

Kohler 24 353 12-S

LINE, FUEL 11"

$3.99

$

Usually ships in 2-5 days

0

14

Kohler 25 050 22-S

FILTER,FUEL 51 MICRON (FUEL PUMP)

$12.99

$

In Stock, Qty 20+

0

2423402-S

Kohler 24 234 02-S

BOWL, FLOAT

Note: NOT ILLUSTRATED

$203.99

$

Usually ships in 2-5 days

0

2475708-S

Kohler 24 757 08-S

KIT, REPAIR ACC PUMP

Note: NOT ILLUSTRATED

$97.99

$

In Stock, only 4 left!

0

2475719-S

Kohler 24 757 19-S

KIT, REPAIR SERVICE CHOKE

Note: NOT ILLUSTRATED

$202.99

$

In Stock, only 1 left!

0

2475720-S

Kohler 24 757 20-S

KIT, REPAIR SERVICE GASKET

Note: NOT ILLUSTRATED

$71.99

$

In Stock, only 2 left!

0

2475721-S

Kohler 24 757 21-S

KIT, ACC PUMP W/GASKETS

Note: NOT ILLUSTRATED

$147.99

$

In Stock, Qty 5

0

2475722-S

Kohler 24 757 22-S

KIT, REPAIR SOLENOID VALVE

Note: NOT ILLUSTRATED

$250.99

$

In Stock, only 1 left!

0
