CV25-69543 - Kohler Command PRO Engine, Made for Electrolux Home Products, 25hp, 18.61kW Fuel System 8-24-369 Parts Diagram

Command PRO Engine, Made for Electrolux Home Products, 25hp, 18.61kW

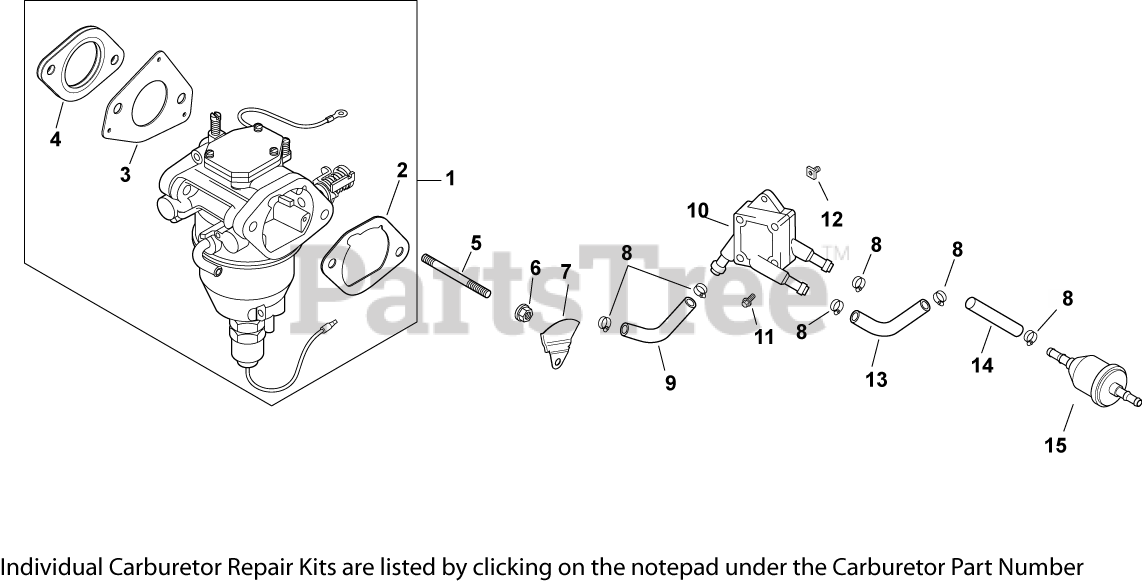

Fuel System 8-24-369 Parts Diagram

  • Title

1

Kohler 24 853 81-S

KIT, CARBURETOR W/GASKETS

Note: (includes 2-4)

$899.99

$

Usually ships in 2-5 days

0

2

Kohler 24 041 14-S

GASKET, AIR CLEANER BASE

$3.49

$

In Stock, Qty 15

0

3

Kohler 24 041 52-S

GASKET, CARBURETOR
(Superseded to 24 041 91-S)

$5.49

$

In Stock, Qty 6

0

4

Kohler 24 041 15-S

GASKET, CARBURETOR

$15.99

$

In Stock, only 2 left!

0

5

Kohler M-629095-S

STUD,M6X1.0X96

$4.99

$

In Stock, only 2 left!

0

6

Kohler M-641060-S

NUT, FLG M6X1.0

$4.99

$

In Stock, Qty 6

0

7

Kohler 24 063 51-S

BAFFLE, SPIT-BACK CUP-USE 24 063 105-S
(Superseded to 24 063 105-S)

$8.99

$

In Stock, only 2 left!

0

8

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$5.99

$

In Stock, only 2 left!

0

9

Kohler 25 353 03-S

LINE, FLEXIBLE FUEL

$19.99

$

Usually ships in 2-5 days

0

10

Kohler 24 393 16-S

PUMP, FUEL

$32.99

$

In Stock, Qty 18

0

11

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$2.49

$

Usually ships in 2-5 days

0

12

Kohler 25 100 37-S

NUT, PLASTIC - BLACK

$2.49

$

In Stock, only 4 left!

0

13

Kohler 24 353 12-S

LINE, FUEL 11"

$3.99

$

Usually ships in 2-5 days

0

14

Kohler 15 353 04-S

LINE - (#DSC)

$

$

Not available

15

Kohler 25 050 22-S

FILTER,FUEL 51 MICRON (FUEL PUMP)

$12.99

$

In Stock, Qty 20+

0
