CV25-69546 - Kohler Command PRO Engine, Made for Husqvarna, 25hp, 18.61kW Fuel System 8-24-148 Parts Diagram

Command PRO Engine, Made for Husqvarna, 25hp, 18.61kW

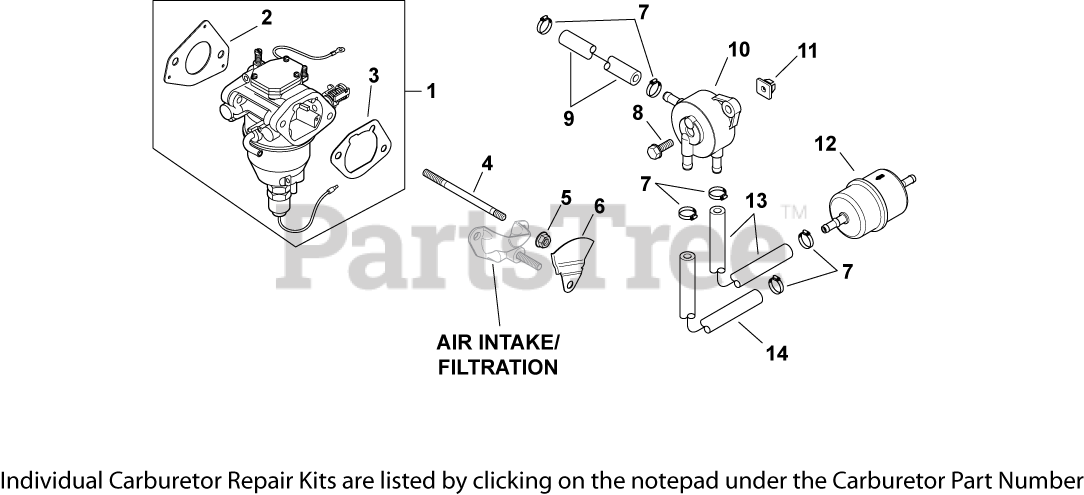

Fuel System 8-24-148 Parts Diagram

  • Title

1

Kohler 24 853 81-S

KIT, CARBURETOR W/GASKETS

Note: (incldues 2, 3)

$592.99

$

Usually ships in 2-5 days

0

2

Kohler 24 041 15-S

GASKET, CARBURETOR

$15.99

$

In Stock, only 1 left!

0

3

Kohler 24 041 14-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 13

0

4

Kohler M-629105-S

STUD, M6X1.0X106 - (#2507225S)
(Superseded to 25 072 25-S)

Note: (Before S/N 3009000011)

$14.99

$

In Stock, only 2 left!

0

M-629095-S

Kohler M-629095-S

STUD,M6X1.0X96

Note: (After S/N 300900001)

$3.99

$

In Stock, only 1 left!

0

5

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 9

0

6

Kohler 24 063 51-S

BAFFLE, SPIT-BACK CUP-USE 24 063 105-S
(Superseded to 24 063 105-S)

$8.99

$

Usually ships in 2-5 days

0

7

Kohler X-426-9-S

CLAMP, HOSE 1/2" USE 25 237 14-S
(Superseded to 25 237 14-S)

Note: (Before S/N 3016100011)

$4.99

$

In Stock, Qty 7

0

2523714-S

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

Note: (After S/N 3016100001)

$4.99

$

In Stock, Qty 7

0

8

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$

$

Not available

9

Kohler 25 353 03-S

LINE, FLEXIBLE FUEL

Note: (Before S/N 3533500011)

$19.99

$

Usually ships in 2-5 days

0

2511134-S

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

Note: (After S/N 3533500001)

$17.99

$

In Stock, only 2 left!

0

10

Kohler 24 393 16-S

PUMP, FUEL

$32.99

$

In Stock, Qty 20+

0

11

Kohler 24 100 01-S

NUT, PLASTIC (KM)-USE 25 100 37-S
(Superseded to 25 100 37-S)

Note: (Before S/N 3801500011)

$2.49

$

In Stock, only 3 left!

0

2510037-S

Kohler 25 100 37-S

NUT, PLASTIC - BLACK

Note: (After S/N 3801500001)

$2.49

$

In Stock, only 3 left!

0

12

Kohler 24 050 02-S

USE 24 050 10-S FUEL FILTER
(Superseded to 24 050 13-S)

Note: (Before S/N 3333800011)

$12.99

$

In Stock, Qty 20+

0

2405010-S

Kohler 24 050 10-S

FILTER, FUEL (9-12 MICRON)-USE 24 050 13
(Superseded to 24 050 13-S)

Note: (After S/N 3333800001 & 3800700011)

$12.99

$

In Stock, Qty 20+

0

2405013-S

Kohler 24 050 13-S

FILTER, FUEL

Note: (After S/N 3800700001)

$12.99

$

In Stock, Qty 20+

0

13

Kohler 25 353 15-S

LINE FLEXBLE FUEL (3.5" x.25") -USE 25 1
(Superseded to 25 111 81-S)

Note: (Before S/N 3533500011)

$17.99

$

In Stock, only 2 left!

0

2511134-S

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

Note: (After S/N 3533500001)

$17.99

$

In Stock, only 2 left!

0

14

Kohler 24 353 03-S

LINE, FLEXIBLE FUEL 10.92"-USE 24 353 12
(Superseded to 24 353 12-S)

Note: (Before S/N 3417400011)

$3.99

$

Usually ships in 2-5 days

0

2435312-S

Kohler 24 353 12-S

LINE, FUEL 11"

Note: (After S/N 3417400001)

$3.99

$

Usually ships in 2-5 days

0
