CV25-69546 - Kohler Command PRO Engine, Made for Husqvarna, 25hp, 18.61kW Fuel System 8-24-373 Parts Diagram

Command PRO Engine, Made for Husqvarna, 25hp, 18.61kW

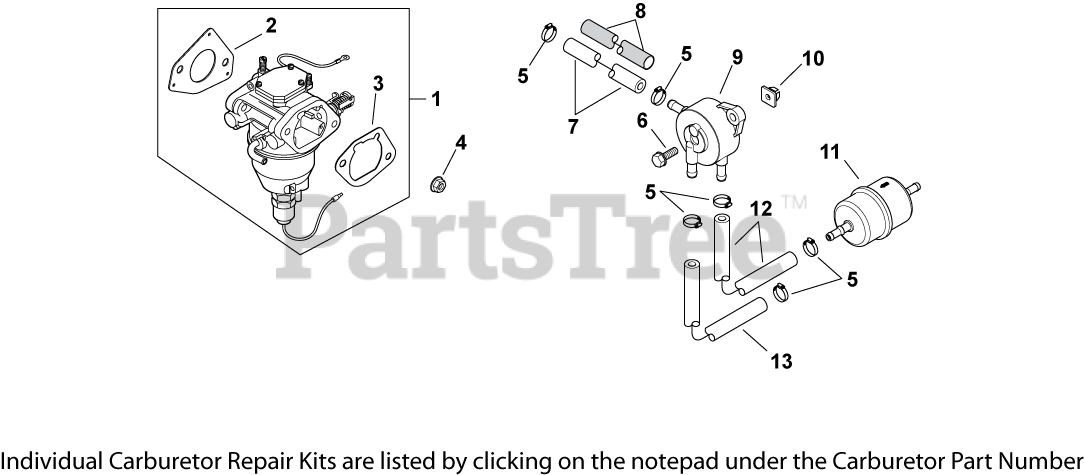

Fuel System 8-24-373 Parts Diagram

  • Title

1

Kohler 24 853 26-S

KIT, CARBURETOR W/GASKET-NIKF

Note: (includes 2, 3) ( Before S/N 3214300011)

$808.99

$

Usually ships in 2-5 days

0

2485392-S

Kohler 24 853 92-S

KIT, CARBURETOR w/GASKETS
(Superseded to 24 853 317-S)

Note: (includes 2,3) (After S/N 3214300001)

$614.99

$

Usually ships in 2-5 days

0

2

Kohler 24 041 15-S

GASKET, CARBURETOR

$15.99

$

In Stock, only 2 left!

0

3

Kohler 24 041 14-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 20+

0

4

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 17

0

5

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, Qty 6

0

6

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$

$

Not available

7

Kohler 52 353 22-S

LINE, FLEXIBLE FUEL 12.3"-USE 25 111 81-
(Superseded to 25 111 81-S)

Note: (Before S/N 3533500001)

$17.99

$

In Stock, Qty 9

0

2511134-S

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

Note: (After S/N 3533500001)

$17.99

$

In Stock, Qty 9

0

8

Kohler 24 431 01-S

SLEEVE,INSULATING 6.0"-USE 24 431 02-S
(Superseded to 24 431 02-S)

Note: (Before S/N 3610600011)

$5.99

$

Usually ships in 2-5 days

0

2443102-S

Kohler 24 431 02-S

SLEEVE, INSULATING 14"

Note: (After S/N 3610600001)

$5.99

$

Usually ships in 2-5 days

0

9

Kohler 24 393 16-S

PUMP, FUEL

$32.99

$

In Stock, Qty 20+

0

10

Kohler 24 100 01-S

NUT, PLASTIC (KM)-USE 25 100 37-S
(Superseded to 25 100 37-S)

Note: (Before S/N 3801500011)

$2.49

$

In Stock, only 3 left!

0

2510037-S

Kohler 25 100 37-S

NUT, PLASTIC - BLACK

Note: (After S/N 3801500001)

$2.49

$

In Stock, only 3 left!

0

11

Kohler 24 050 02-S

USE 24 050 10-S FUEL FILTER
(Superseded to 24 050 13-S)

Note: (Before S/N 3333800011)

$12.99

$

In Stock, Qty 20+

0

2405010-S

Kohler 24 050 10-S

FILTER, FUEL (9-12 MICRON)-USE 24 050 13
(Superseded to 24 050 13-S)

Note: (After S/N 3333800001 & Before S/N 3800700011)

$12.99

$

In Stock, Qty 20+

0

2405013-S

Kohler 24 050 13-S

FILTER, FUEL

Note: (After S/N 3800700001)

$12.99

$

In Stock, Qty 20+

0

12

Kohler 25 353 15-S

LINE FLEXBLE FUEL (3.5" x.25") -USE 25 1
(Superseded to 25 111 81-S)

Note: (Before S/N 3533500011)

$17.99

$

In Stock, Qty 9

0

2511134-S

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

Note: (After S/N 3533500001)

$17.99

$

In Stock, Qty 9

0

13

Kohler 24 353 03-S

LINE, FLEXIBLE FUEL 10.92"-USE 24 353 12
(Superseded to 24 353 12-S)

Note: (Before S/N 3417400011)

$3.99

$

Usually ships in 2-5 days

0

2435312-S

Kohler 24 353 12-S

LINE, FUEL 11"

Note: (After S/N 3417400001)

$3.99

$

Usually ships in 2-5 days

0

2443102-S

Kohler 24 431 02-S

SLEEVE, INSULATING 14"

Note: NOT ILLUSTRATED

$5.99

$

Usually ships in 2-5 days

0
