CV620-0010 - Kohler Command PRO Engine, Made for Finmotor, 19hp, 14.2kW Oil Pan/Lubrication 3-24-512 Parts Diagram

Command PRO Engine, Made for Finmotor, 19hp, 14.2kW

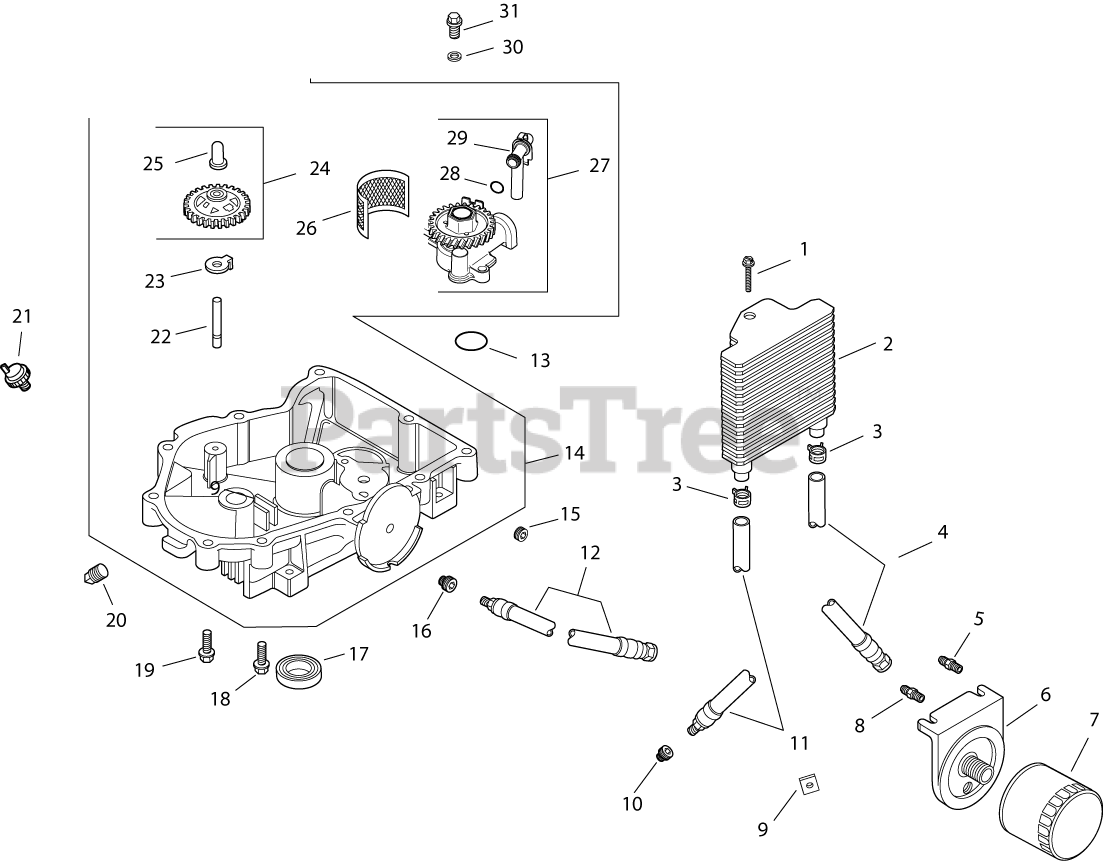

Oil Pan/Lubrication 3-24-512 Parts Diagram

  • Title

1

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$

$

Not available

2

Kohler 24 594 12-S

COOLER, OIL

$

$

Not available

3

Kohler 24 237 10-S

CLAMP, OIL COOLER HOSE-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, Qty 7

0

4

Kohler 24 326 11-S

HOSE, OIL

$49.99

$

In Stock, only 1 left!

0

5

Kohler 52 136 02-S

NIPPLE

$10.99

$

Usually ships in 2-5 days

0

6

Kohler 25 029 01-S

ADAPTER

$122.99

$

Usually ships in 2-5 days

0

7

Kohler 52 050 02-S

OIL FILTER
(Superseded to 52-050-02-S)

$14.99

$

In Stock, Qty 20+

0

8

Kohler 52 155 03-S

CONNECTOR

$9.49

$

Usually ships in 2-5 days

0

9

Kohler 24 100 01-S

NUT, PLASTIC (KM)-USE 25 100 37-S
(Superseded to 25 100 37-S)

$2.49

$

In Stock, only 3 left!

0

10

Kohler 25 158 13-S

BUSHING, REDUCING

$11.99

$

Usually ships in 2-5 days

0

11

Kohler 24 326 12-S

HOSE, OIL

$19.99

$

In Stock, only 1 left!

0

12

Kohler 12 326 05-S

HOSE

$61.99

$

Usually ships in 2-5 days

0

13

Kohler 24 153 08-S

O-RING

$6.49

$

Usually ships in 2-5 days

0

14

Kohler 24 199 08-S

OIL PAN ASSEMBLY - USE 24 199 32-S
(Superseded to 24 199 32-S)

$337.99

$

In Stock, Qty 5

0

15

Kohler 25 139 62-S

PLUG, PIPE CTSK 3/8"

$3.49

$

In Stock, only 2 left!

0

16

Kohler 25 158 18-S

BUSHING, REDUCING

$6.99

$

Usually ships in 2-5 days

0

17

Kohler 52 032 08-S

SEAL, OIL (KM)-USE 25 032 06-S
(Superseded to 25 032 06-S)

$10.99

$

In Stock, Qty 20+

0

18

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$2.49

$

In Stock, Qty 19

0

19

Kohler 24 086 16-S

SCREW, HEX FLANGE -USE 24 086 17-S
(Superseded to 24 086 17-S)

$2.49

$

In Stock, Qty 19

0

20

Kohler 25 139 57-S

PLUG, SQ HD PIPE 3/8"

$2.49

$

In Stock, Qty 13

0

21

Kohler 25 099 27-S

SENSOR, OIL PSI

$15.99

$

In Stock, Qty 6

0

22

Kohler 12 144 02-S

SHAFT, GOVERNOR GEAR

$4.49

$

In Stock, Qty 5

0

23

Kohler 24 448 02-S

TAB, LOCKING

$2.49

$

In Stock, only 2 left!

0

24

Kohler 24 043 12-S

KIT, GOVERNOR GEAR W/PIN

$68.99

$

In Stock, only 1 left!

0

25

Kohler 12 380 01-S

PIN, GOVERNOR REGULATING

$3.49

$

In Stock, Qty 13

0

26

Kohler 24 162 26-S

SCREEN, OIL

$17.99

$

In Stock, only 1 left!

0

27

Kohler 24 393 51-S

PUMP ASSEMBLY, OIL-USE 24 393 53-S
(Superseded to 24 393 53-S)

$

$

Not available

28

Kohler 24 153 01-S

O-RING, OIL PICK-UP

$2.49

$

In Stock, only 3 left!

0

29

Kohler 24 381 11-S

KIT, OIL PICK-UP TUBE

$

$

Not available

30

Kohler M-645025-S

SCREW,FLG THD FRM M6X1.0X25-(#25086395S)
(Superseded to 25 086 395-S)

$2.49

$

In Stock, Qty 12

0

31

Kohler M-631005-S

WASHER, FLAT 6 MM

$2.49

$

In Stock, Qty 8

0

2545403-S

Kohler 25 454 03-S

TIE, WIRE

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

2545404-S

Kohler 25 454 04-S

TIE

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0
