CV730-0038 - Kohler Command PRO Engine, Made for Stiga, 23.5hp, 725cc Fuel System 8-24-682 Parts Diagram

Command PRO Engine, Made for Stiga, 23.5hp, 725cc

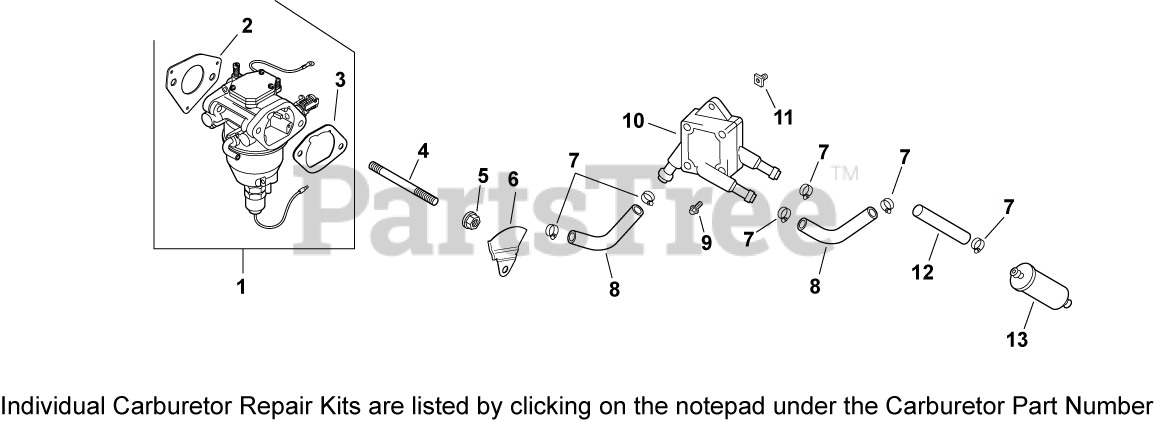

Fuel System 8-24-682 Parts Diagram

  • Title

1

Kohler 24 853 61-S

CARBURETOR KIT-USE 24 853 169-S
(Superseded to 24 853 303-S)

Note: (After S/N 3719900001)

$380.99

$

In Stock, only 1 left!

0

2485390-S

Kohler 24 853 90-S

KIT, CARBURETOR w/GASKETS
(Superseded to 24 853 316-S)

Note: (Before S/N 3719900011)

$976.99

$

Usually ships in 2-5 days

0

2

Kohler 24 041 52-S

GASKET, CARBURETOR
(Superseded to 24 041 91-S)

$5.49

$

In Stock, only 4 left!

0

3

Kohler 24 041 14-S

GASKET, AIR CLEANER BASE

$3.49

$

In Stock, Qty 15

0

4

Kohler M-629095-S

STUD,M6X1.0X96

$4.99

$

In Stock, only 2 left!

0

5

Kohler M-641060-S

NUT, FLG M6X1.0

$4.99

$

In Stock, Qty 6

0

6

Kohler 24 063 51-S

BAFFLE, SPIT-BACK CUP-USE 24 063 105-S
(Superseded to 24 063 105-S)

$8.99

$

In Stock, only 2 left!

0

7

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$5.49

$

In Stock, only 2 left!

0

8

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 8

0

9

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$2.49

$

Usually ships in 2-5 days

0

10

Kohler 24 393 16-S

PUMP, FUEL

$32.99

$

In Stock, Qty 15

0

11

Kohler 24 100 01-S

NUT, PLASTIC (KM)-USE 25 100 37-S
(Superseded to 25 100 37-S)

$2.49

$

In Stock, only 4 left!

0

12

Kohler 24 353 12-S

LINE, FUEL 11"

$3.99

$

Usually ships in 2-5 days

0

13

Kohler 24 050 10-S

FILTER, FUEL (9-12 MICRON)-USE 24 050 13
(Superseded to 24 050 13-S)

$17.99

$

In Stock, Qty 20+

0

2423402-S

Kohler 24 234 02-S

BOWL, FLOAT

Note: NOT ILLUSTRATED

$203.99

$

Usually ships in 2-5 days

0
