CV730-3142 - Kohler Command PRO Engine, Made for Exmark, 23.5hp, 725cc Blower Housing & Baffles 6-24-438 Parts Diagram

Command PRO Engine, Made for Exmark, 23.5hp, 725cc

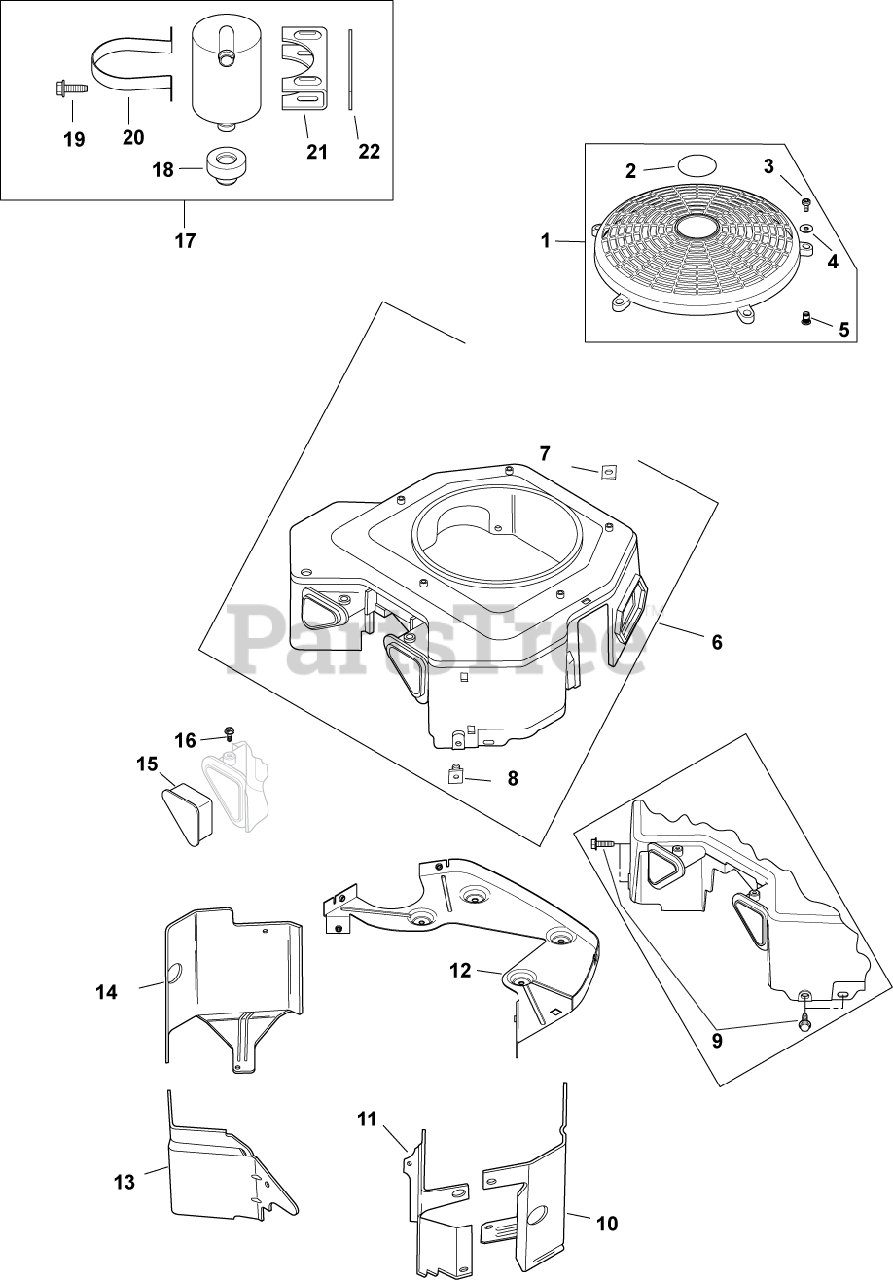

Blower Housing & Baffles 6-24-438 Parts Diagram

  • Title

1

Kohler 24 755 81-S

KIT, FIXED GUARD

Note: (includes 2-5)

$52.99

$

In Stock, only 2 left!

0

2

Kohler 24 113 18-S

DECAL, GRASS SCREEN USE 24 113 499-S
(Superseded to 24 113 499-S)

$4.99

$

Usually ships in 2-5 days

0

3

Kohler 25 086 160-S

SCREW, SEMS

$2.99

$

In Stock, only 4 left!

0

4

Kohler 24 468 10-S

WASHER, FLAT 7/32"

$2.49

$

In Stock, only 1 left!

0

5

Kohler 24 332 01-S

INSERT, THREADED USE 25 332 19-S
(Superseded to 25 332 19-S)

$3.49

$

In Stock, only 4 left!

0

6

Kohler 24 027 91-S

KIT, BLOWER HOUSING
(Superseded to 24 027 443-S)

Note: (includes 5, 7, 8)

$153.99

$

Usually ships in 2-5 days

0

7

Kohler 25 100 37-S

NUT, PLASTIC - BLACK

$2.49

$

In Stock, only 3 left!

0

8

Kohler 24 100 02-S

NUT, PLASTIC

$2.49

$

Usually ships in 2-5 days

0

9

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 20+

0

10

Kohler 24 063 39-S

BAFFLE,VALLEY #2SIDE(KM)-USE 24 063 88-S
(Superseded to 24 063 88-S)

$28.99

$

Usually ships in 2-5 days

0

11

Kohler 24 063 90-S

BAFFLE,VALLEY #2CYLINDER-USE 24 063 94-S
(Superseded to 24 063 94-S)

$9.49

$

In Stock, only 1 left!

0

12

Kohler 24 146 55-S

PLATE, BACKING-USE 24 146 59-S
(Superseded to 24 146 59-S)

$15.99

$

In Stock, only 2 left!

0

13

Kohler 24 063 89-S

BAFFLE,VALLEY #1CYLINDER-USE 24 063 93-S
(Superseded to 24 063 93-S)

$6.49

$

In Stock, only 3 left!

0

14

Kohler 24 063 45-S

CYL BARREL #1 SIDE

$31.99

$

Usually ships in 2-5 days

0

15

Kohler 24 096 17-S

COVER, BLOWER HOUSING USE 24 096 160-S
(Superseded to 24 096 160-S)

$4.99

$

In Stock, only 2 left!

0

16

Kohler 25 086 91-S

SCREW, WSH HD TAP #8-18X1/2"

$3.49

$

Usually ships in 2-5 days

0

17

Kohler 24 755 57-S

KIT, BREATHR SEPARATR-(#24755241S)
(Superseded to 24 755 241-S)

Note: (INCLUDES 18-22)

$90.99

$

In Stock, only 4 left!

0

18

Kohler 25 313 03-S

GROMMET, RUBBER

$10.99

$

In Stock, Qty 8

0

19

Kohler M-545016-S

SCREW,FLG THD FRM M5X0.8X16-(#25086398S)
(Superseded to 25 086 398-S)

$3.99

$

In Stock, Qty 13

0

20

Kohler 24 445 02-S

STRAP, BREATHER - USE 24 755 241-S
(Superseded to 24 755 241-S)

$90.99

$

In Stock, only 4 left!

0

21

Kohler 24 126 44-S

BRACKET, BREATHER SEPARATOR

$5.49

$

Usually ships in 2-5 days

0

22

Kohler 24 112 12-S

SPACER
(Superseded to 24 755 241-S)

$90.99

$

In Stock, only 4 left!

0

M-645016-S

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

Note: NOT ILLUSTRATED

$3.99

$

In Stock, Qty 20+

0

M-645020-S

Kohler M-645020-S

SCREW,FLG THD FRM M6X1.0X20-(#25086396S)
(Superseded to 25 086 396-S)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, Qty 20+

0

M-561016-S

Kohler M-561016-S

SCREW - USE M-545016-S
(Superseded to M-545016-S)

Note: NOT ILLUSTRATED

$2.49

$

In Stock, Qty 15

0

M-545010-S

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

Note: NOT ILLUSTRATED

$4.49

$

In Stock, Qty 9

0

M-645016-S

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

Note: NOT ILLUSTRATED

$3.99

$

In Stock, Qty 20+

0

2408618-S

Kohler 24 086 18-S

SCREW, PHL HD #11-16X7/8"

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

4103710-S

Kohler 41 037 10-S

NAMEPLATE, SERVICE

Note: NOT ILLUSTRATED

$8.49

$

In Stock, only 3 left!

0
