CV732-3032 - Kohler Command PRO Engine, Made for Exmark, 23.5hp, 747cc Ignition/Charging Group 5-24-1690 CV682-752 Parts Diagram

Command PRO Engine, Made for Exmark, 23.5hp, 747cc

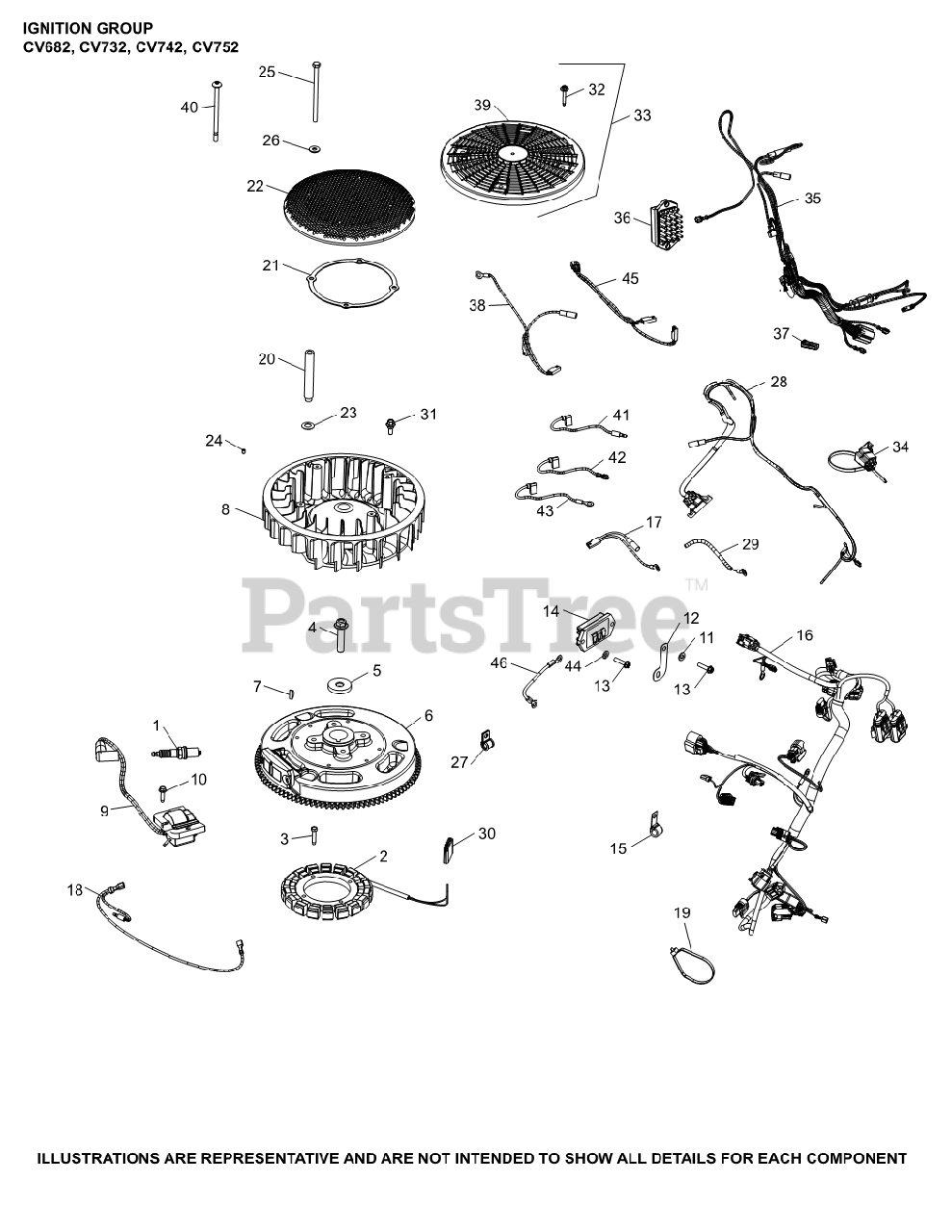

Ignition/Charging Group 5-24-1690 CV682-752 Parts Diagram

  • Title

1

Kohler 25 132 14-S

SPARK PLUG, RFI

$14.99

$

Usually ships in 2-5 days

0

2

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

$149.99

$

In Stock, Qty 20+

0

3

Kohler 25 086 402-S

SCREW, THREAD FORMING

$3.49

$

In Stock, Qty 12

0

4

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$4.49

$

In Stock, Qty 18

0

5

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, Qty 11

0

6

Kohler 24 025 68-S

FLYWHEEL, ASSEMBLY
(Superseded to 24 025 125-S)

$283.99

$

Usually ships in 2-5 days

0

7

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 20+

0

8

Kohler 24 157 12-S

FAN

$22.99

$

In Stock, only 3 left!

0

9

Kohler 25 584 05-S

MODULE, EMC/RFI COMPLIANT
(Superseded to 25 584 31-S)

$53.99

$

In Stock, Qty 16

0

10

Kohler 25 086 472-S

SCREW, THREAD FORMING

$3.99

$

In Stock, Qty 12

0

11

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

Usually ships in 2-5 days

0

13

Kohler 25 086 17-S

SCREW - DISCONTINUED

$

$

Not available

14

Kohler 41 403 10-S

REGULATOR/RECTIFIER
(Superseded to 25 403 37-S)

$

$

Not available

19

Kohler 25 454 04-S

TIE

$3.49

$

Usually ships in 2-5 days

0

20

Kohler 24 112 14-S

SPACER

$26.99

$

In Stock, Qty 20+

0

21

Kohler 25 141 08-S

RING, SUPPORT

$7.49

$

In Stock, Qty 10

0

22

Kohler 24 162 41-S

SCREEN, GRASS

$24.99

$

In Stock, Qty 6

0

23

Kohler 24 468 11-S

WASHER, SPRING 10 MM

$2.49

$

In Stock, Qty 20+

0

24

Kohler 25 086 43-S

SCREW, SKT SET #10-24X1/4"

$2.49

$

Usually ships in 2-5 days

0

25

Kohler M-603100-S

SCREW, CAP M6X1.0X99.5

$4.49

$

In Stock, Qty 17

0

26

Kohler X-25-53-S

WASHER, FLAT 1/4" (O.D. 5/8")

$3.49

$

In Stock, Qty 20+

0

27

Kohler 210281-S

CLIP

$7.49

$

Usually ships in 2-5 days

0

29

Kohler 25 123 05-S

TUBE,RFI FLEXIBLE SLEEVE(219mm)

$24.99

$

Usually ships in 2-5 days

0

30

Kohler 25 155 41-S

CONNECTOR

$11.99

$

In Stock, Qty 18

0

35

Kohler 24 176 178-S

HARNESS, WIRING ASSEMBLY

$37.99

$

Usually ships in 2-5 days

0

44

Kohler 25 468 30-S

WASHER, LOCK

$2.99

$

Usually ships in 2-5 days

0

2451843-S

Kohler 24 518 43-S

LEAD

Note: NOT ILLUSTRATED

$2.99

$

Usually ships in 2-5 days

0
