CV740-0008 - Kohler Command PRO Engine, Made for Dixie Chopper, 25hp, 725cc Fuel System Group 8-24-372 Parts Diagram

Command PRO Engine, Made for Dixie Chopper, 25hp, 725cc

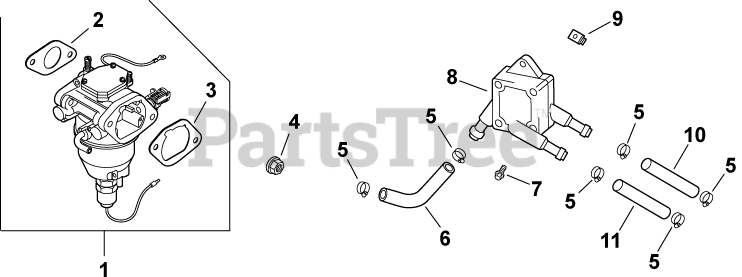

Fuel System Group 8-24-372 Parts Diagram

  • Title

1

Kohler 24 853 92-S

KIT, CARBURETOR w/GASKETS
(Superseded to 24 853 317-S)

$762.99

$

In Stock, only 1 left!

0

2

Kohler 24 041 15-S

GASKET, CARBURETOR

$15.99

$

In Stock, only 2 left!

0

3

Kohler 24 041 14-S

GASKET, AIR CLEANER BASE

$3.49

$

In Stock, Qty 15

0

4

Kohler M-641060-S

NUT, FLG M6X1.0

$4.99

$

In Stock, Qty 6

0

5

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$5.99

$

In Stock, only 2 left!

0

6

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 9

0

7

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$2.49

$

Usually ships in 2-5 days

0

8

Kohler 24 393 16-S

PUMP, FUEL

$32.99

$

In Stock, Qty 18

0

9

Kohler 24 100 01-S

NUT, PLASTIC (KM)-USE 25 100 37-S
(Superseded to 25 100 37-S)

$2.49

$

In Stock, only 4 left!

0

10

Kohler 25 353 15-S

LINE FLEXBLE FUEL (3.5" x.25") -USE 25 1
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 9

0

11

Kohler 24 353 12-S

LINE, FUEL 11"

$3.99

$

Usually ships in 2-5 days

0

2443101-S

Kohler 24 431 01-S

SLEEVE,INSULATING 6.0"-USE 24 431 02-S
(Superseded to 24 431 02-S)

$6.49

$

In Stock, only 2 left!

0

2517309-S

Kohler 25 173 09-S

CAP, MASKING

$2.49

$

In Stock, only 2 left!

0

2475718-S

Kohler 24 757 18-S

KIT, CARBURETOR REPAIR

Note: NOT ILLUSTRATED

$98.99

$

In Stock, only 2 left!

0

2475719-S

Kohler 24 757 19-S

KIT, REPAIR SERVICE CHOKE

Note: NOT ILLUSTRATED

$202.99

$

In Stock, only 1 left!

0

2475720-S

Kohler 24 757 20-S

KIT, REPAIR SERVICE GASKET

Note: NOT ILLUSTRATED

$71.99

$

In Stock, only 2 left!

0

2475721-S

Kohler 24 757 21-S

KIT, ACC PUMP W/GASKETS

Note: NOT ILLUSTRATED

$147.99

$

In Stock, Qty 5

0

2475722-S

Kohler 24 757 22-S

KIT, REPAIR SOLENOID VALVE

Note: NOT ILLUSTRATED

$250.99

$

In Stock, only 1 left!

0

2423402-S

Kohler 24 234 02-S

BOWL, FLOAT

Note: NOT ILLUSTRATED

$203.99

$

Usually ships in 2-5 days

0
