CV740-0008 - Kohler Command PRO Engine, Made for Dixie Chopper, 25hp, 725cc Ignition/Electrical 5-24-562 Parts Diagram

Command PRO Engine, Made for Dixie Chopper, 25hp, 725cc

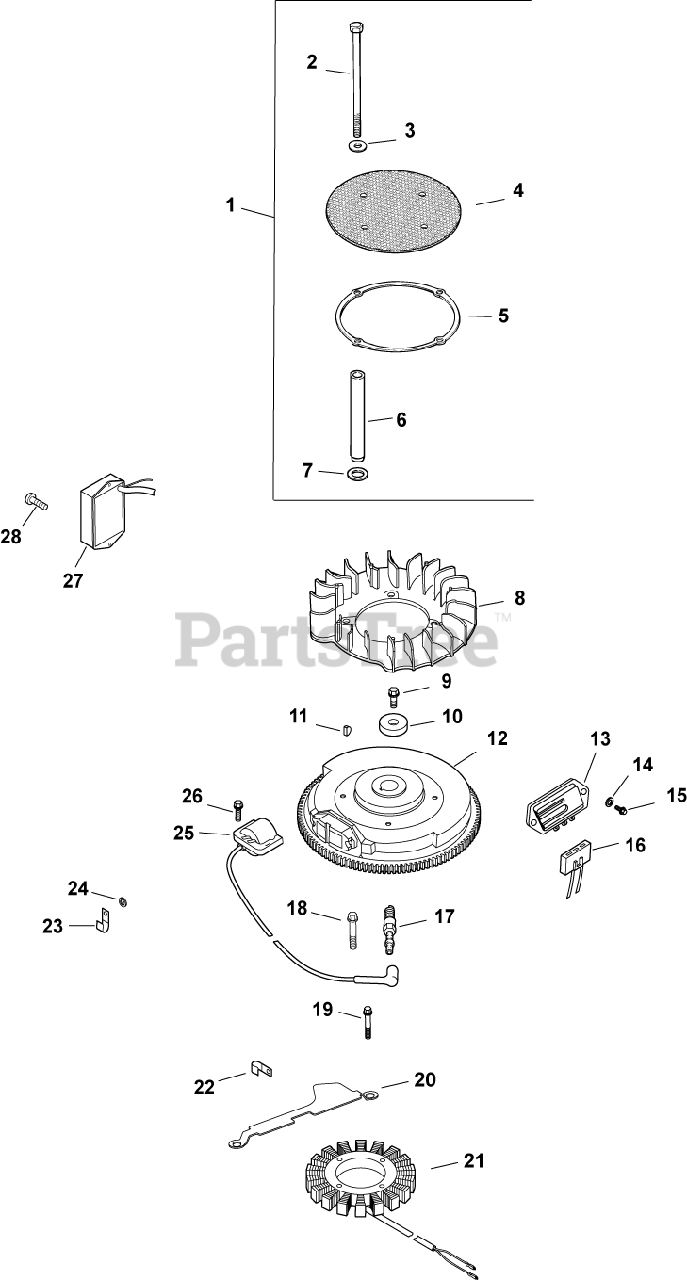

Ignition/Electrical 5-24-562 Parts Diagram

  • Title

1

Kohler 24 755 79-S

KIT, CHOPPER SCREEN

Note: (includes 2-7)

$165.99

$

Usually ships in 2-5 days

0

2

Kohler M-603100-S

SCREW, CAP M6X1.0X99.5

$4.49

$

In Stock, Qty 12

0

3

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

In Stock, only 2 left!

0

4

Kohler 24 162 25-S

SCREEN, GRASS-USE 24 162 41-S
(Superseded to 24 162 41-S)

$24.99

$

In Stock, only 2 left!

0

5

Kohler 24 141 06-S

RING, SUPPORT USE 25 141 08-S
(Superseded to 25 141 08-S)

$6.99

$

In Stock, only 2 left!

0

6

Kohler 24 112 14-S

SPACER

$23.99

$

In Stock, Qty 7

0

7

Kohler 24 468 11-S

WASHER, SPRING 10 MM

$2.49

$

In Stock, Qty 12

0

8

Kohler 24 157 12-S

FAN

$22.99

$

In Stock, only 2 left!

0

9

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$4.49

$

Usually ships in 2-5 days

0

10

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

11

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 20+

0

12

Kohler 24 025 15-S

FLYWHEEL ASSEMBLY-USE 24 025 58-S
(Superseded to 24 025 58-S)

$310.99

$

Usually ships in 2-5 days

0

13

Kohler 41 403 09-S

REG/RECT-15 AMP (KM)-USE 41 403 10-S
(Superseded to 41 403 10-S)

$126.99

$

Usually ships in 2-5 days

0

14

Kohler X-25-92-S

WASHER, FLAT 3/16"

$2.99

$

In Stock, only 2 left!

0

15

Kohler 24 086 18-S

SCREW, PHL HD #11-16X7/8"

$

$

Not available

16

Kohler 236602-S

CONNECTOR, BODY (KM)-USE 25 155 41-S
(Superseded to 25 155 41-S)

$31.99

$

In Stock, only 2 left!

0

17

Kohler 12 132 02-S

PLUG, SPARK (STD)

$3.99

$

Usually ships in 2-6 days

0

18

Kohler M-548025-S

SCREW, M5X0.8X25 - (#25086402S)
(Superseded to 25 086 402-S)

$2.99

$

In Stock, only 2 left!

0

19

Kohler 25 086 43-S

SCREW, SKT SET #10-24X1/4"

$2.49

$

Usually ships in 2-5 days

0

20

Kohler 24 126 139-S

BRACKET, STATOR WIRE

$19.99

$

Usually ships in 2-5 days

0

21

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

Note: (includes 25 452 01-S [qnty 2])

$149.99

$

In Stock, Qty 12

0

22

Kohler 12 154 01-S

CLIP, TUBE & WIRING (KM)

$2.49

$

In Stock, only 1 left!

0

23

Kohler 47 154 01-S

CLIP, CABLE

$5.49

$

In Stock, only 2 left!

0

24

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

In Stock, only 2 left!

0

25

Kohler 24 584 36-S

MODULE, IGNITION

Note: (Before S/N 3633900011)

$112.99

$

In Stock, Qty 6

0

2458452-S

Kohler 24 584 52-S

MODULE, SPARK ADV -USE 24 584 89-S
(Superseded to 24 584 89-S)

Note: (After S/N 3633900001)

$

$

Not available

26

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.99

$

In Stock, Qty 20+

0

27

Kohler 24 584 31-S

MODULE, SPEED ADVANCE -USE 24 755 162-S
(Superseded to 24 755 172-S)

$

$

Not available

28

Kohler M-448010-S

SCREW, THD FRM M4X0.7X10

$

$

Not available

24126137-S

Kohler 24 126 137-S

BRACKET, GROUND STRAP USE 24 518 12-S
(Superseded to 24 518 12-S)

Note: NOT ILLUSTRATED

$5.99

$

In Stock, only 2 left!

0

2546807-S

Kohler 25 468 07-S

WASHER, FLAT 7/32"

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

2417616-S

Kohler 24 176 16-S

HARNESS, WIRING

Note: NOT ILLUSTRATED

$127.99

$

Usually ships in 2-5 days

0

2545403-S

Kohler 25 454 03-S

TIE, WIRE

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

4103710-S

Kohler 41 037 10-S

NAMEPLATE, SERVICE

Note: NOT ILLUSTRATED

$12.99

$

Usually ships in 2-5 days

0
