CV742-3055 - Kohler Command PRO Engine, Made for John Deere, 25hp, 747cc 05 Ignition/Charging Parts Diagram

Command PRO Engine, Made for John Deere, 25hp, 747cc

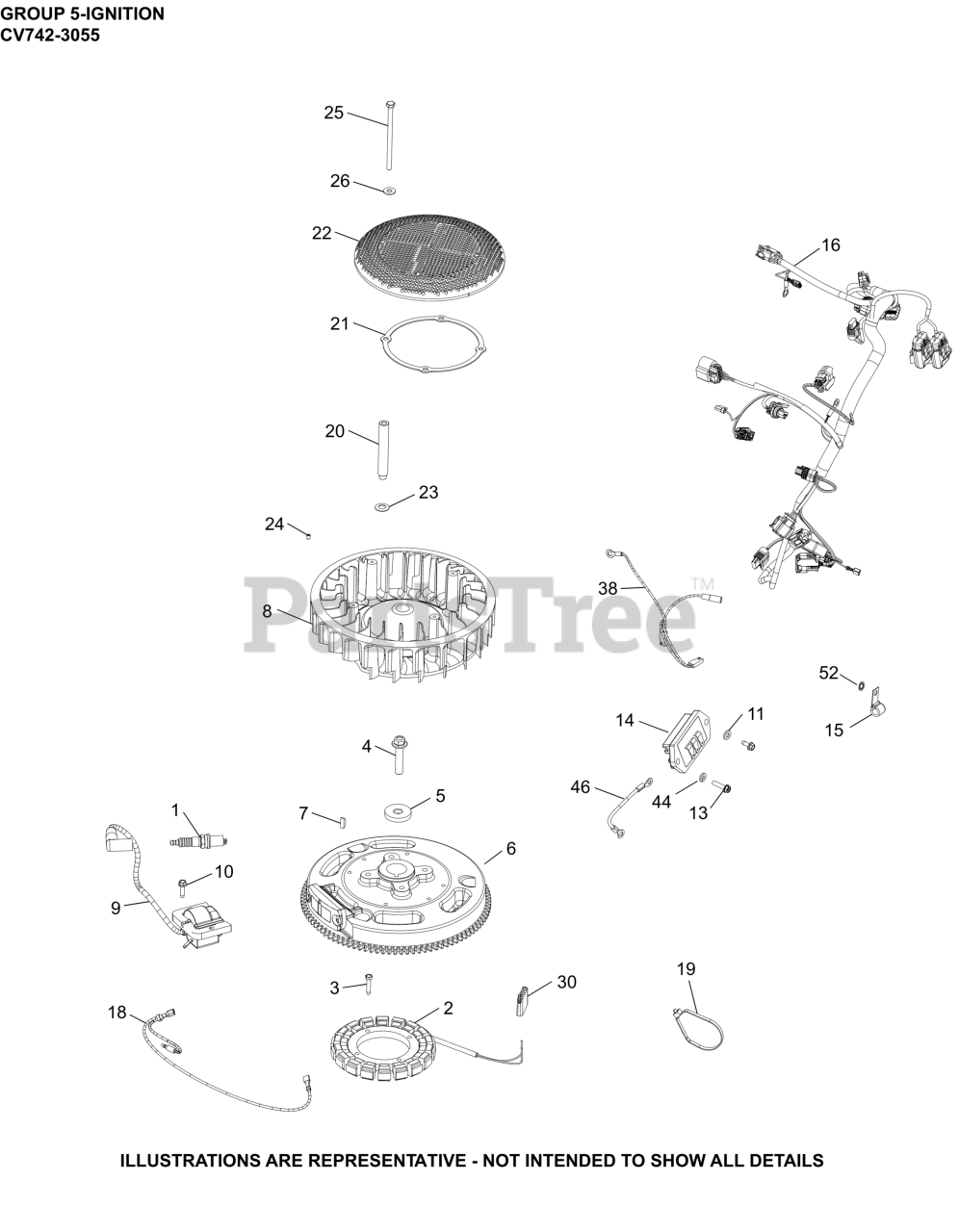

05 Ignition/Charging Parts Diagram

  • Title

1

Kohler 25 132 14-S

SPARK PLUG, RFI

$14.99

$

Usually ships in 2-5 days

0

2

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

$149.99

$

In Stock, Qty 20+

0

3

Kohler 25 086 402-S

SCREW, THREAD FORMING

$3.49

$

In Stock, Qty 12

0

4

Kohler 25 086 361-S

SCREW, HEX FLANGE

$4.49

$

In Stock, Qty 17

0

5

Kohler 25 468 09-S

WASHER, FLAT

$6.49

$

In Stock, Qty 10

0

6

Kohler 24 025 122-S

FLYWHEEL ASSEMBLY (LW)

$311.99

$

In Stock, only 2 left!

0

7

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 20+

0

8

Kohler 24 157 12-S

FAN

$22.99

$

In Stock, only 2 left!

0

9

Kohler 24 584 176-S

MODULE, MAGNETO DIGITAL IGNITION

$86.99

$

In Stock, Qty 20+

0

10

Kohler 25 086 399-S

SCREW, THD FRM-USE 25 086 473-S
(Superseded to 25 086 473-S)

$3.49

$

In Stock, Qty 20+

0

10

Kohler 25 086 472-S

SCREW, THREAD FORMING

$3.99

$

In Stock, Qty 12

0

11

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

Usually ships in 2-5 days

0

13

Kohler 25 086 785-S

SCREW, HEX FLANGE HI-LO

$2.49

$

Usually ships in 2-5 days

0

14

Kohler 25 403 37-S

REGULATOR/RECT 12/15A-(#2540345S)

Note: BEFORE S/N 5402300011

$

$

Not available

15

Kohler 235173-S

CLIP, CABLE

$11.99

$

Usually ships in 2-5 days

0

16

Kohler 24 176 221-S

HARNESS, WIRING ASSEMBLY

$73.99

$

Usually ships in 2-5 days

0

18

Kohler 25 176 19-S

HARNESS, LEAD DUPLEX

$16.99

$

Usually ships in 2-5 days

0

19

Kohler 25 454 07-S

TIE

$2.49

$

Usually ships in 2-5 days

0

20

Kohler 24 112 14-S

SPACER

$26.99

$

In Stock, Qty 19

0

21

Kohler 25 141 08-S

RING, SUPPORT

$7.49

$

In Stock, Qty 8

0

22

Kohler 24 162 41-S

SCREEN, GRASS

$24.99

$

In Stock, Qty 6

0

23

Kohler 24 468 11-S

WASHER, SPRING 10 MM

$2.49

$

In Stock, Qty 20+

0

24

Kohler 25 086 43-S

SCREW, SKT SET #10-24X1/4"

$2.49

$

Usually ships in 2-5 days

0

25

Kohler M-603100-S

SCREW, CAP M6X1.0X99.5

$4.49

$

In Stock, Qty 11

0

26

Kohler X-25-53-S

WASHER, FLAT 1/4" (O.D. 5/8")

$3.49

$

In Stock, Qty 18

0

30

Kohler 25 155 41-S

CONNECTOR

$11.99

$

In Stock, Qty 17

0

38

Kohler 24 518 41-S

LEAD, JUMPER V/S

$18.99

$

Usually ships in 2-5 days

0

44

Kohler 25 468 30-S

WASHER, LOCK

$2.99

$

Usually ships in 2-5 days

0

46

Kohler 24 518 43-S

LEAD

$2.99

$

In Stock, only 1 left!

0

52

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

$2.49

$

In Stock, Qty 5

0

57

Kohler 25 086 693-S

SCREW, THREAD FORMING

$2.49

$

Usually ships in 2-5 days

0

64

Kohler 25 403 45-S

KIT, REGULATOR RECT (12/15 AMP)

Note: AFTER S/N 5402300001

$150.99

$

In Stock, Qty 20+

0
