CV742-3055 - Kohler Command PRO Engine, Made for John Deere, 25hp, 747cc 08 Fuel System Parts Diagram

Command PRO Engine, Made for John Deere, 25hp, 747cc

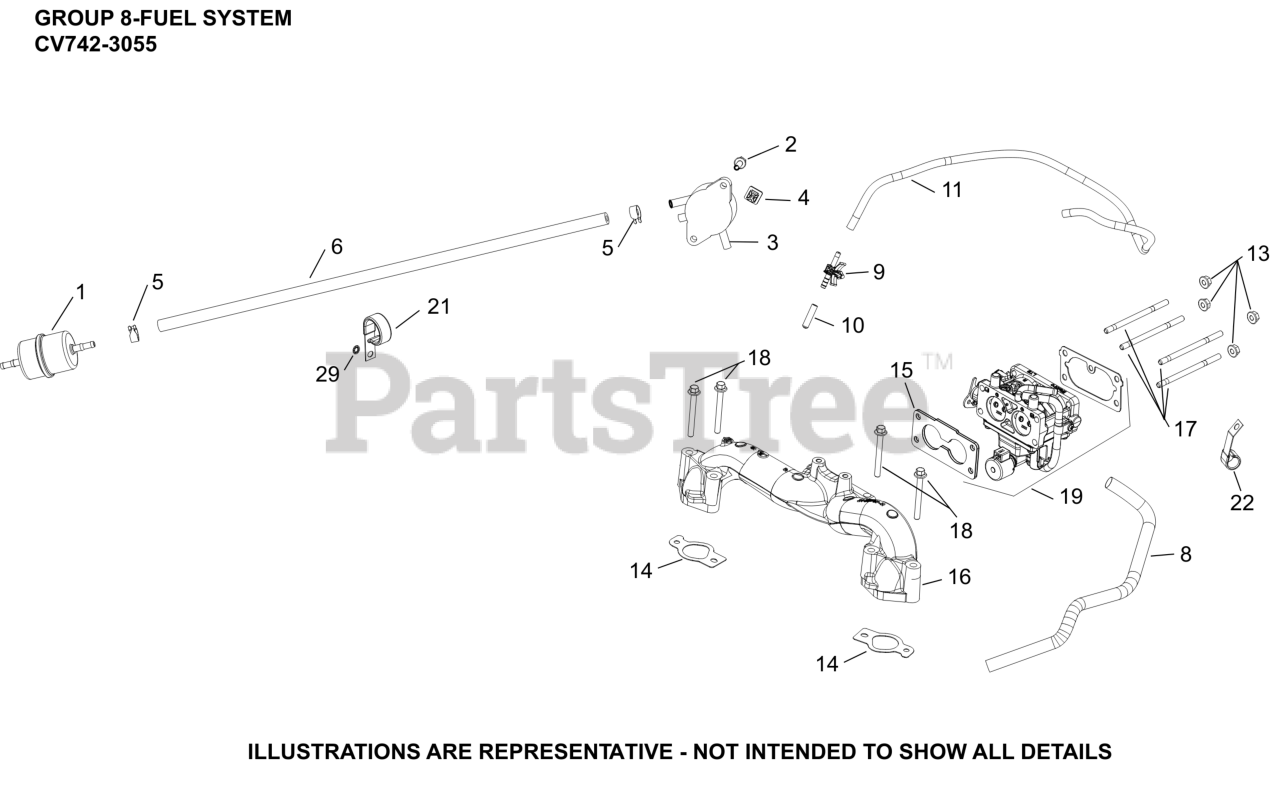

08 Fuel System Parts Diagram

  • Title

1

Kohler 24 050 13-S

FILTER, FUEL

$12.99

$

In Stock, Qty 20+

0

2

Kohler 25 086 784-S

SCREW, HEX HEAD

$2.49

$

In Stock, Qty 16

0

3

Kohler 24 393 16-S

PUMP, FUEL

$32.99

$

In Stock, Qty 20+

0

4

Kohler 25 100 37-S

NUT, PLASTIC - BLACK

$2.49

$

In Stock, only 3 left!

0

5

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$6.49

$

In Stock, Qty 16

0

5

Kohler 25 237 37-S

SPRING CLAMP, HOSE

$2.49

$

In Stock, Qty 20+

0

6

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 20+

0

6

Kohler 25 111 72-S

FUEL LINE (30")-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 20+

0

6

Kohler 25 111 81-S

HOSE, FUEL LOW PERMEATION 39"

$17.99

$

In Stock, Qty 20+

0

8

Kohler 24 431 02-S

SLEEVE, INSULATING 14"

$6.49

$

In Stock, only 1 left!

0

8

Kohler 25 431 22-S

SLEEVE, ANTI-ABRASION

$5.99

$

Usually ships in 2-5 days

0

9

Kohler 25 155 51-S

CONNECTOR, EVAPORATIVE

$13.99

$

In Stock, only 2 left!

0

10

Kohler 25 173 33-S

CAP, MASKING

$2.49

$

In Stock, only 1 left!

0

11

Kohler 25 326 28-S

HOSE, EVAPORATIVE

$4.49

$

In Stock, only 1 left!

0

13

Kohler 25 100 76-S

NUT, HEX FLANGE-USE M-641060-S
(Superseded to M-641060-S)

$4.49

$

In Stock, Qty 11

0

14

Kohler 24 041 79-S

KIT, INTAKE MANIFOLD GASKET

$2.99

$

In Stock, Qty 20+

0

15

Kohler 24 041 84-S

GASKET, CARBURETOR

$14.99

$

In Stock, only 3 left!

0

16

Kohler 24 164 138-S

KIT, MANIFOLD INTAKE (VERT 2BBL)-DISC.
(Superseded to 24 164 384-S)

Note: BEFORE S/N 5327500011

$104.99

$

Usually ships in 2-5 days

0

17

Kohler M-629095-S

STUD,M6X1.0X96

Note: BEFORE S/N 5327500011

$3.99

$

In Stock, only 2 left!

0

17

Kohler 25 072 48-S

STUD, CARBURETOR

Note: AFTER S/N 5327500001

$1.49

$

Usually ships in 2-5 days

0

18

Kohler 25 086 766-S

SCREW, HEX FLANGE

$2.49

$

In Stock, Qty 15

0

19

Kohler 24 853 276-S

KIT, CARBURETOR COMPLETE

$411.99

$

In Stock, only 1 left!

0

21

Kohler 25 154 09-S

CLIP, CABLE

$3.99

$

Usually ships in 2-5 days

0

22

Kohler 25 154 26-S

CLIP, CABLE

$2.99

$

Usually ships in 2-5 days

0

28

Kohler 24 164 384-S

KIT, MANIFOLD INTAKE (VERTICAL 2BBL)

Note: AFTER S/N 5327500001

$104.99

$

Usually ships in 2-5 days

0

29

Kohler X-22-9-S

WASHER, INT TOOTH LOCK #10

$3.99

$

In Stock, only 1 left!

0

NI

Kohler 24 757 70-S

KIT, ACCEL PUMP REPAIR

$66.99

$

In Stock, only 1 left!

0

NI

Kohler 24 757 71-S

KIT, CARBURETOR REPAIR

$58.99

$

In Stock, only 2 left!

0

NI

Kohler 24 757 72-S

KIT, FLOAT BOWL REPLACEMENT

$216.99

$

Usually ships in 2-5 days

0

NI

Kohler 24 757 73-S

KIT, FUEL SHUTDOWN SOLENOID

$100.99

$

Usually ships in 2-5 days

0

NI

Kohler 24 757 76-S

KIT, SOLENOID

$192.99

$

Usually ships in 2-5 days

0
