CV742-3055 - Kohler Command PRO Engine, Made for John Deere, 25hp, 747cc 10 Air Intake Parts Diagram

Command PRO Engine, Made for John Deere, 25hp, 747cc

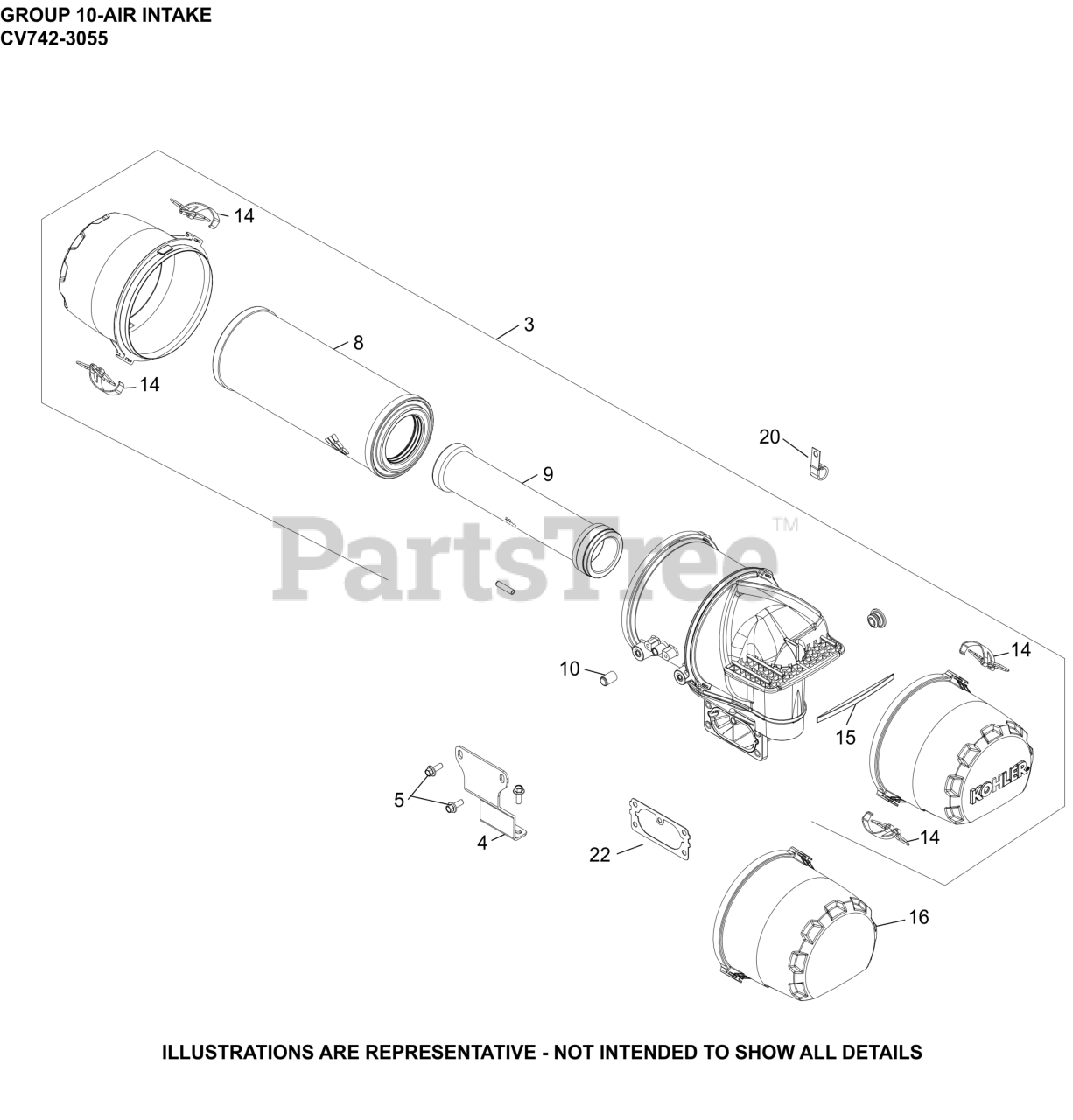

10 Air Intake Parts Diagram

  • Title

3

Kohler 24 048 64-S

FILTER AIR ASSEMBLY, OIL FILTER SIDE

$245.99

$

Usually ships in 2-5 days

0

4

Kohler 24 126 218-S

BRACKET, SUPPORT

$9.49

$

Usually ships in 2-5 days

0

5

Kohler M-639016-S

SCREW, FLG M6X1.0X16

$2.49

$

In Stock, only 3 left!

0

8

Kohler 25 083 01-S

ELEMENT, AIR FILTER - PRIMARY

$33.99

$

In Stock, Qty 20+

0

9

Kohler 25 083 04-S

ELEMENT, AIR FILTER - SAFETY

$33.99

$

In Stock, Qty 20+

0

10

Kohler 25 173 37-S

CAP, MASKING

$2.49

$

Usually ships in 2-5 days

0

14

Kohler 62 154 07-S

CLIP ASSEMBLY

$23.99

$

In Stock, Qty 12

0

15

Kohler 62 263 03-S

DAMPER, FOAM INSERT

$13.99

$

Usually ships in 2-5 days

0

16

Kohler 62 096 38-S

COVER, AIR FILTER W/O LOGO

$57.99

$

Usually ships in 2-5 days

0

16

Kohler 62 096 39-S

COVER, RAIN CAP W/O LOGO

$50.99

$

Usually ships in 2-5 days

0

20

Kohler 48 154 01-S

CLIP, CABLE (KM)

$2.49

$

Usually ships in 2-5 days

0

22

Kohler 24 041 95-S

GASKET, AIR CLEANER

$1.99

$

Usually ships in 2-5 days

0

Kohler 25 072 48-S

STUD, CARBURETOR

$1.49

$

Usually ships in 2-5 days

0
