CV750-0023 - Kohler Command PRO Engine, Made for Scag, 27hp, 20.1kW Fuel System 8-24-633 Parts Diagram

Command PRO Engine, Made for Scag, 27hp, 20.1kW

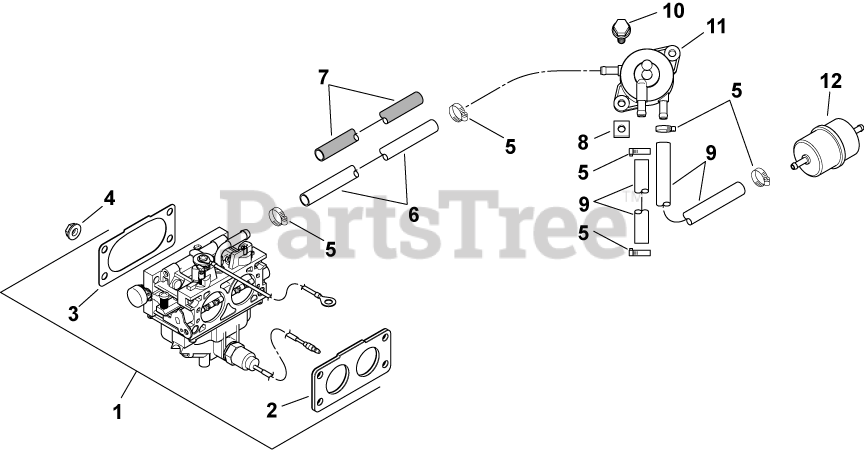

Fuel System 8-24-633 Parts Diagram

  • Title

1

Kohler 24 853 103-S

CARBURETOR KIT-USE 24 853 111-S
(Superseded to 24 853 111-S)

Note: (includes 2,3)

$492.99

$

In Stock, only 1 left!

0

2

Kohler 24 041 60-S

GASKET, CARBURETOR - USE 24 041 82-S
(Superseded to 24 041 81-S)

$9.99

$

In Stock, only 2 left!

0

3

Kohler 24 041 58-S

GASKET, AIR CLEANER ELBOW

$2.99

$

In Stock, only 1 left!

0

4

Kohler M-641060-S

NUT, FLG M6X1.0

$4.99

$

In Stock, Qty 6

0

5

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$5.49

$

In Stock, only 2 left!

0

6

Kohler 24 353 12-S

LINE, FUEL 11"

$3.99

$

Usually ships in 2-5 days

0

7

Kohler 24 431 02-S

SLEEVE, INSULATING 14"

$6.49

$

In Stock, only 2 left!

0

8

Kohler 24 100 01-S

NUT, PLASTIC (KM)-USE 25 100 37-S
(Superseded to 25 100 37-S)

$2.49

$

In Stock, only 4 left!

0

9

Kohler 25 111 34-S

HOSE,LW PERM.FUEL 24.00"-USE 25 111 81-S
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 8

0

10

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$2.49

$

Usually ships in 2-5 days

0

11

Kohler 24 393 16-S

PUMP, FUEL

$32.99

$

In Stock, Qty 15

0

12

Kohler 24 050 10-S

FILTER, FUEL (9-12 MICRON)-USE 24 050 13
(Superseded to 24 050 13-S)

$17.99

$

In Stock, Qty 20+

0

2475748-S

Kohler 24 757 48-S

KIT, CHOKE REPAIR

Note: NOT ILLUSTRATED

$281.99

$

In Stock, only 1 left!

0

2475749-S

Kohler 24 757 49-S

KIT, FLOAT REPAIR

Note: NOT ILLUSTRATED

$156.99

$

Usually ships in 2-5 days

0

2475750-S

Kohler 24 757 50-S

KIT, SOLENOID VALVE REPAIR

Note: NOT ILLUSTRATED

$249.99

$

Usually ships in 2-5 days

0

2475751-S

Kohler 24 757 51-S

KIT, CARBURETOR REPAIR

Note: NOT ILLUSTRATED

$233.99

$

Usually ships in 2-5 days

0
