CV750-0026 - Kohler Command PRO Engine, Made for Hustler, 27hp, 20.1kW Air Intake/Filtration 10-24-228 Parts Diagram

Command PRO Engine, Made for Hustler, 27hp, 20.1kW

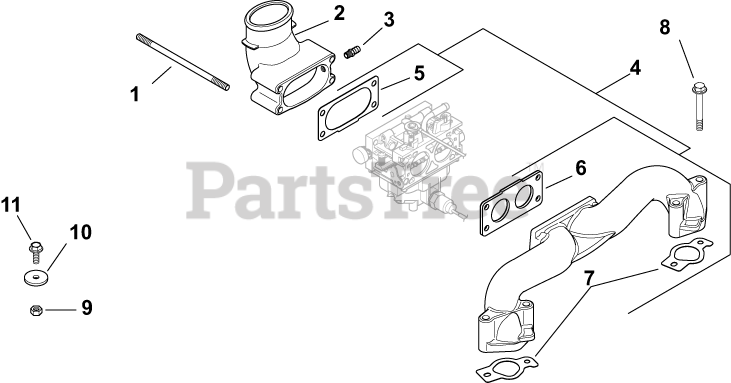

Air Intake/Filtration 10-24-228 Parts Diagram

  • Title

1

Kohler M-629122-S

STUD,M6X1.0X122

$5.99

$

Usually ships in 2-5 days

0

2

Kohler 24 054 19-S

KIT, A/C ELBOW-USE 24 054 39-S
(Superseded to 24 054 39-S)

$153.99

$

Usually ships in 2-5 days

0

3

Kohler 12 294 06-S

FITTING, BARBED - USE 25 294 16-S
(Superseded to 25 294 16-S)

$

$

Not available

4

Kohler 24 164 88-S

KIT, INTAKE MANIFOLD

Note: (includes 5-7)

$223.99

$

Usually ships in 2-5 days

0

5

Kohler 24 041 62-S

GASKET,AIR CLEANER ELBOW-USE 24 041 63-S
(Superseded to 24 041 80-S)

$2.49

$

In Stock, only 2 left!

0

6

Kohler 24 041 60-S

GASKET, CARBURETOR - USE 24 041 82-S
(Superseded to 24 041 81-S)

$7.99

$

Usually ships in 2-5 days

0

7

Kohler 24 041 01-S

GASKET, INTAKE MANIFOLD USE 24 041 79-S
(Superseded to 24 041 79-S)

$2.99

$

In Stock, Qty 5

0

8

Kohler 25 086 84-S

SCREW, FLG M6X1.0X55
(Superseded to 25 086 766-S)

$1.99

$

In Stock, Qty 20+

0

9

Kohler M-647060-S

NUT, LOCK M6X1.0

$2.49

$

In Stock, Qty 9

0

10

Kohler X-25-73-S

WASHER, FLAT 1/4" (O.D. 1")

$3.99

$

Usually ships in 2-5 days

0

11

Kohler M-639016-S

SCREW, FLG M6X1.0X16

$2.49

$

In Stock, only 3 left!

0
