CV980-2013 - Kohler Command PRO Engine, Made for Toro, 35hp, 26kW Blower Housing Group 6-62-11 CV940-1000 Parts Diagram

Command PRO Engine, Made for Toro, 35hp, 26kW

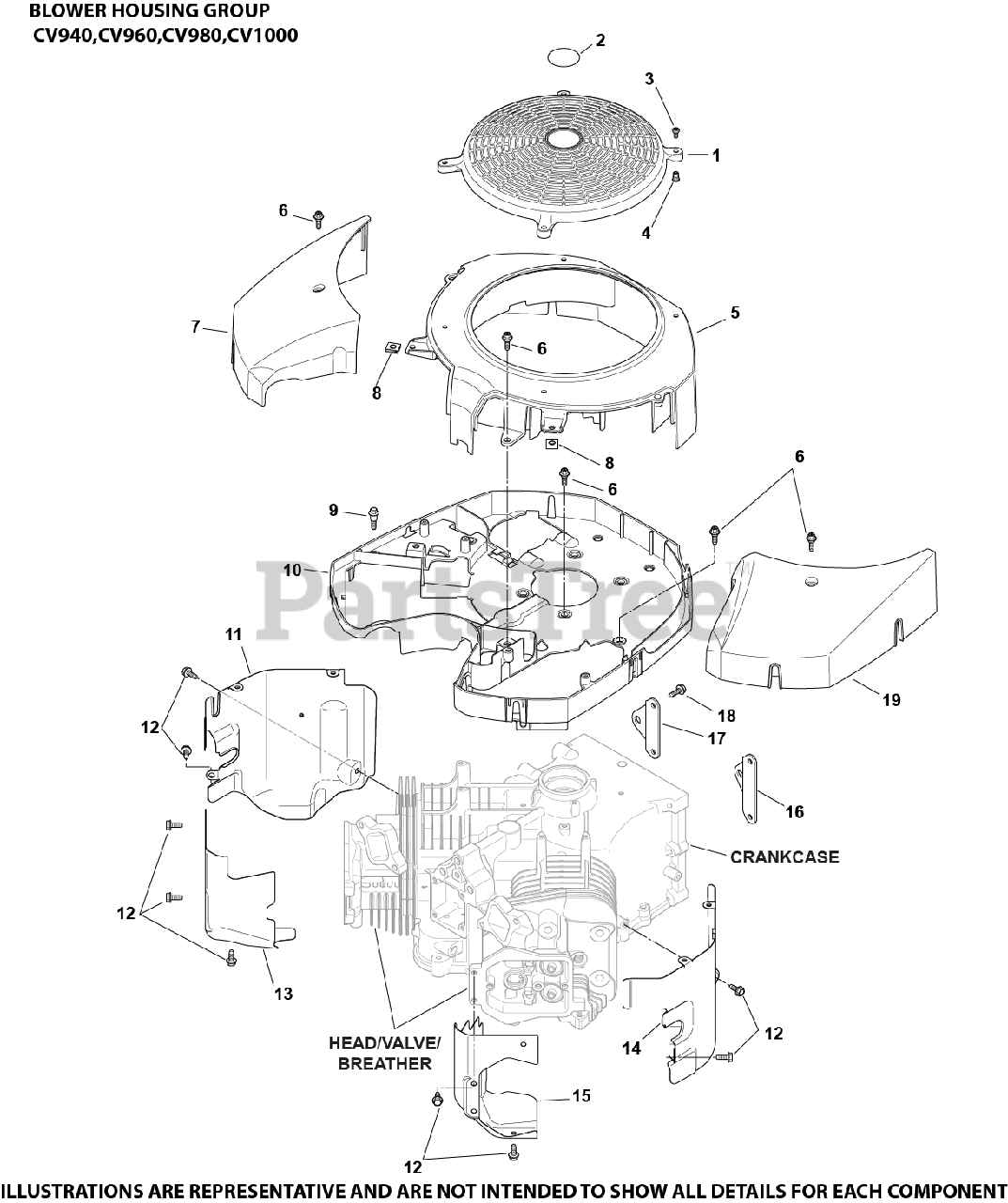

Blower Housing Group 6-62-11 CV940-1000 Parts Diagram

  • Title

1

Kohler 62 755 01-S

KIT, FIXED GUARD

$55.99

$

In Stock, only 1 left!

0

2

Kohler 24 113 18-S

DECAL, GRASS SCREEN USE 24 113 499-S
(Superseded to 24 113 499-S)

$4.99

$

Usually ships in 2-5 days

0

3

Kohler 24 086 35-S

SCREW, LBD SCKT PAN M5X0.8X10

$2.49

$

Usually ships in 2-5 days

0

4

Kohler 25 332 07-S

INSERT, THREADED
(Superseded to 25 332 19-S)

$3.49

$

In Stock, only 4 left!

0

5

Kohler 62 027 05-S

HOUSING, BLOWER - (#6202707S)
(Superseded to 62 027 07-S)

$42.99

$

Usually ships in 2-5 days

0

6

Kohler 62 086 10-S

SCREW, SHD THD FRM

$2.49

$

In Stock, only 4 left!

0

7

Kohler 62 424 08-S

SHROUD, #1 CYLINDER
(Superseded to 62 424 12-S)

$24.99

$

Usually ships in 2-5 days

0

8

Kohler 25 154 13-S

CLIP, BAFFLE MOUNTING USE 25 154 37-S
(Superseded to 25 154 37-S)

$2.49

$

In Stock, Qty 9

0

9

Kohler 20 086 06-S

SCREW, SHD THD FRM M6X1X26

$3.99

$

In Stock, Qty 20+

0

10

Kohler 62 424 15-S

SHROUD, BACKING USE 62 424 19-S
(Superseded to 62 424 29-S)

$38.99

$

In Stock, only 1 left!

0

11

Kohler 62 063 03-S

BAFFLE, CYL BARREL #1 SIDE

$24.99

$

Usually ships in 2-5 days

0

12

Kohler 25 086 397-S

SCREW, THREAD FORMING

$3.99

$

In Stock, Qty 20+

0

13

Kohler 62 063 11-S

BAFFLE, VALLEY #1 SIDE

$110.99

$

Usually ships in 2-5 days

0

14

Kohler 62 063 17-S

BAFFLE CYL BARREL #2 SIDE

$24.99

$

Usually ships in 2-5 days

0

15

Kohler 62 063 16-S

BAFFLE VALLEY #2 SIDE

$40.99

$

Usually ships in 2-5 days

0

16

Kohler 62 445 05-S

STRAP, LIFTING

$13.99

$

Usually ships in 2-5 days

0

18

Kohler 25 086 396-S

SCREW, THREAD FORMING

$2.49

$

In Stock, Qty 20+

0

19

Kohler 62 424 09-S

SHROUD, #2 CYLINDER
(Superseded to 62 424 13-S)

$24.99

$

Usually ships in 2-5 days

0
