CV980-2013 - Kohler Command PRO Engine, Made for Toro, 35hp, 26kW Oil Pan/Lubrication 3-62-1 Parts Diagram

Command PRO Engine, Made for Toro, 35hp, 26kW

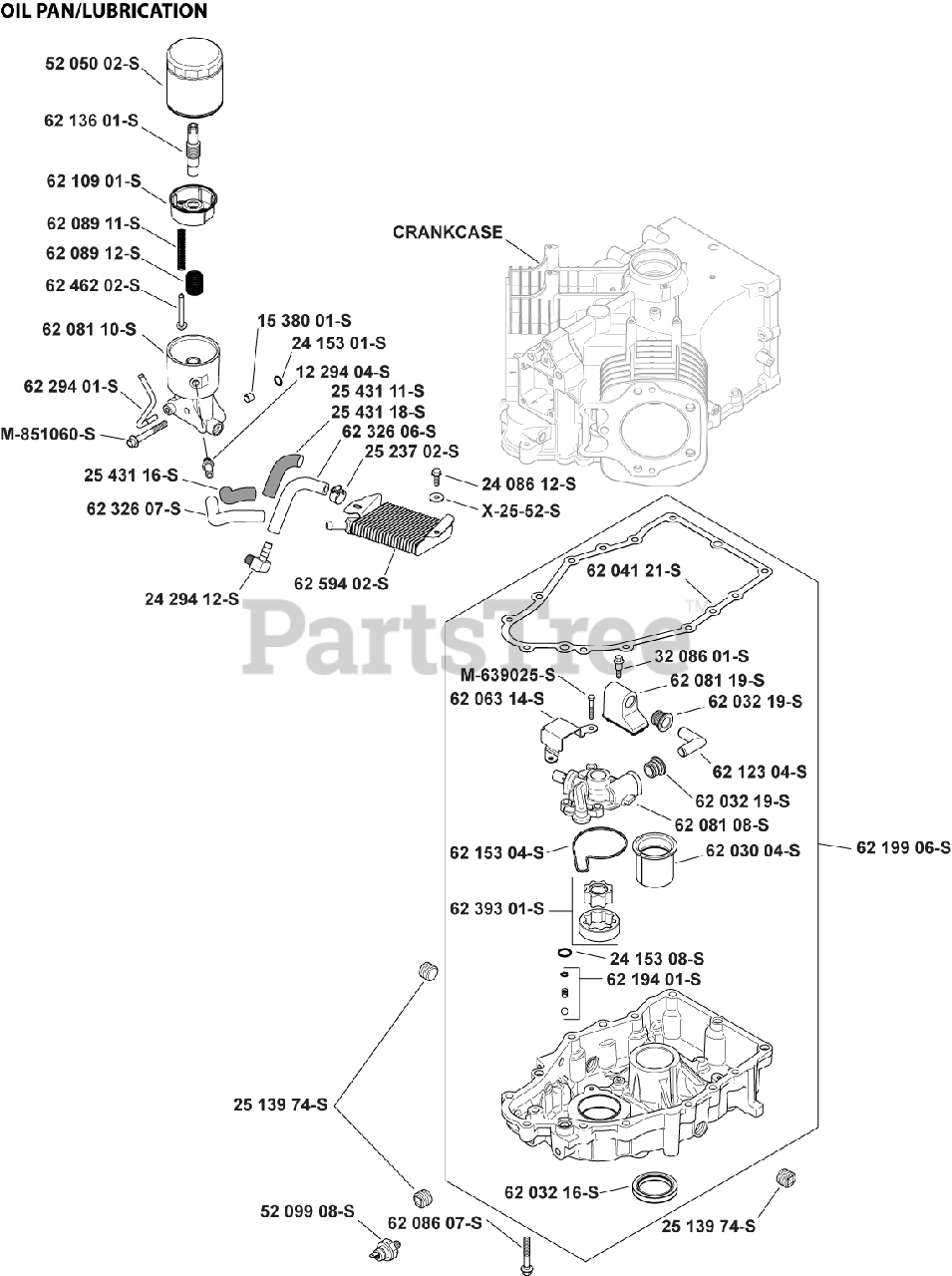

Oil Pan/Lubrication 3-62-1 Parts Diagram

  • Title

1229404-S

Kohler 12 294 04-S

FITTING, HOSE TO PIPE

$29.99

$

Usually ships in 2-5 days

0

1538001-S

Kohler 15 380 01-S

PIN

$2.49

$

Usually ships in 2-5 days

0

2408612-S

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$

$

Not available

2415301-S

Kohler 24 153 01-S

O-RING, OIL PICK-UP

$2.49

$

In Stock, Qty 7

0

6219906-S

Kohler 62 199 06-S

KIT, OIL PAN USE 62 199 10-S
(Superseded to 62 199 12-S)

Note: (INCLUDES X-25-52-S [QTY1], 25 431 11-S, 12 294 04-S, 24 294 12-S, M-851060-S, 62 294 01-S31-39, 62 109 01-S, 62 136 01-S, 52 050 02-S, 24 153 01-S, 15 380 01-S, 25 237 02-S, 25 431 16-S, 62 326 07-S, 62 594 02-S)

$604.99

$

In Stock, only 1 left!

0

6204121-S

Kohler 62 041 21-S

GASKET, OIL PAN

$12.99

$

In Stock, Qty 12

0

3208601-S

Kohler 32 086 01-S

SCREW, SHD THD FRM M6X.0X6.5

$2.99

$

In Stock, only 1 left!

0

6208119-S

Kohler 62 081 19-S

HOUSING, OIL PICK-UP ASSEMBLY

$14.99

$

Usually ships in 2-5 days

0

6203219-S

Kohler 62 032 19-S

SEAL, PICK-UP TUBE

$2.49

$

In Stock, only 1 left!

0

6212304-S

Kohler 62 123 04-S

TUBE, OIL PICK-UP

$5.49

$

Usually ships in 2-5 days

0

6203004-S

Kohler 62 030 04-S

BEARING, CRANKSHAFT (PTO)

$58.99

$

Usually ships in 2-5 days

0

6203216-S

Kohler 62 032 16-S

SEAL, OIL
(Superseded to 25 032 18-S)

$9.49

$

In Stock, Qty 10

0

6219401-S

Kohler 62 194 01-S

KIT, CHECK BALL

$18.99

$

Usually ships in 2-5 days

0

2415308-S

Kohler 24 153 08-S

O-RING

$6.49

$

In Stock, only 1 left!

0

6239301-S

Kohler 62 393 01-S

PUMP ASSEMBLY, OIL/GEROTOR

$28.99

$

Usually ships in 2-5 days

0

6215304-S

Kohler 62 153 04-S

O-RING, OIL PUMP HOUSING

$7.49

$

In Stock, only 1 left!

0

6208108-S

Kohler 62 081 08-S

USE 62 081 25-S OIL PUMP ASSY
(Superseded to 62 081 25-S)

$

$

Not available

6206314-S

Kohler 62 063 14-S

BAFFLE, RELIEF VALVE

$34.99

$

Usually ships in 2-5 days

0

M-639025-S

Kohler M-639025-S

SCREW,FLG M6X1.0X25 (#25086294S)
(Superseded to 25 086 294-S)

$2.49

$

Usually ships in 2-5 days

0

2513974-S

Kohler 25 139 74-S

PLUG, PIPE 1/2 NPTF SQ CTSK

$2.49

$

Usually ships in 2-5 days

0

X-25-52-S

Kohler X-25-52-S

WASHER, FLAT 1/4"

$3.99

$

In Stock, only 2 left!

0

6232606-S

Kohler 62 326 06-S

HOSE, OIL SUPPLY

$16.99

$

In Stock, only 1 left!

0

2429412-S

Kohler 24 294 12-S

FITTING, 90 DEG. BARBED

$19.99

$

Usually ships in 2-5 days

0

M-851060-S

Kohler M-851060-S

SCREW, FLG M8X1.25X60

$4.99

$

Usually ships in 2-5 days

0

6246202-S

Kohler 62 462 02-S

VALVE, OIL FILTER

$7.99

$

Usually ships in 2-5 days

0

6208912-S

Kohler 62 089 12-S

SPRING, OIL FILTER CUP

$2.49

$

In Stock, only 1 left!

0

6208911-S

Kohler 62 089 11-S

SPRING, OIL FILTER VALVE

$2.49

$

In Stock, only 1 left!

0

6210901-S

Kohler 62 109 01-S

CUP, OIL FILTER - USE 62 109 02-S
(Superseded to 62 109 02-S)

$14.99

$

Usually ships in 2-5 days

0

6213601-S

Kohler 62 136 01-S

NIPPLE, OIL FILTER - USE 62 136 05-S
(Superseded to 62 136 06-S)

$15.99

$

Usually ships in 2-5 days

0

5205002-S

Kohler 52 050 02-S

OIL FILTER
(Superseded to 52-050-02-S)

$14.99

$

In Stock, Qty 20+

0

2523702-S

Kohler 25 237 02-S

CLAMP

$3.99

$

In Stock, only 2 left!

0

2543116-S

Kohler 25 431 16-S

SLEEVE, ANTI ABRASION-USE 25 431 12-S
(Superseded to 25 431 12-S)

$10.99

$

In Stock, only 1 left!

0

6232607-S

Kohler 62 326 07-S

HOSE, OIL RETURN

$16.99

$

Usually ships in 2-5 days

0

6259402-S

Kohler 62 594 02-S

COOLER, OIL ASSY - USE 62 594 03-S
(Superseded to 62 594 05-S)

$183.99

$

Usually ships in 2-5 days

0

6208110-S

Kohler 62 081 10-S

HOUSING, VERTICAL OIL FILTER

$111.99

$

Usually ships in 2-5 days

0

6229401-S

Kohler 62 294 01-S

FITTING, PULSE PUMP

$7.49

$

Usually ships in 2-5 days

0

2543118-S

Kohler 25 431 18-S

SLEEVE, ANTI ABRASION-USE 25 431 12-S
(Superseded to 25 431 12-S)

$10.99

$

In Stock, only 1 left!

0

2513960-S

Kohler 25 139 60-S

PLUG, CTSK PIPE 1/8"

Note: NOT ILLUSTRATED

$3.49

$

In Stock, only 3 left!

0

1245403-S

Kohler 12 454 03-S

TIE, CABLE

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0

6208607-S

Kohler 62 086 07-S

SCREW, FLG M8X1.25X50 USE 25 086 618-S
(Superseded to 25 086 618-S)

$2.99

$

Usually ships in 2-5 days

0
