ECH440-3011 - Kohler Command PRO EFI Engine, Made for Walker, 14hp, 10.5kW 05 Ignition/Charging Parts Diagram

Command PRO EFI Engine, Made for Walker, 14hp, 10.5kW

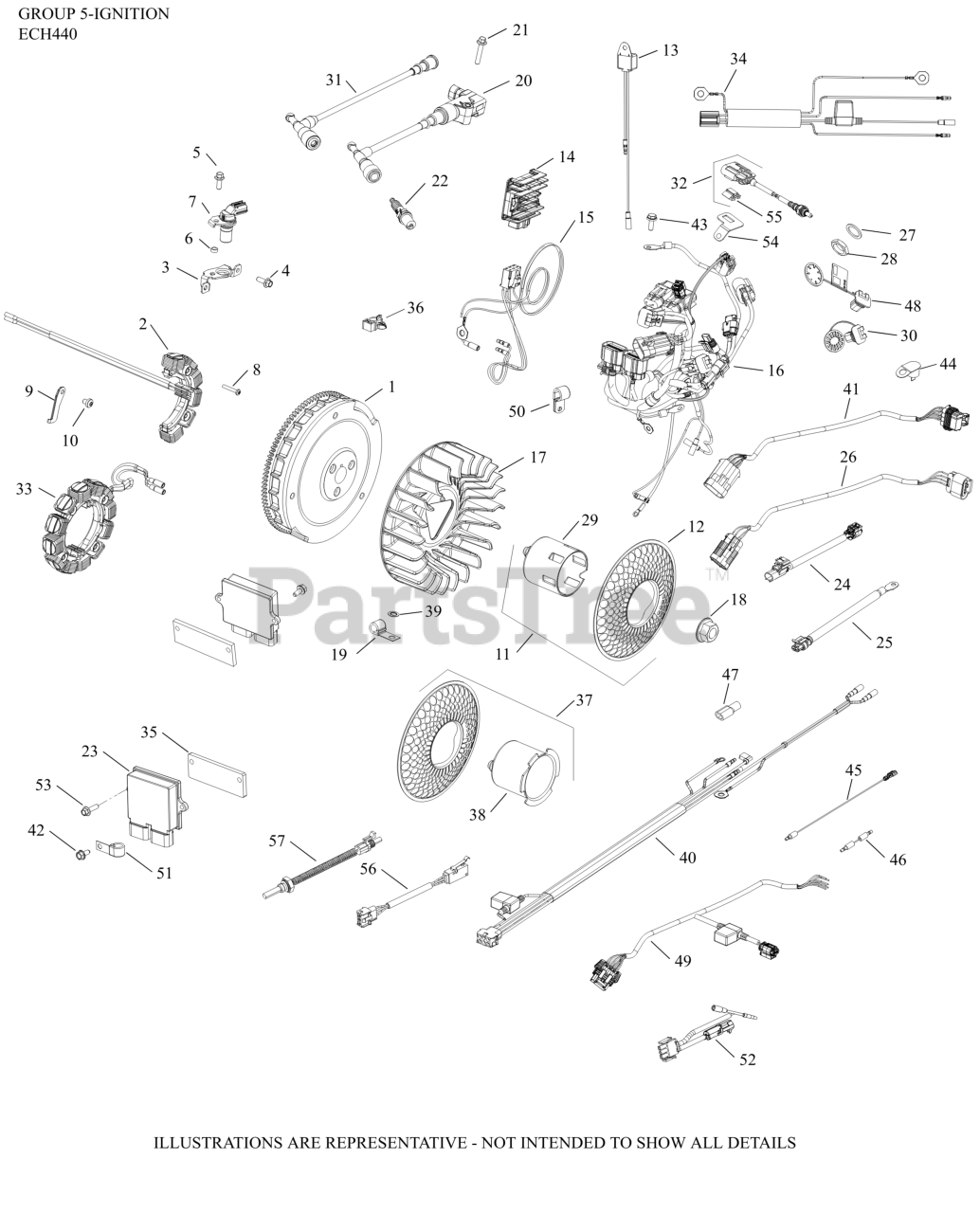

05 Ignition/Charging Parts Diagram

  • Title

1

Kohler 17 025 37-S

FLYWHEEL ASSY, ELECTRIC START 18 AMP

$211.99

$

Usually ships in 2-5 days

0

3

Kohler 17 126 217-S

BRACKET, CRANK SENSOR

$5.49

$

Usually ships in 2-5 days

0

5

Kohler 25 086 673-S

SCREW, HEX FLANGE

$2.99

$

Usually ships in 2-5 days

0

6

Kohler 25 112 27-S

SPACER

$2.49

$

In Stock, only 1 left!

0

7

Kohler 25 418 01-S

SENSOR, SPEED

$41.99

$

Usually ships in 2-5 days

0

8

Kohler 25 086 373-S

SCREW, STATOR MOUNTING

$2.99

$

Usually ships in 2-5 days

0

9

Kohler 17 126 69-S

BRACKET, STATOR WIRE

$5.49

$

Usually ships in 2-5 days

0

10

Kohler 25 086 301-S

SCREW, COIL BRACKET

$2.99

$

Usually ships in 2-5 days

0

13

Kohler 17 526 25-S

CONTROL, OIL ALERT UNIT

$84.99

$

In Stock, only 1 left!

0

14

Kohler 25 403 23-S

REG/RECT-25 AMP W/VOLT PROT.

$172.99

$

Usually ships in 2-5 days

0

16

Kohler 17 176 34-S

HARNESS, WIRING ASSEMBLY

$142.99

$

Usually ships in 2-5 days

0

17

Kohler 17 157 05-S

FAN, FLYWHEEL

$20.99

$

Usually ships in 2-5 days

0

18

Kohler 17 100 24-S

NUT, FLYWHEEL

$9.99

$

Usually ships in 2-5 days

0

20

Kohler 17 519 07-S

COIL, IGNITION - EFI

$107.99

$

In Stock, only 3 left!

0

21

Kohler 25 086 697-S

SCREW, HEX FLANGE (M6)

$2.99

$

Usually ships in 2-5 days

0

22

Kohler 25 132 27-S

PLUG, SPARK

$24.99

$

Usually ships in 2-5 days

0

33

Kohler 17 085 14-S

STATOR ASSEMBLY, 18A

$194.99

$

Usually ships in 2-5 days

0

35

Kohler 17 168 15-S

INSULATOR, ECU

$6.49

$

Usually ships in 2-5 days

0

37

Kohler 17 162 22-S

GRASS SCREEN ASSEMBLY

$43.99

$

Usually ships in 2-5 days

0

42

Kohler 25 086 159-S

SCREW, HEX FLANGE (M6)-USE 25 086 433-S
(Superseded to 25 086 433-S)

$2.49

$

In Stock, only 1 left!

0

51

Kohler 48 154 01-S

CLIP, CABLE (KM)

$2.49

$

Usually ships in 2-5 days

0

53

Kohler M-651020-S

SCREW, FLG M6x1.0x20

$2.49

$

In Stock, only 3 left!

0

54

Kohler 24 126 194-S

BRACKET, OXYGEN SENSOR

$1.49

$

In Stock, only 1 left!

0

55

Kohler 25 154 22-S

CLIP, O2 SENSOR

$2.99

$

In Stock, Qty 5

0
