ECH440-3028 - Kohler Command PRO EFI Engine, Made for Toro/Workman, 14hp, 10.5kW 04 CylinderHead/Breather Parts Diagram

Command PRO EFI Engine, Made for Toro/Workman, 14hp, 10.5kW

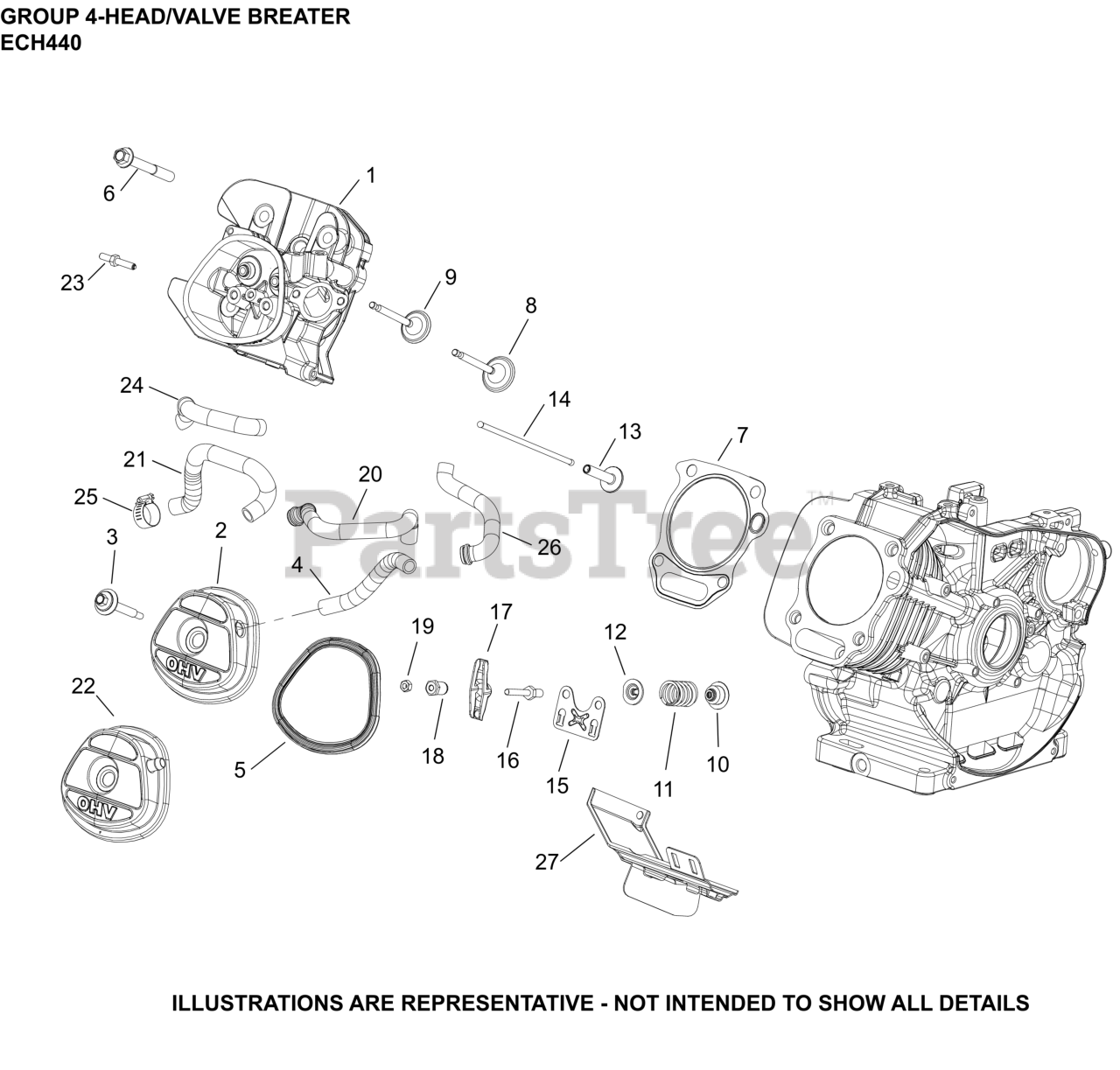

04 CylinderHead/Breather Parts Diagram

  • Title

1

Kohler 17 318 03-S

KIT, HEAD ASSY

$184.99

$

In Stock, only 1 left!

0

3

Kohler 25 086 310-S

SCREW, VALVE COVER SEAL ASSY

$4.99

$

In Stock, only 3 left!

0

5

Kohler 17 041 52-S

GASKET, VALVE COVER

$10.99

$

In Stock, only 3 left!

0

6

Kohler 25 086 739-S

SCREW, HEX FLANGE CYLINDER HEAD

$3.99

$

In Stock, only 4 left!

0

7

Kohler 17 841 73-S

KIT, HEAD GASKET

$36.99

$

Usually ships in 2-5 days

0

8

Kohler 17 017 07-S

VALVE, INTAKE

$35.99

$

In Stock, only 2 left!

0

9

Kohler 17 016 09-S

VALVE, EXHAUST

$45.99

$

In Stock, only 2 left!

0

10

Kohler 17 032 25-S

SEAL, VALVE STEM

$11.99

$

In Stock, Qty 5

0

11

Kohler 17 089 52-S

SPRING, VALVE

$9.99

$

In Stock, only 2 left!

0

12

Kohler 17 018 08-S

RETAINER, VALVE SPRING

$5.99

$

Usually ships in 2-5 days

0

13

Kohler 17 351 03-S

LIFTER, VALVE

$12.99

$

Usually ships in 2-5 days

0

14

Kohler 17 411 10-S

ROD, PUSH

$6.49

$

In Stock, only 2 left!

0

15

Kohler 17 146 10-S

PLATE, PUSHROD GUIDE

$8.49

$

Usually ships in 2-5 days

0

16

Kohler 14 072 02-S

STUD, ROCKER ARM-USE 14 072 22-S
(Superseded to 14 072 29-S)

$7.99

$

In Stock, only 2 left!

0

17

Kohler 17 186 05-S

ARM, ROCKER

$10.99

$

In Stock, only 2 left!

0

18

Kohler 14 599 01-S

PIVOT, ROCKER ARM

$2.99

$

In Stock, only 2 left!

0

19

Kohler 14 100 01-S

NUT, HEX JAM

$2.99

$

In Stock, only 2 left!

0

21

Kohler 17 326 23-S

HOSE, BREATHER

$10.99

$

Usually ships in 2-5 days

0

22

Kohler 17 096 123-S

VALVE COVER ASSEMBLY

$39.99

$

In Stock, only 1 left!

0

24

Kohler 25 431 58-S

SLEEVE, ANTI ABRASION

$7.99

$

Usually ships in 2-5 days

0

25

Kohler 25 237 02-S

CLAMP

$3.99

$

In Stock, only 2 left!

0

27

Kohler 17 314 166-S

SHIELD ASSEMBLY, CYLINDER

$26.99

$

Usually ships in 2-5 days

0

NI

Kohler 17 139 15-S

PLUG, OIL FILL

$3.99

$

Usually ships in 2-5 days

0
