ECH650-3001 - Kohler Command PRO EFI Engine, Basic Version, 21hp, 15.7kW Crankcase Group 2-24-375 Parts Diagram

Command PRO EFI Engine, Basic Version, 21hp, 15.7kW

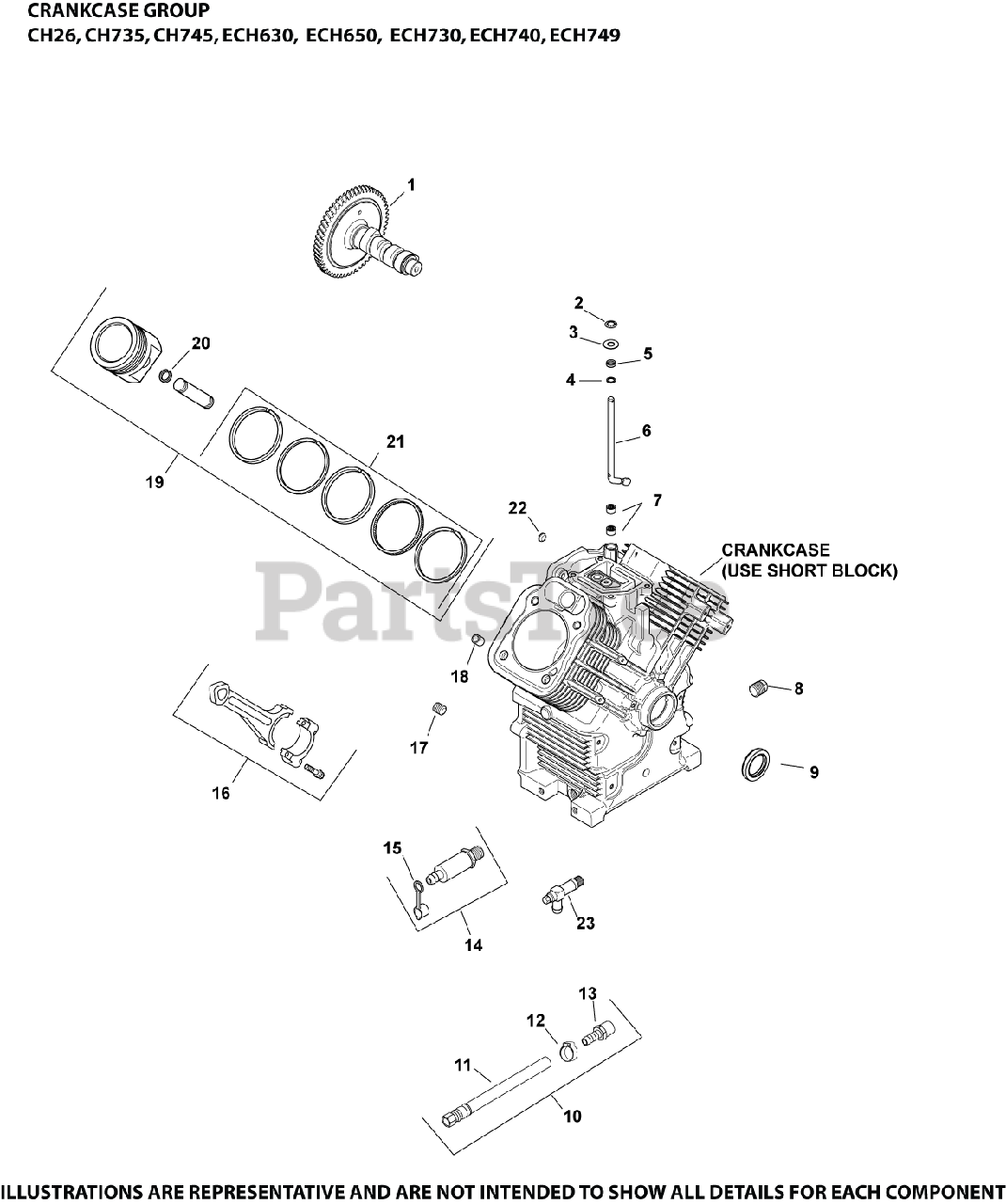

Crankcase Group 2-24-375 Parts Diagram

  • Title

1

Kohler 24 012 29-S

KIT, CAMSHAFT

$153.99

$

In Stock, only 1 left!

0

2

Kohler 24 018 09-S

RETAINER, RING

$2.49

$

In Stock, Qty 16

0

3

Kohler M-931010-S

WASHER, FLAT 9 MM

$2.49

$

In Stock, only 2 left!

0

4

Kohler 24 468 15-S

WASHER, FLAT 11/32"

$2.49

$

In Stock, only 3 left!

0

5

Kohler 28 032 09-S

SEAL, GOVERNOR CROSS SHAFT

$4.49

$

In Stock, only 4 left!

0

6

Kohler 24 144 38-S

SHAFT, GOVERNOR CROSS
(Superseded to 24 144 39-S)

$52.99

$

In Stock, only 1 left!

0

8

Kohler 52 139 02-S

PLUG, HD PIPE 3/8"

$8.49

$

In Stock, only 2 left!

0

9

Kohler 24 032 19-S

SEAL, OIL (HELIX LIP)

$9.49

$

In Stock, Qty 20+

0

16

Kohler 24 067 30-S

ROD ASSY,CONNECTING USE 24 067 34-S
(Superseded to 25 067 04-S)

$75.99

$

In Stock, Qty 14

0

18

Kohler 24 380 16-S

PIN, LOCATING

$4.49

$

Usually ships in 2-5 days

0

19

Kohler 24 874 50-S

PISTON W/RINGS (STYLE A)(STD) - USE 24 874 58-S
(Superseded to 24 874 58-S)

$180.99

$

Usually ships in 2-5 days

0

19

Kohler 24 874 51-S

PISTON W/RINGS (STYLE A)(.08) - DISCONTINUED

$

$

Not available

20

Kohler 24 018 01-S

RETAINER, PISTON PIN

$3.49

$

In Stock, Qty 14

0

21

Kohler 24 108 18-S

RING SET (STYLE A)(STD) 1.5MM TOP RING THICKNESS USE PISTON ASSY PER SPEC - Discontinued
(Superseded to 24 108 19-S)

$

$

Not available

22

Kohler 52 139 09-S

PLUG, CUP

$4.99

$

In Stock, Qty 5

0
