ECH650-3040 - Kohler Command PRO EFI Engine, Basic Version, 21hp, 15.7kW 05 Ignition/Charging Parts Diagram

Command PRO EFI Engine, Basic Version, 21hp, 15.7kW

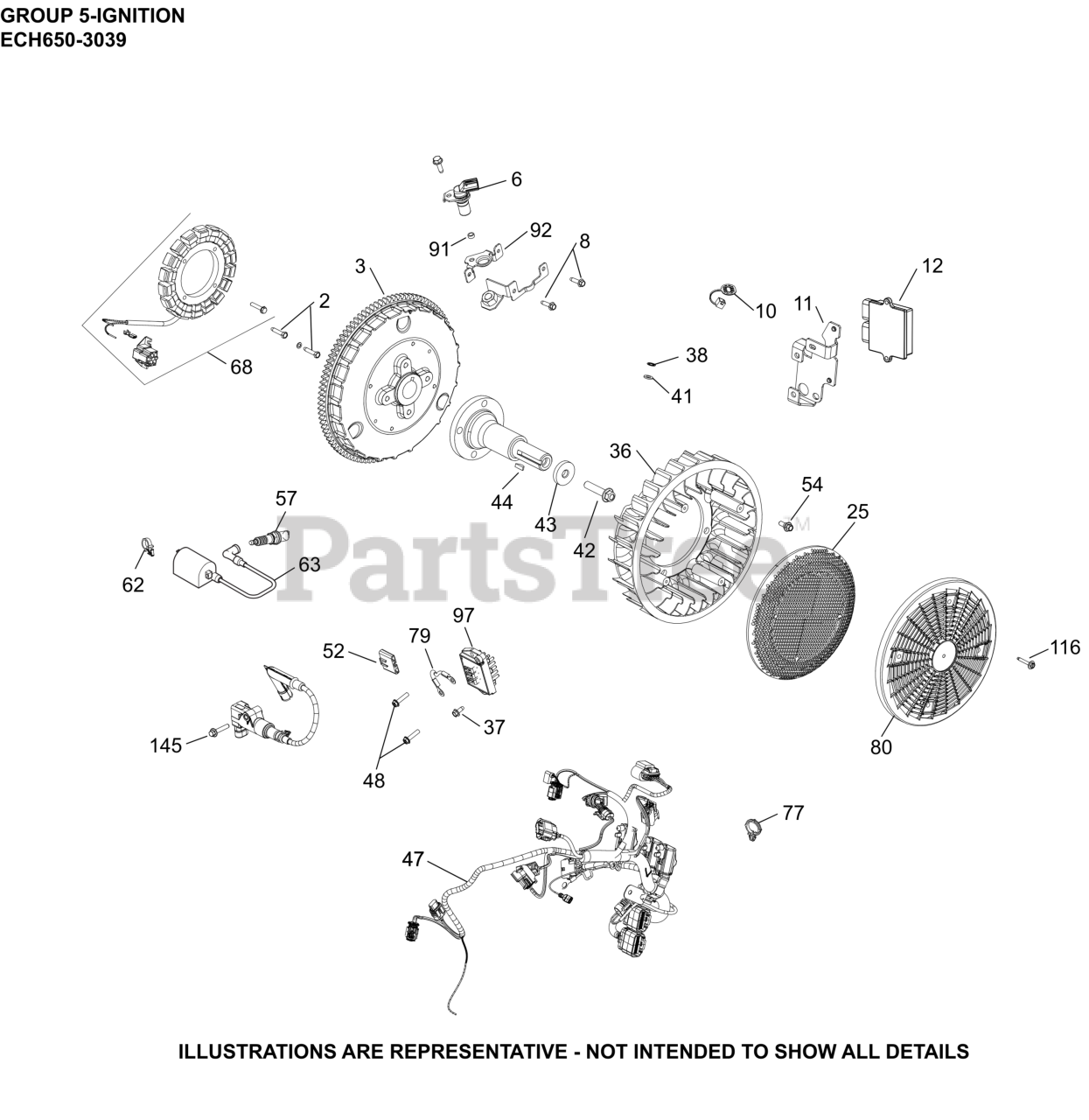

05 Ignition/Charging Parts Diagram

  • Title

2

Kohler 25 086 412-S

SCREW, THREAD FORMING

$2.49

$

Usually ships in 2-5 days

0

3

Kohler 24 025 100-S

FLYWHEEL, ASSEMBLY-(#24025115S)

$235.99

$

Usually ships in 2-5 days

0

6

Kohler 25 418 01-S

SENSOR, SPEED

$

$

Not available

8

Kohler 25 086 398-S

SCREW, THREAD FORMING

$4.49

$

In Stock, only 1 left!

0

10

Kohler 24 173 08-S

CAP, CONNECTOR

$8.99

$

Usually ships in 2-5 days

0

11

Kohler 24 126 197-S

BRACKET, ECU

$8.49

$

Usually ships in 2-5 days

0

25

Kohler 54 755 15-S

KIT GRASS SCREEN

$41.99

$

In Stock, only 2 left!

0

36

Kohler 24 157 11-S

FAN-USE 24 755 253-S
(Superseded to 24 755 253-S)

$50.99

$

In Stock, only 2 left!

0

37

Kohler 25 086 693-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 2 left!

0

38

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

$2.49

$

In Stock, only 3 left!

0

41

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

In Stock, only 2 left!

0

44

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 20+

0

47

Kohler 24 176 258-S

HARNESS, WIRING ASSEMBLY

$269.99

$

In Stock, only 2 left!

0

48

Kohler 25 086 157-S

SCREW, HEX FLANGE HI-LO

$2.99

$

In Stock, only 2 left!

0

52

Kohler 25 155 41-S

CONNECTOR

$31.99

$

In Stock, only 2 left!

0

54

Kohler 25 086 47-S

BOLT, SHOULDER

$2.99

$

In Stock, Qty 20+

0

57

Kohler 25 132 14-S

SPARK PLUG, RFI

$15.99

$

Usually ships in 2-5 days

0

62

Kohler 62 154 05-S

CLIP

$11.99

$

Usually ships in 2-5 days

0

63

Kohler 25 519 04-S

COIL, IGNITION - EFI (RFI/EMC)

$215.99

$

In Stock, only 2 left!

0

68

Kohler 28 085 02-S

KIT, 25 AMP STATOR ASSY.

$194.99

$

In Stock, only 2 left!

0

77

Kohler 25 018 05-S

RETAINER, WIRE HARNESS
(Superseded to 25 154 27-S)

$

$

Not available

79

Kohler 24 518 43-S

LEAD

$2.99

$

Usually ships in 2-5 days

0

80

Kohler 24 162 44-S

SCREEN, GRASS

$16.99

$

In Stock, only 1 left!

0

91

Kohler 25 112 27-S

SPACER

$2.49

$

Usually ships in 2-5 days

0

92

Kohler 25 126 18-S

BRACKET, SENSOR

$5.49

$

In Stock, only 1 left!

0

97

Kohler 25 403 39-S

REGULATOR, RECT (20-30AMP, FW W/OVP)
(Superseded to 25 403 48-S)

$87.99

$

In Stock, only 4 left!

0

116

Kohler 25 086 117-S

SCREW, FLG SEMS M4x.7x25

$3.49

$

In Stock, only 4 left!

0

NI

Kohler 24 584 217-S

MODULE, ECU ECH650

$277.99

$

Usually ships in 2-5 days

0

NI

Kohler 25 086 361-S

SCREW, HEX FLANGE

$4.49

$

Usually ships in 2-5 days

0

NI

Kohler 25 086 786-S

SCREW, HEX FLANGE

$2.49

$

In Stock, only 2 left!

0

NI

Kohler 25 468 09-S

WASHER, FLAT

$6.49

$

In Stock, only 2 left!

0
