ECH749-3140 - Kohler Command PRO EFI Engine, Made for Lincoln, 26.5hp, 19.8kW 03 Lubrication Parts Diagram

Command PRO EFI Engine, Made for Lincoln, 26.5hp, 19.8kW

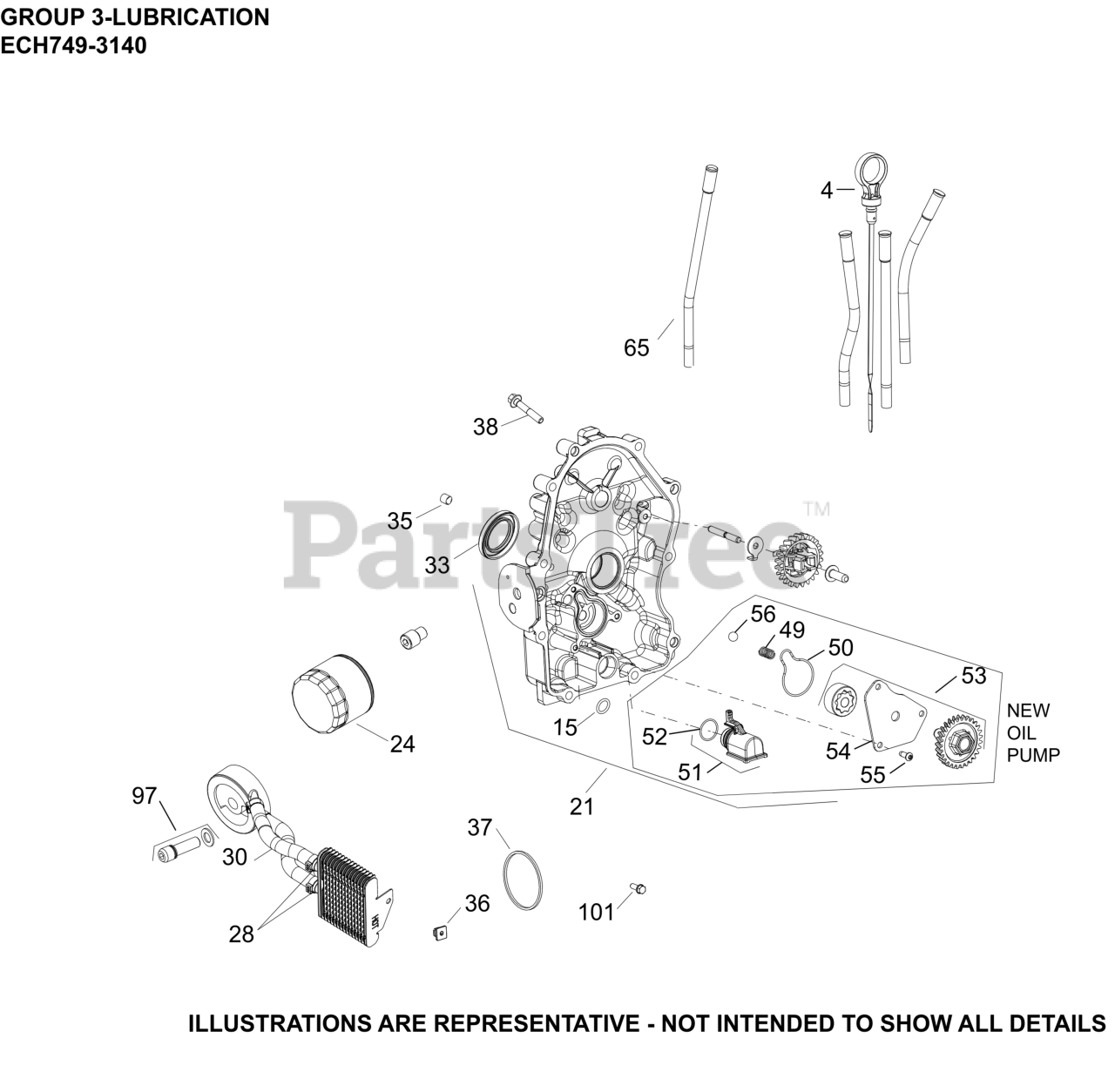

03 Lubrication Parts Diagram

  • Title

4

Kohler 24 038 16-S

DIPSTICK

$9.99

$

Usually ships in 2-5 days

0

15

Kohler 24 153 08-S

O-RING

$7.99

$

In Stock, only 3 left!

0

21

Kohler 24 009 244-S

CLOSURE PLATE ASSEMBLY (SERVICE)

$297.99

$

Usually ships in 2-5 days

0

24

Kohler 12 050 01-S

OIL FILTER

$18.99

$

In Stock, Qty 20+

0

28

Kohler 24 237 16-S

CLAMP, HOSE LOW PROFILE

$5.49

$

In Stock, Qty 5

0

30

Kohler 24 326 17-S

KIT, HOSE 140MM

$22.99

$

Usually ships in 2-5 days

0

33

Kohler 25 032 06-S

OIL SEAL

$12.99

$

In Stock, Qty 20+

0

35

Kohler 25 139 60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 2 left!

0

36

Kohler 25 100 37-S

NUT, PLASTIC - BLACK

$2.49

$

In Stock, only 4 left!

0

37

Kohler 24 153 21-S

O-RING, OIL COOLER

$6.49

$

In Stock, Qty 11

0

38

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$2.99

$

In Stock, Qty 20+

0

38

Kohler 25 086 317-S

SCREW, HEX FLANGE

$2.99

$

In Stock, Qty 20+

0

49

Kohler 24 089 74-S

SPRING, COMPRESSION

$2.49

$

In Stock, only 3 left!

0

50

Kohler 24 153 33-S

SEAL, OIL PUMP COVER

$3.49

$

In Stock, only 1 left!

0

51

Kohler 24 381 13-S

PICK-UP ASSEMBLY, OIL

$7.49

$

In Stock, only 2 left!

0

52

Kohler 24 153 34-S

O-RING, OIL PICK-UP

$2.99

$

In Stock, only 2 left!

0

53

Kohler 24 393 70-S

PUMP ASSEMBLY, OIL

$45.99

$

In Stock, only 1 left!

0

54

Kohler 24 096 151-S

COVER, OIL PUMP

$2.49

$

In Stock, only 2 left!

0

55

Kohler 25 086 792-S

SCREW, BUTTON HEAD

$2.49

$

In Stock, only 2 left!

0

56

Kohler 25 194 03-S

PRESSURE RELIEF BALL

$2.99

$

In Stock, only 2 left!

0

65

Kohler 24 123 25-S

TUBE, DIPSTICK

$11.99

$

Usually ships in 2-5 days

0

97

Kohler 24 136 10-S

KIT, OIL FILTER NIPPLE

$13.99

$

In Stock, only 2 left!

0

101

Kohler 25 086 784-S

SCREW, HEX HEAD

$2.49

$

In Stock, only 3 left!

0

NI

Kohler 24 029 80-S

ADAPTER,OIL FILTER (CV EFI)-(#DSC)

$209.99

$

Usually ships in 0 days

0

NI

Kohler 24 594 57-S

COOLER,OIL&DIVERTER ASSY-USE 24 594 69-S
(Superseded to 24 594 69-S)

$209.99

$

In Stock, only 2 left!

0

NI

Kohler 24 755 425-S

KIT, OIL PRESSURE SWITCH + BOOT

$29.99

$

In Stock, only 2 left!

0
