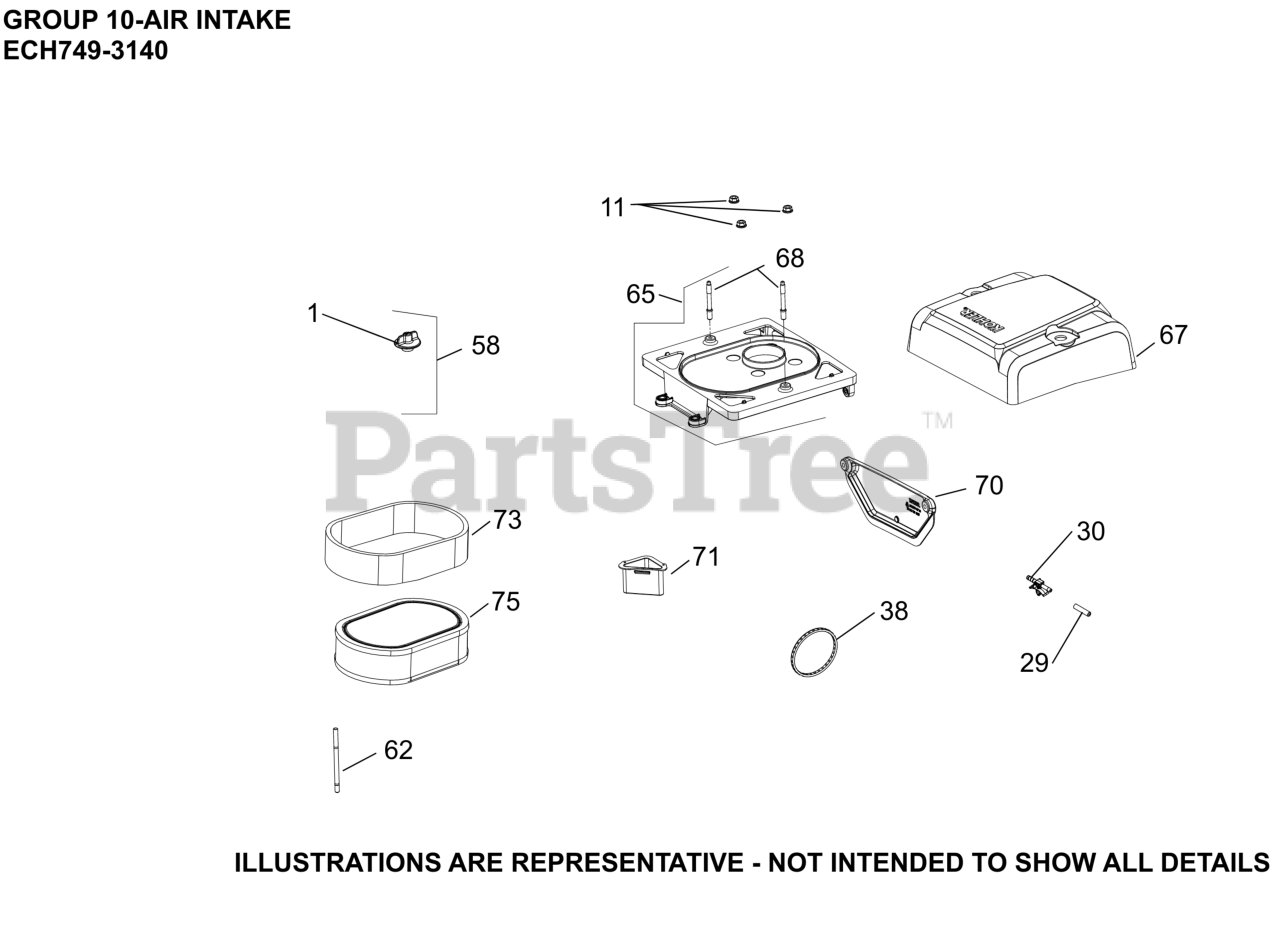

ECH749-3140 - Kohler Command PRO EFI Engine, Made for Lincoln, 26.5hp, 19.8kW 10 Air Intake Parts Diagram

Command PRO EFI Engine, Made for Lincoln, 26.5hp, 19.8kW

10 Air Intake Parts Diagram

  • Title

1

Kohler 25 341 04-S

KNOB, COVER

$7.99

$

Usually ships in 2-5 days

0

11

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 12

0

29

Kohler 25 173 33-S

CAP, MASKING

$2.49

$

In Stock, only 1 left!

0

30

Kohler 25 155 51-S

CONNECTOR, EVAPORATIVE

$13.99

$

In Stock, only 2 left!

0

38

Kohler 24 153 31-S

O-RING (HDAC SEAL-EFI)

$3.99

$

Usually ships in 2-5 days

0

58

Kohler 54 755 01-S

KIT, KNOB W/SEAL

$9.49

$

In Stock, Qty 15

0

62

Kohler 25 072 35-S

STUD

$2.49

$

Usually ships in 2-5 days

0

65

Kohler 24 094 128-S

BASE, AIR CLEANER ASSEMBLY (LPAC-ETB)

$34.99

$

Usually ships in 2-5 days

0

67

Kohler 24 096 169-S

COVER, AIR CLEANER (LPAC - ETB)

$22.99

$

Usually ships in 2-5 days

0

68

Kohler 25 072 39-S

STUD, 6.3 X 1.69 HI-LO / M6 X 1

$2.99

$

Usually ships in 2-5 days

0

70

Kohler 24 096 170-S

COVER, ETB (HORIZONTAL LPAC)

$8.49

$

Usually ships in 2-5 days

0

71

Kohler 24 281 19-S

DUCT, AIR (LPAC - ETB)

$3.99

$

Usually ships in 2-5 days

0

73

Kohler 24 083 15-S

ELEMENT, PRE-CLEANER

$7.49

$

Usually ships in 2-5 days

0

75

Kohler 24 083 17-S

ELEMENT, AIR FILTER (ETB)

$31.99

$

In Stock, only 1 left!

0

NI

Kohler 24 126 273-S

BRACKET, LPAC SUPPORT (ETB)

$47.99

$

Usually ships in 2-5 days

0

NI

Kohler 25 086 776-S

SCREW, HEAVY HEX FLANGE

$2.49

$

In Stock, only 2 left!

0

NI

Kohler 25 326 102-S

HOSE, EVAPORATIVE

$3.99

$

Usually ships in 2-5 days

0

NI

Kohler 25 326 120-S

HOSE, ASSEMBLY

$11.99

$

Usually ships in 2-5 days

0

NI

Kohler 25 326 71-S

HOSE EVAPORATIVE (WALBRO)

$2.49

$

In Stock, only 2 left!

0

NI

Kohler 25 431 50-S

SLEEVE, ANTI ABRASION

$16.99

$

Usually ships in 2-5 days

0
