ECH749-3154 - Kohler Command PRO EFI Engine, Basic Version, 26.5hp, 19.8kW 11 Exhaust Parts Diagram

Command PRO EFI Engine, Basic Version, 26.5hp, 19.8kW

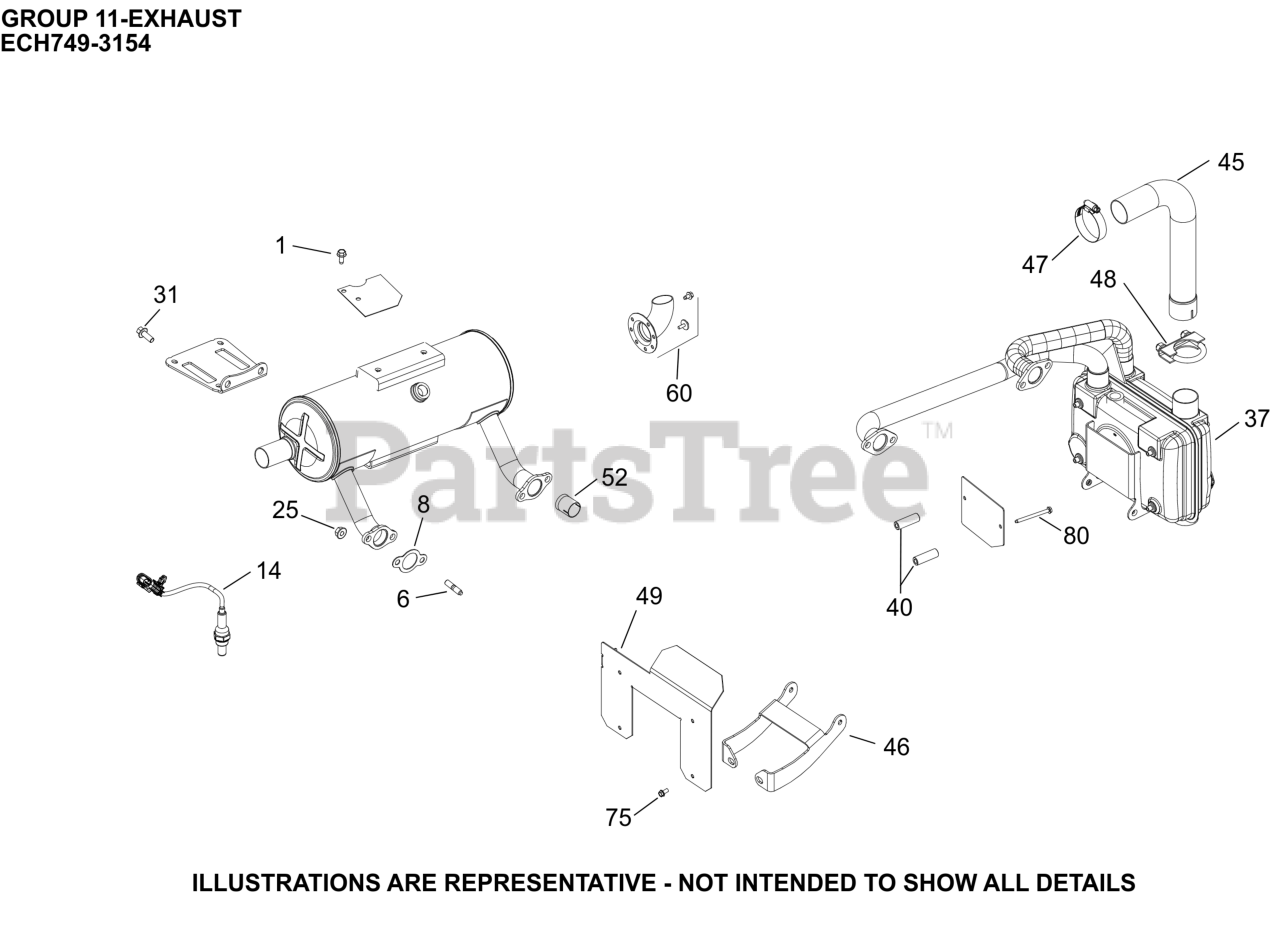

11 Exhaust Parts Diagram

  • Title

1

Kohler 25 086 397-S

SCREW, THREAD FORMING

$4.99

$

Usually ships in 2-5 days

0

6

Kohler 25 072 24-S

STUD, METRIC EXHAUST

$5.49

$

In Stock, Qty 12

0

8

Kohler 25 041 17-S

GASKET, EXHAUST MANIFOLD

$2.99

$

In Stock, Qty 20+

0

14

Kohler 25 418 23-S

SENSOR, OXYGEN (M18 x 1.5 THREADS)

$119.99

$

In Stock, Qty 7

0

25

Kohler M-841080-S

NUT, FLG M8X1.25

$2.49

$

In Stock, Qty 20+

0

31

Kohler M-839020-S

SCREW, FLG M8X1.25X20

$2.49

$

In Stock, only 2 left!

0

37

Kohler 24 068 161-S

MUFFLER, ASSEMBLY

$463.99

$

Usually ships in 2-5 days

0

40

Kohler 25 112 23-S

SPACER, ECU GUARD

$5.99

$

Usually ships in 2-5 days

0

45

Kohler 24 123 26-S

TUBE, CONNECTOR

$63.99

$

Usually ships in 2-5 days

0

46

Kohler 24 126 67-S

BRACKET, MUFFLER

$128.99

$

Usually ships in 2-5 days

0

47

Kohler 24 237 02-S

CLAMP, HOSE

$5.49

$

Usually ships in 2-5 days

0

48

Kohler 24 237 13-S

CLAMP, MUFFLER

$12.99

$

Usually ships in 2-5 days

0

49

Kohler 24 314 44-S

SHIELD,HEAT(STRTR SIDE CH26/745)

$62.99

$

Usually ships in 2-5 days

0

52

Kohler 24 605 07-S

LINER, EXHAUST PORT

$22.99

$

In Stock, only 3 left!

0

60

Kohler 12 755 28-S

KIT, DEFLECTOR-PIPE

$57.99

$

In Stock, only 1 left!

0

75

Kohler 25 086 687-S

SCREW, SERRATED

$2.49

$

Usually ships in 2-5 days

0

80

Kohler 25 086 757-S

SCREW, HEX WASHER HEAD

$3.99

$

Usually ships in 2-5 days

0
