ECH940-3016 - Kohler Command PRO EFI Engine, Basic Version, 35hp 05 Ignition/Charging Parts Diagram

Command PRO EFI Engine, Basic Version, 35hp

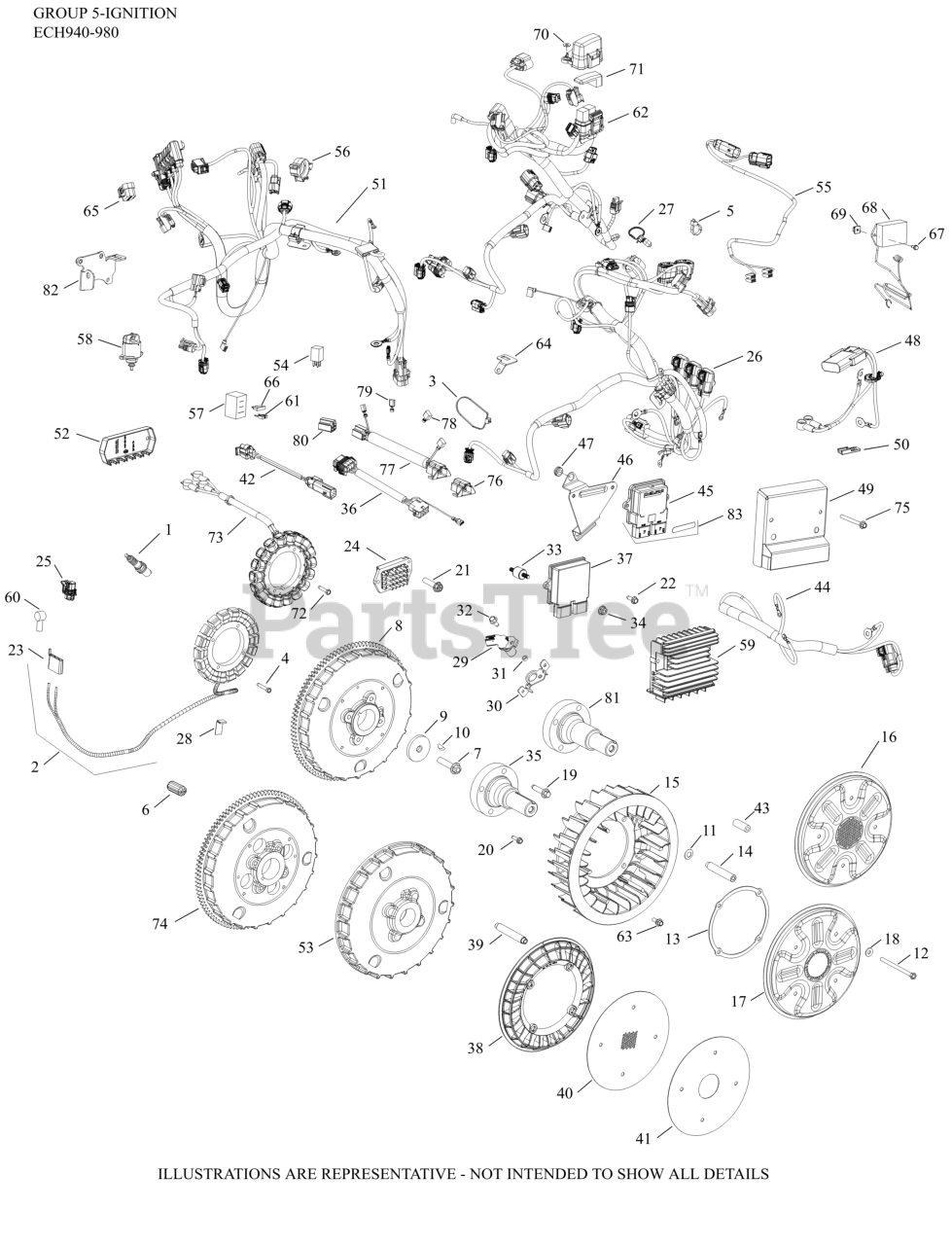

05 Ignition/Charging Parts Diagram

  • Title

1

Kohler 62 132 04-S

PLUG, SPARK

$13.99

$

Usually ships in 2-5 days

0

2

Kohler 28 085 02-S

KIT, 25 AMP STATOR ASSY.

$194.99

$

In Stock, only 3 left!

0

3

Kohler 12 454 03-S

TIE, CABLE

$3.49

$

Usually ships in 2-5 days

0

4

Kohler 25 086 412-S

SCREW, THREAD FORMING

$2.49

$

Usually ships in 2-5 days

0

5

Kohler 25 454 03-S

TIE, WIRE

$2.49

$

Usually ships in 2-5 days

0

6

Kohler 25 431 43-S

SLEEVE, EMI SUPPRESSION

$11.99

$

Usually ships in 2-5 days

0

7

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45-USE 25 086 361-S
(Superseded to 25 086 361-S)

$4.49

$

In Stock, Qty 9

0

8

Kohler 62 025 21-S

FLYWHEEL ASSEMBLY
(Superseded to 62 025 27-S)

$359.99

$

Usually ships in 2-5 days

0

9

Kohler 62 468 01-S

WASHER, FLAT 13/32"

$5.49

$

Usually ships in 2-5 days

0

10

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 20+

0

11

Kohler 24 468 11-S

WASHER, SPRING 10 MM

$2.49

$

In Stock, Qty 20+

0

12

Kohler 25 086 647-S

SCREW, HEX HEAD

$3.49

$

In Stock, Qty 8

0

13

Kohler 25 141 08-S

RING, SUPPORT

$6.49

$

In Stock, Qty 6

0

14

Kohler 62 112 13-S

SPACER, GRASS SCREEN

$4.49

$

In Stock, only 4 left!

0

15

Kohler 62 157 04-S

FAN
(Superseded to 62 157 06-S)

$14.99

$

In Stock, only 2 left!

0

16

Kohler 62 162 18-S

SCREEN, GRASS

$46.99

$

In Stock, only 2 left!

0

18

Kohler X-25-53-S

WASHER, FLAT 1/4" (O.D. 5/8")

$3.49

$

In Stock, Qty 14

0

20

Kohler 25 086 473-S

SCREW, THREAD FORMING

$3.49

$

In Stock, Qty 20+

0

21

Kohler 25 086 157-S

SCREW, HEX FLANGE HI-LO

$2.99

$

In Stock, only 1 left!

0

22

Kohler 25 086 398-S

SCREW, THREAD FORMING

$4.49

$

In Stock, Qty 18

0

23

Kohler 25 155 41-S

CONNECTOR

$31.99

$

In Stock, Qty 14

0

24

Kohler 25 403 39-S

REGULATOR, RECT (20-30AMP, FW W/OVP)
(Superseded to 25 403 48-S)

$87.99

$

In Stock, Qty 20+

0

26

Kohler 62 176 29-S

HARNESS, WIRING ASSEMBLY - EFI
(Superseded to 62 176 44-S)

$506.99

$

Usually ships in 2-5 days

0

27

Kohler 25 454 09-S

TIE, WIRE

$2.49

$

In Stock, only 2 left!

0

28

Kohler 62 154 09-S

CLIP, BLOWER HOUSING

$2.49

$

Usually ships in 2-5 days

0

29

Kohler 25 418 01-S

SENSOR, SPEED

$41.99

$

In Stock, only 2 left!

0

30

Kohler 62 126 74-S

BRACKET, CRANK SENSOR

$2.99

$

Usually ships in 2-5 days

0

31

Kohler 25 112 27-S

SPACER

$2.49

$

In Stock, only 1 left!

0

32

Kohler 25 086 397-S

SCREW, THREAD FORMING

$4.99

$

In Stock, Qty 9

0

33

Kohler 25 384 02-S

ISOLATOR, VIBRATION STUD

$12.99

$

Usually ships in 2-5 days

0

34

Kohler M-541050-S

NUT, FLG M5X.8

$2.99

$

In Stock, Qty 5

0

37

Kohler 62 584 39-S

MODULE, ECU
(Superseded to 62 584 60-S)

$264.99

$

Usually ships in 2-5 days

0

NI

Kohler 25 173 53-S

CAP, CONNECTOR (4-WAY, BLACK)

$3.49

$

Usually ships in 2-5 days

0
