ECV870-3020 - Kohler Command PRO EFI Engine, Made for Husqvarna, 31hp 03 Lubrication Parts Diagram

Command PRO EFI Engine, Made for Husqvarna, 31hp

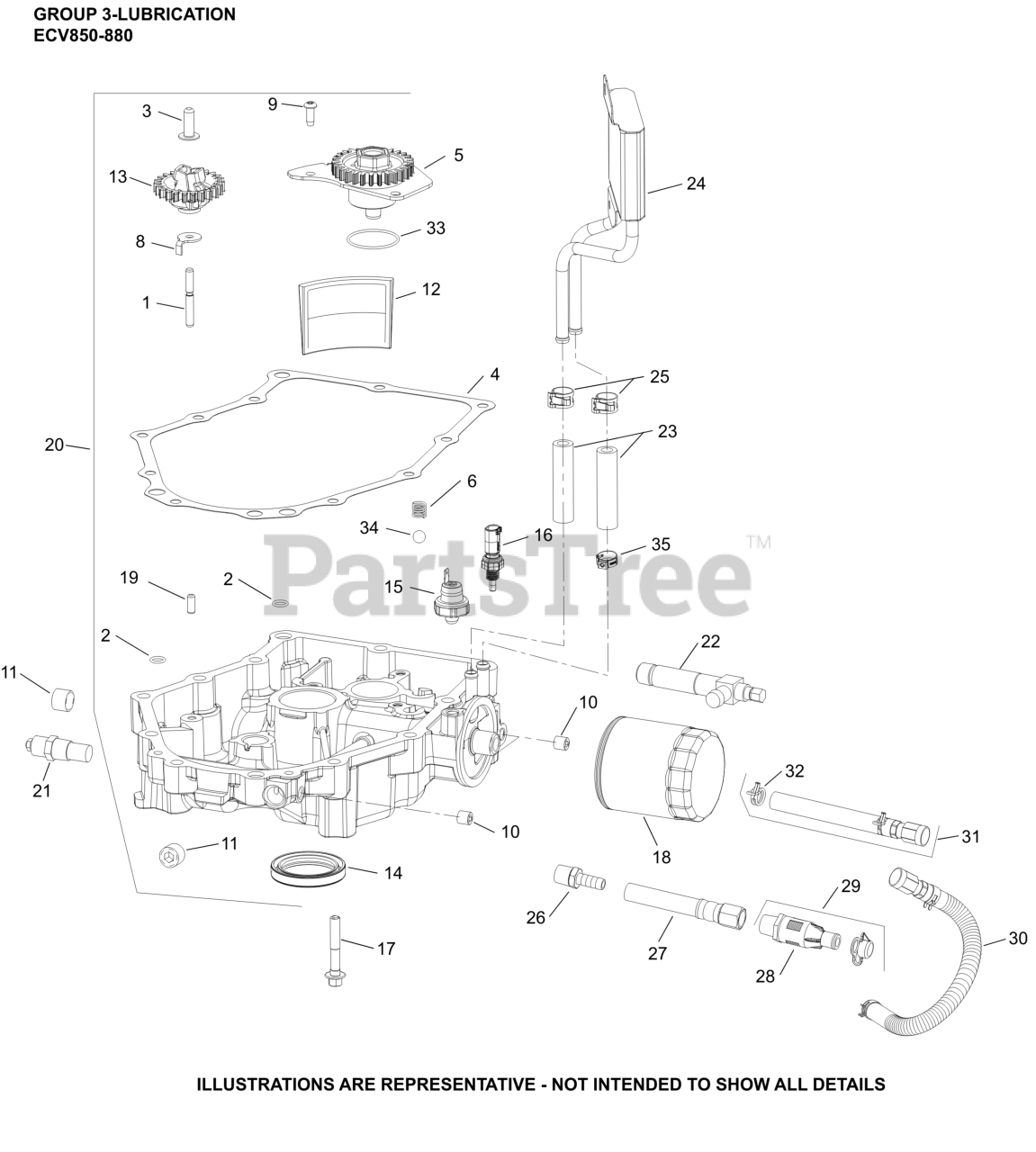

03 Lubrication Parts Diagram

  • Title

1

Kohler 12 144 02-S

SHAFT, GOVERNOR GEAR

$4.49

$

In Stock, only 2 left!

0

2

Kohler 12 153 04-S

O-RING (.5" DIA)

$3.49

$

In Stock, only 1 left!

0

3

Kohler 12 380 01-S

PIN, GOVERNOR REGULATING

$3.49

$

In Stock, only 4 left!

0

4

Kohler 19 041 11-S

GASKET, OIL PAN

$24.99

$

In Stock, only 1 left!

0

5

Kohler 19 393 04-S

PUMP ASSEMBLY, OIL

$30.99

$

In Stock, only 2 left!

0

6

Kohler 24 089 74-S

SPRING, COMPRESSION

$2.49

$

In Stock, only 3 left!

0

7

Kohler 24 139 02-S

PLUG, CUP

$8.49

$

Usually ships in 2-5 days

0

8

Kohler 24 448 02-S

TAB, LOCKING

$2.49

$

In Stock, only 2 left!

0

9

Kohler 25 086 414-S

SCREW, BUTTON HEAD
(Superseded to 25 086 792-S)

$2.49

$

In Stock, only 2 left!

0

10

Kohler 25 139 60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 2 left!

0

11

Kohler 25 139 62-S

PLUG, PIPE CTSK 3/8"

$3.49

$

In Stock, only 1 left!

0

12

Kohler 32 162 06-S

SCREEN, OIL

$5.49

$

In Stock, only 2 left!

0

13

Kohler 32 310 02-S

KIT, GOVERNOR GEAR

$12.99

$

In Stock, only 2 left!

0

14

Kohler 25 032 18-S

SEAL, OIL PTO SIDE, BROWN

$10.99

$

Usually ships in 2-5 days

0

15

Kohler 24 099 03-S

SENSOR, OIL PSI
(Superseded to 24 755 425-S)

$29.99

$

In Stock, only 2 left!

0

16

Kohler 25 418 02-S

SENSOR, TEMPERATURE

$40.99

$

In Stock, only 2 left!

0

17

Kohler 25 086 618-S

SCREW, HEX FLANGE

$3.49

$

Usually ships in 2-5 days

0

18

Kohler 52 050 02-S

OIL FILTER
(Superseded to 52-050-02-S)

$16.99

$

In Stock, Qty 20+

0

20

Kohler 19 199 37-S

KIT, OIL PAN (EGOV - W/OIL COOLER)

$420.99

$

Usually ships in 2-5 days

0

20

Kohler 19 199 38-S

KIT, OIL PAN (MECH GOV W/OIL COOLER)

$429.99

$

Usually ships in 2-5 days

0

23

Kohler 19 326 04-S

HOSE, OIL COOLER

$5.99

$

In Stock, only 4 left!

0

24

Kohler 19 594 03-S

COOLER, OIL

$115.99

$

Usually ships in 2-5 days

0

33

Kohler 12 153 05-S

O-RING (1.78" DIA)

$10.99

$

In Stock, only 2 left!

0

34

Kohler 25 194 03-S

PRESSURE RELIEF BALL

$2.99

$

In Stock, only 2 left!

0

35

Kohler 25 237 54-S

CLAMP, HOSE OETIKER

$1.99

$

Usually ships in 2-5 days

0
