ECV940-3020 - Kohler Command PRO EFI Engine, Made for Konig Industries, 33hp 10 Air Intake Parts Diagram

Command PRO EFI Engine, Made for Konig Industries, 33hp

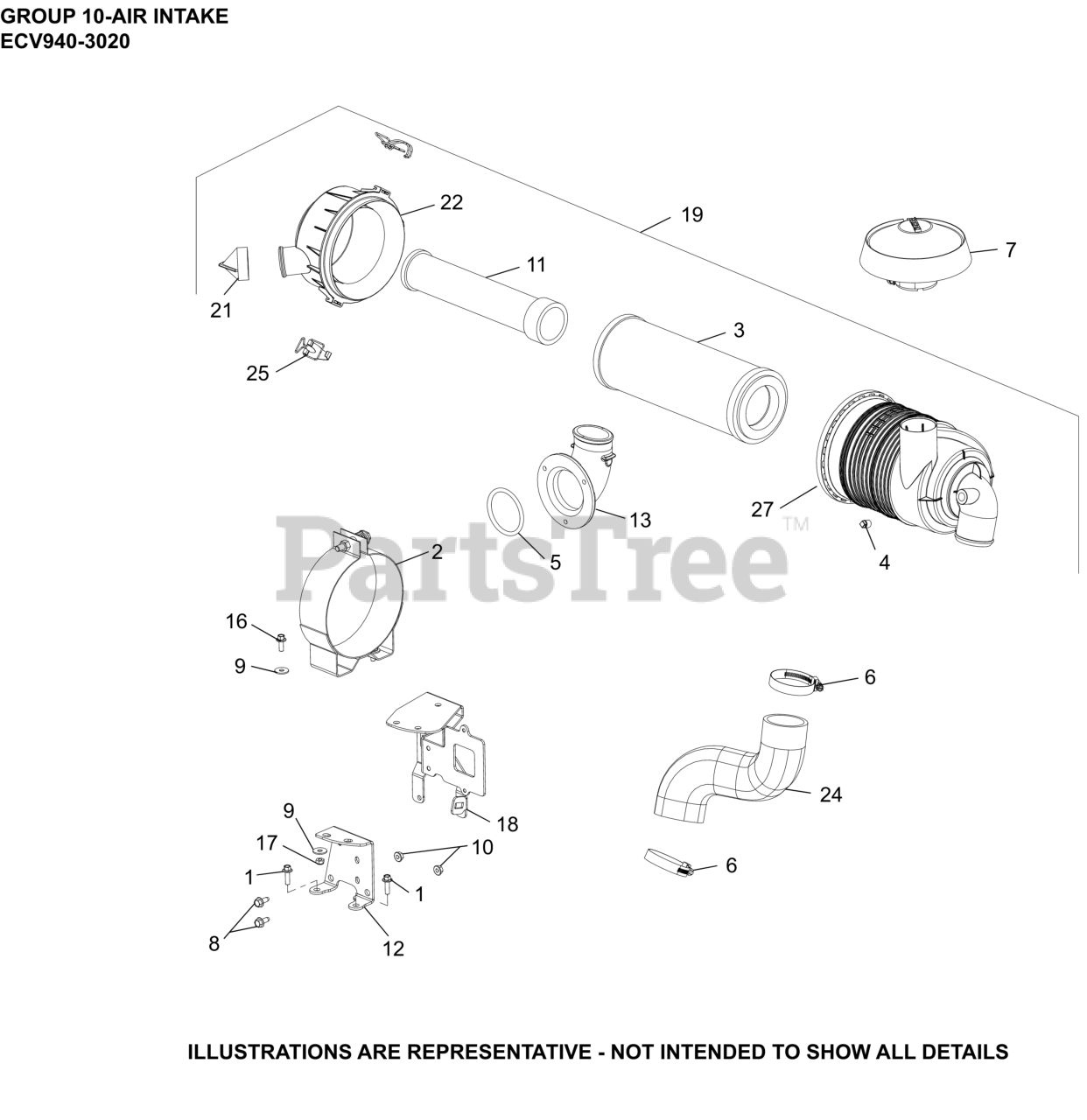

10 Air Intake Parts Diagram

  • Title

1

Kohler M-651020-S

SCREW, FLG M6x1.0x20

$2.49

$

In Stock, only 3 left!

0

2

Kohler 24 126 191-S

BRACKET, AIR CLEANER

$96.99

$

In Stock, only 2 left!

0

3

Kohler 25 083 01-S

ELEMENT, AIR FILTER - PRIMARY

$33.99

$

In Stock, Qty 12

0

4

Kohler 25 139 20-S

PLUG, PIPE

$9.99

$

Usually ships in 2-5 days

0

5

Kohler 25 153 08-S

O-RING, AIR CLEANER BASE

$2.99

$

In Stock, only 2 left!

0

6

Kohler 25 237 21-S

CLAMP, HOSE

$7.99

$

In Stock, only 2 left!

0

7

Kohler 25 324 04-S

HOOD, INLET

$49.99

$

In Stock, Qty 5

0

8

Kohler 25 086 397-S

SCREW, THREAD FORMING

$4.99

$

In Stock, Qty 9

0

9

Kohler X-25-52-S

WASHER, FLAT 1/4"

$3.99

$

In Stock, only 2 left!

0

10

Kohler M-641060-S

NUT, FLG M6X1.0

$4.99

$

In Stock, Qty 6

0

11

Kohler 25 083 04-S

ELEMENT, AIR FILTER - SAFETY

$32.99

$

In Stock, Qty 20+

0

12

Kohler 62 126 75-S

BRACKET,UPPER REMOTE A/C MOUNTING

$29.99

$

Usually ships in 2-5 days

0

13

Kohler 25 054 18-S

ELBOW, MACHINING AIR CLEANER

$108.99

$

Usually ships in 2-5 days

0

16

Kohler M-639016-S

SCREW, FLG M6X1.0X16

$2.49

$

In Stock, only 1 left!

0

17

Kohler M-647060-S

NUT, LOCK M6X1.0

$2.49

$

In Stock, only 2 left!

0

18

Kohler 62 126 70-S

BRACKET, LOWER REMOTE A/C MOUNTING

$33.99

$

Usually ships in 2-5 days

0

19

Kohler 25 048 11-S

AIR CLEANER ASSY-USE 25 048 17-S
(Superseded to 25 048 17-S)

$155.99

$

In Stock, only 1 left!

0

21

Kohler 24 462 07-S

VALVE, DUST EJECTOR

$27.99

$

In Stock, Qty 5

0

22

Kohler 25 096 06-S

COVER ASSEMBLY, AIR CLEANER

$134.99

$

In Stock, only 1 left!

0

24

Kohler 62 326 35-S

HOSE, AIR CLEANER

$32.99

$

Usually ships in 2-5 days

0

25

Kohler 62 154 07-S

CLIP ASSEMBLY

$13.99

$

In Stock, only 2 left!

0

27

Kohler 25 081 01-S

HOUSING, HD AIR CLEANER

$140.99

$

In Stock, only 1 left!

0

NI

Kohler 62 584 63-S

MODULE, ECU ECV940

$290.99

$

Usually ships in 2-5 days

0
