ECV940-3021 - Kohler Command PRO EFI Engine, Made for Konig Industries, 33hp 04 CylinderHead/Breather Parts Diagram

Command PRO EFI Engine, Made for Konig Industries, 33hp

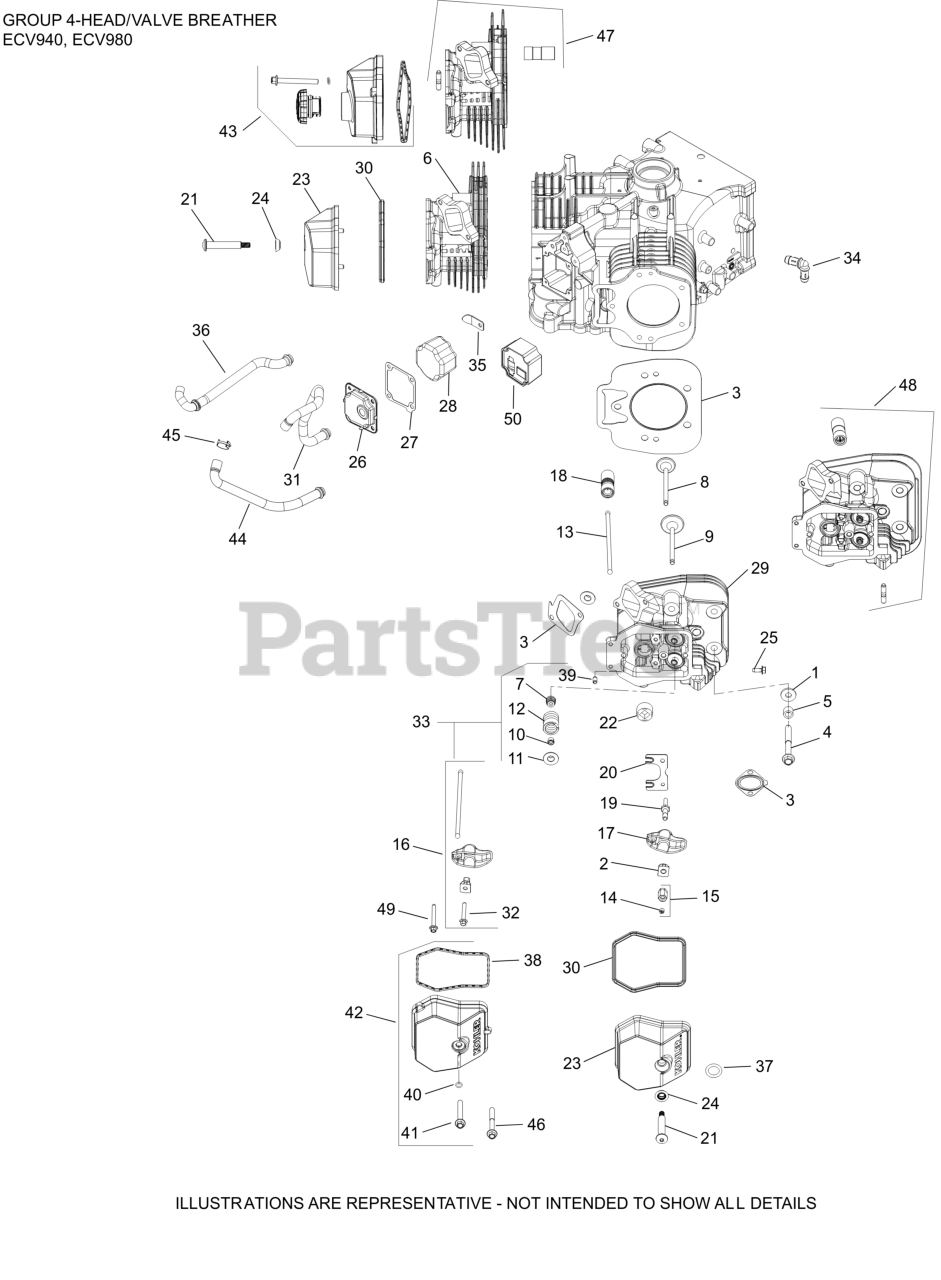

04 CylinderHead/Breather Parts Diagram

  • Title

1

Kohler 12 468 05-S

WASHER, FLAT 13/32"

$2.99

$

In Stock, Qty 12

0

2

Kohler 24 599 02-S

PIVOT, ROCKER ARM

$2.49

$

In Stock, Qty 20+

0

3

Kohler 62 841 01-S

KIT, CYLINDER HEAD GASKET

$34.99

$

In Stock, only 2 left!

0

4

Kohler 62 086 08-S

SCREW, FLG M10X1.5X90

$5.99

$

In Stock, Qty 20+

0

5

Kohler 62 112 03-S

SPACER

$2.49

$

In Stock, Qty 10

0

7

Kohler 25 032 14-S

SEAL, VALVE BAND

$11.99

$

In Stock, Qty 20+

0

8

Kohler 62 016 02-S

VALVE, EXHAUST

$76.99

$

In Stock, only 1 left!

0

9

Kohler 62 017 01-S

VALVE, INTAKE

$43.99

$

Usually ships in 2-5 days

0

10

Kohler 12 755 03-S

KIT, RETAINER

$5.99

$

In Stock, Qty 18

0

11

Kohler 25 173 28-S

CAP, VALVE SPRING

$8.49

$

In Stock, Qty 9

0

12

Kohler 62 089 54-S

SPRING, VALVE

$3.49

$

Usually ships in 2-5 days

0

13

Kohler 12 411 04-S

ROD, PUSH

$6.49

$

In Stock, Qty 8

0

17

Kohler 25 186 01-S

ARM, ROCKER

$12.99

$

In Stock, Qty 7

0

18

Kohler 25 351 13-S

LIFTER, HYDRAULIC VALVE (SERVICE)

$

$

Currently unavailable

22

Kohler 25 139 89-S

PLUG, PIPE 3/4 NPTF SQUARE

$3.49

$

Usually ships in 2-5 days

0

25

Kohler 25 086 397-S

SCREW, THREAD FORMING

$4.99

$

In Stock, Qty 19

0

26

Kohler 62 033 06-S

KIT, BREATHER ASSEMBLY

$58.99

$

Usually ships in 2-5 days

0

27

Kohler 62 041 27-S

GASKET, BREATHER

$2.99

$

In Stock, only 3 left!

0

38

Kohler 62 032 22-S

SEAL, ALUMINUM VALVE COVER (BLUE)

$49.99

$

Usually ships in 2-5 days

0

39

Kohler 25 380 23-S

PIN, ROLL

$2.49

$

Usually ships in 2-5 days

0

40

Kohler 25 153 23-S

O-RING, VALVE COVER SCREW

$2.49

$

Usually ships in 2-5 days

0

42

Kohler 62 096 47-S

KIT,VALVE CVR (NO FILL)-USE 62 096 50-S
(Superseded to 62 096 50-S)

$104.99

$

In Stock, Qty 8

0

42

Kohler 62 096 50-S

KIT, VALVE COVER ASSEMBLY

$104.99

$

In Stock, Qty 8

0

44

Kohler 25 237 18-S

CLAMP, SPRING HOSE

$2.49

$

In Stock, only 1 left!

0

45

Kohler 62 326 43-S

HOSE, BREATHER (ETB)

$25.99

$

Usually ships in 2-5 days

0

46

Kohler 25 086 728-S

SCREW, HEX FLANGE

$2.49

$

Usually ships in 2-5 days

0

47

Kohler 62 818 01-S

KIT, #1 CYLINDER HEAD COMPLETE

$561.99

$

In Stock, only 1 left!

0

48

Kohler 62 818 02-S

KIT, #2 CYLINDER HEAD COMPLETE

$561.99

$

Usually ships in 2-5 days

0

49

Kohler 25 086 777-S

SCREW, HEX FLANGE

$2.49

$

In Stock, Qty 11

0

50

Kohler 62 050 11-S

FILTER, BREATHER

$15.99

$

Usually ships in 2-5 days

0
