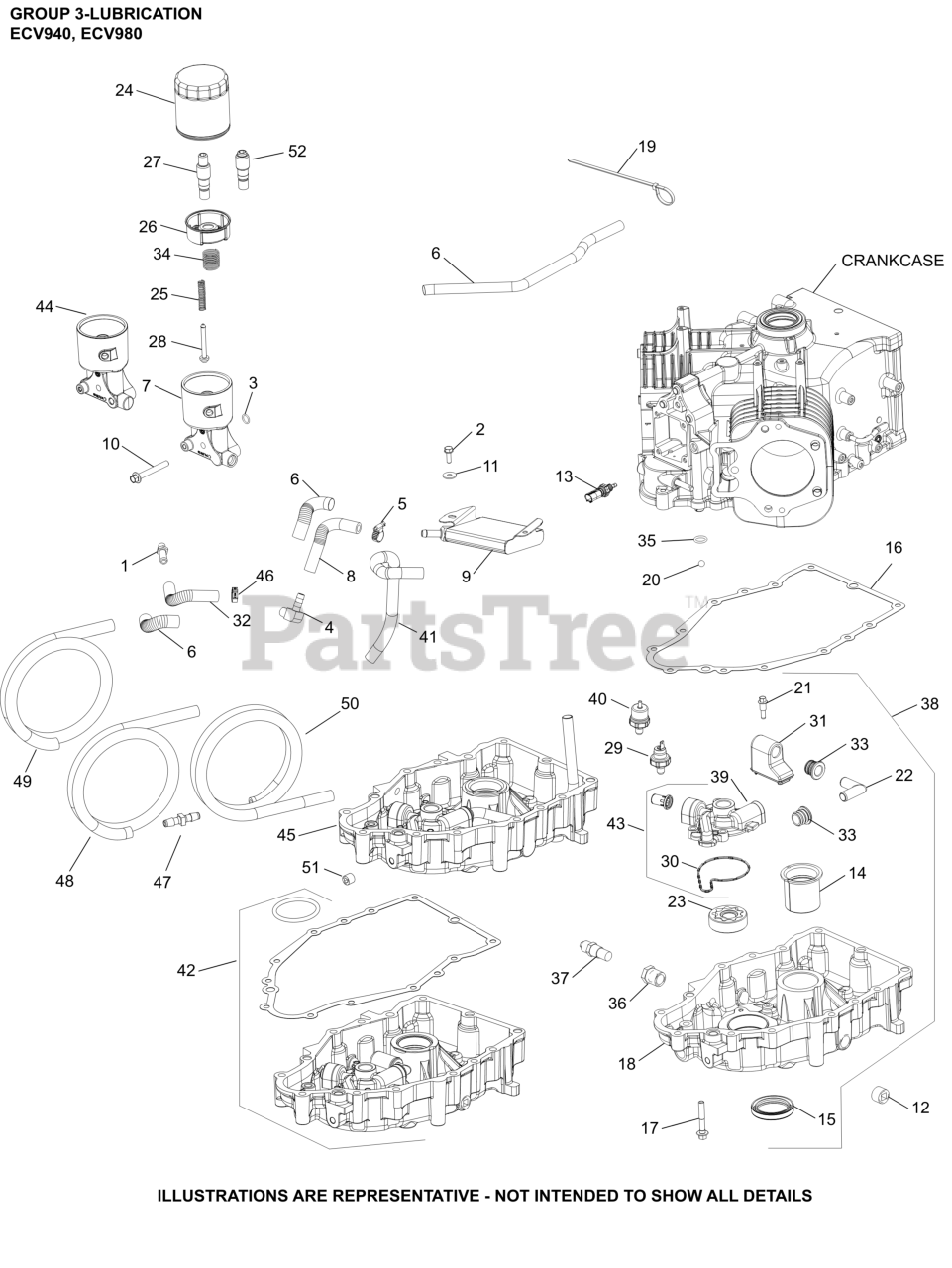

ECV980-3022 - Kohler Command PRO EFI Engine, Made for Exmark, 38hp 03 Lubrication Parts Diagram

Command PRO EFI Engine, Made for Exmark, 38hp

03 Lubrication Parts Diagram

  • Title

1

Kohler 12 294 04-S

FITTING, HOSE TO PIPE

$29.99

$

Usually ships in 2-5 days

0

3

Kohler 24 153 01-S

O-RING, OIL PICK-UP

$2.49

$

In Stock, only 3 left!

0

5

Kohler 25 237 02-S

CLAMP

$3.99

$

In Stock, only 2 left!

0

6

Kohler 25 431 16-S

SLEEVE, ANTI ABRASION-USE 25 431 12-S
(Superseded to 25 431 12-S)

$10.99

$

In Stock, only 1 left!

0

10

Kohler M-851060-S

SCREW, FLG M8X1.25X60

$4.99

$

Usually ships in 2-5 days

0

12

Kohler 25 139 74-S

PLUG, PIPE 1/2 NPTF SQ CTSK

$2.49

$

Usually ships in 2-5 days

0

13

Kohler 25 418 02-S

SENSOR, TEMPERATURE

$35.99

$

In Stock, only 1 left!

0

15

Kohler 25 032 18-S

SEAL, OIL PTO SIDE, BROWN

$9.49

$

In Stock, Qty 7

0

16

Kohler 62 041 21-S

GASKET, OIL PAN

$12.99

$

In Stock, Qty 10

0

17

Kohler 25 086 618-S

SCREW, HEX FLANGE

$2.99

$

Usually ships in 2-5 days

0

19

Kohler 12 454 03-S

TIE, CABLE

$3.49

$

Usually ships in 2-5 days

0

20

Kohler 62 194 01-S

KIT, CHECK BALL

$18.99

$

Usually ships in 2-5 days

0

21

Kohler 32 086 01-S

SCREW, SHD THD FRM M6X.0X6.5

$2.99

$

In Stock, only 1 left!

0

22

Kohler 62 123 04-S

TUBE, OIL PICK-UP

$5.49

$

Usually ships in 2-5 days

0

23

Kohler 62 393 01-S

PUMP ASSEMBLY, OIL/GEROTOR

$28.99

$

Usually ships in 2-5 days

0

25

Kohler 62 089 11-S

SPRING, OIL FILTER VALVE

$2.49

$

In Stock, only 1 left!

0

26

Kohler 62 109 02-S

CUP, OIL FILTER ASSEMBLY

$14.99

$

Usually ships in 2-5 days

0

28

Kohler 62 462 02-S

VALVE, OIL FILTER

$7.99

$

Usually ships in 2-5 days

0

29

Kohler 52 099 08-S

SWITCH, OIL PRESSURE

$62.99

$

Usually ships in 2-5 days

0

30

Kohler 62 153 04-S

O-RING, OIL PUMP HOUSING

$7.49

$

In Stock, only 1 left!

0

31

Kohler 62 081 19-S

HOUSING, OIL PICK-UP ASSEMBLY

$14.99

$

Usually ships in 2-5 days

0

33

Kohler 62 032 19-S

SEAL, PICK-UP TUBE

$2.49

$

In Stock, only 1 left!

0

34

Kohler 62 089 12-S

SPRING, OIL FILTER CUP

$2.49

$

Usually ships in 2-5 days

0

35

Kohler 24 153 08-S

O-RING

$6.49

$

Usually ships in 2-5 days

0

38

Kohler 62 199 12-S

KIT, OIL PAN

$604.99

$

Usually ships in 2-5 days

0

44

Kohler 62 081 43-S

HOUSING, VERTICAL OIL FILTER - MACHINED

$43.99

$

Usually ships in 2-5 days

0

46

Kohler 25 237 54-S

CLAMP, HOSE OETIKER

$1.99

$

Usually ships in 2-5 days

0

47

Kohler 24 294 20-S

FITTING, BREATHER

$14.99

$

Usually ships in 2-5 days

0

48

Kohler 62 326 49-S

HOSE, OIL COOLER

$27.99

$

Usually ships in 2-5 days

0

49

Kohler 25 431 59-S

SLEEVE, ANTI ABRASION

$126.99

$

Usually ships in 2-5 days

0

50

Kohler 62 326 48-S

HOSE, OIL COOLER

$35.99

$

In Stock, only 2 left!

0

52

Kohler 62 136 06-S

NIPPLE, OIL FILTER ASSEMBLY

$15.99

$

Usually ships in 2-5 days

0

NI

Kohler 12 050 01-S

OIL FILTER

$13.99

$

In Stock, Qty 20+

0

NI

Kohler 25 086 294-S

SCREW, HEX FLANGE M6 X 1

$2.49

$

Usually ships in 2-5 days

0

NI

Kohler 62 081 42-S

HOUSING, OIL PUMP MACH-USE 62 081 38-S
(Superseded to 62 081 38-S)

$

$

Not available
