ECV980-3022 - Kohler Command PRO EFI Engine, Made for Exmark, 38hp 08 Fuel System Parts Diagram

Command PRO EFI Engine, Made for Exmark, 38hp

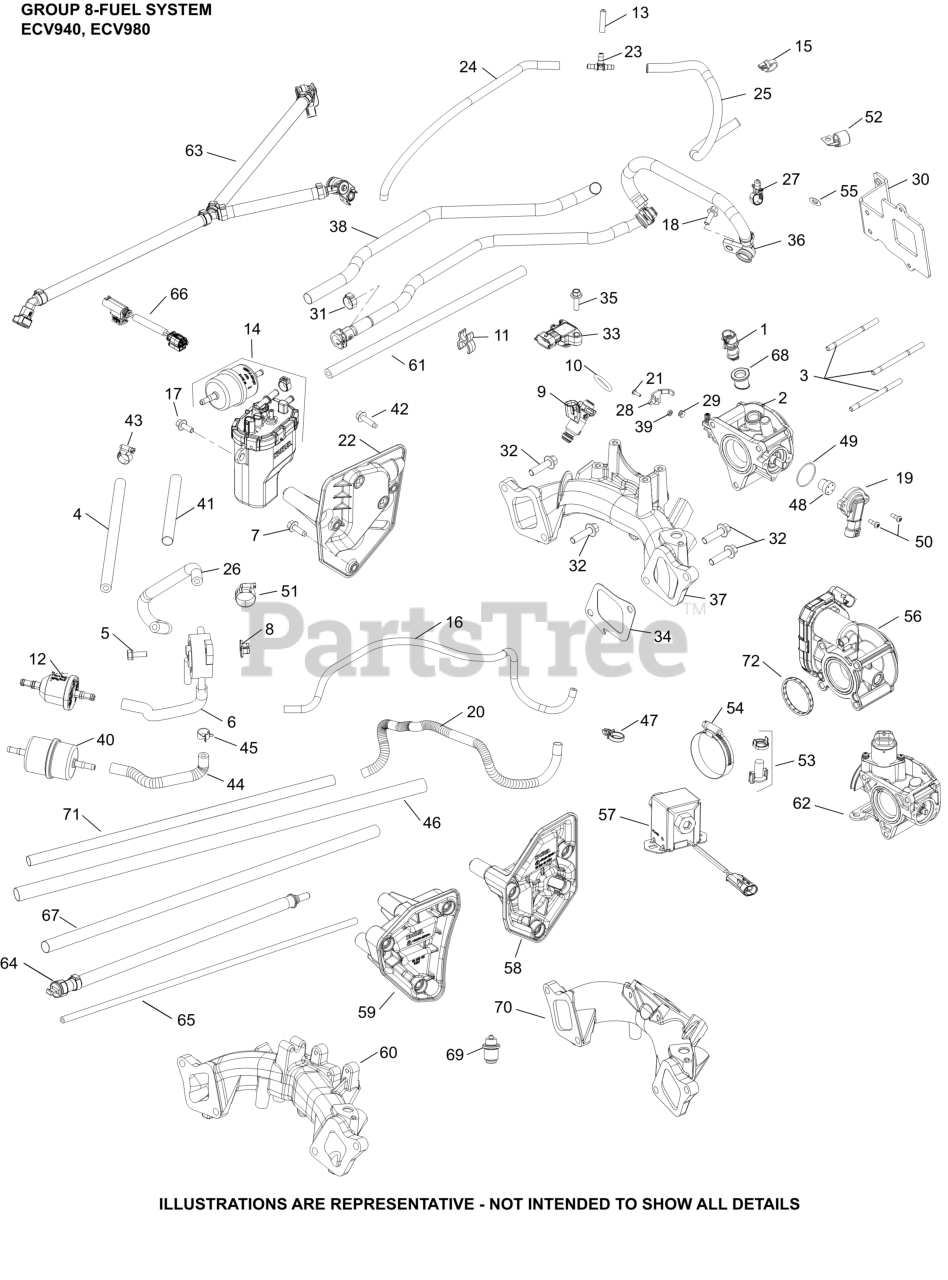

08 Fuel System Parts Diagram

  • Title

3

Kohler 25 072 35-S

STUD

$2.49

$

Usually ships in 2-5 days

0

4

Kohler 25 353 27-S

LINE, FLEXIBLE FUEL

$3.49

$

In Stock, only 1 left!

0

5

Kohler 24 086 12-S

SCREW, TAP M6X1.7X18

$2.49

$

Usually ships in 2-5 days

0

6

Kohler 24 393 16-S

PUMP, FUEL

$32.99

$

In Stock, Qty 20+

0

8

Kohler 25 100 37-S

NUT, PLASTIC - BLACK

$2.49

$

In Stock, only 4 left!

0

9

Kohler 25 331 01-S

INJECTOR, FUEL

$80.99

$

In Stock, Qty 7

0

10

Kohler 25 755 41-S

KIT, FUEL INJECTOR O-RING

$32.99

$

In Stock, only 2 left!

0

11

Kohler 62 018 06-S

RETAINER, CLIP

$3.99

$

Usually ships in 2-5 days

0

13

Kohler 25 173 33-S

CAP, MASKING

$2.49

$

Usually ships in 2-5 days

0

14

Kohler 25 393 19-S

KIT, FUEL PUMP MODULE

$456.99

$

In Stock, Qty 10

0

16

Kohler 25 326 08-S

HOSE, EVAPORATIVE 20"- (#24326143S)
(Superseded to 24 326 143-S)

$5.49

$

In Stock, Qty 5

0

17

Kohler M-639016-S

SCREW, FLG M6X1.0X16

$2.49

$

In Stock, only 2 left!

0

22

Kohler 62 063 22-S

BAFFLE, V/S FUEL PUMP MODULE

$35.99

$

Usually ships in 2-5 days

0

23

Kohler 25 155 56-S

TEE CONNECTOR

$2.99

$

Usually ships in 2-5 days

0

26

Kohler 62 111 12-S

HOSE, FUEL LINE

$2.99

$

Usually ships in 2-5 days

0

31

Kohler 24 237 17-S

CLAMP, HOSE

$2.49

$

In Stock, only 1 left!

0

31

Kohler 25 237 28-S

CLAMP, OETIKER

$2.99

$

Usually ships in 2-5 days

0

33

Kohler 25 418 13-S

SENSOR, T-MAP

$77.99

$

In Stock, only 4 left!

0

34

Kohler 62 041 13-S

GASKET, INTAKE MANIFOLD

$14.99

$

Usually ships in 2-5 days

0

35

Kohler M-651020-S

SCREW, FLG M6x1.0x20

$2.49

$

In Stock, only 4 left!

0

36

Kohler 62 399 11-S

RAIL, FUEL ASSEMBLY (COMMAND PRO 999)

$151.99

$

Usually ships in 2-5 days

0

38

Kohler 25 431 32-S

SLEEVE, ANTI ABRASION

$14.99

$

Usually ships in 2-5 days

0

40

Kohler 24 050 13-S

FILTER, FUEL

$12.99

$

In Stock, Qty 20+

0

41

Kohler 20 431 01-S

SLEEVE, ANTI ABRASION -USE 25 431 12-S
(Superseded to 20 431 02-S)

$10.99

$

Usually ships in 2-5 days

0

42

Kohler 25 086 395-S

SCREW, THREAD FORMING

$3.49

$

In Stock, Qty 16

0

43

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$5.99

$

In Stock, Qty 12

0

46

Kohler 25 431 35-S

SLEEVE, HEAT REFLECTIVE

$33.99

$

Usually ships in 2-5 days

0

47

Kohler 25 154 35-S

CLIP, FUEL LINE

$2.99

$

Usually ships in 2-5 days

0

55

Kohler 25 154 31-S

CLIP, RETAINER

$2.49

$

In Stock, only 3 left!

0

56

Kohler 25 583 22-S

BODY, ELECTRONIC THROTTLE ASM 34 DIA

$338.99

$

Usually ships in 2-5 days

0

70

Kohler 62 164 52-S

MANIFOLD, INTAKE VERTICAL (ETB)

$106.99

$

Usually ships in 2-5 days

0

71

Kohler 25 111 151-S

HOSE, FUEL LOW-PERMEATION

$10.99

$

Usually ships in 2-5 days

0

NI

Kohler 25 155 51-S

CONNECTOR, EVAPORATIVE

$13.99

$

In Stock, only 1 left!

0

NI

Kohler 25 326 96-S

HOSE, EVAPORATIVE

$2.49

$

Usually ships in 2-5 days

0

NI

Kohler 25 431 14-S

SLEEVE, ANTI ABRASION-USE 25 431 12-S
(Superseded to 25 431 12-S)

$10.99

$

Usually ships in 2-5 days

0

NI

Kohler 25 431 33-S

SLEEVE, ANTI ABRASION

$7.49

$

Usually ships in 2-5 days

0
