ECV980-3027 - Kohler Command PRO EFI Engine, Made for Konig Industries, 38hp 02 CrankCase Parts Diagram

Command PRO EFI Engine, Made for Konig Industries, 38hp

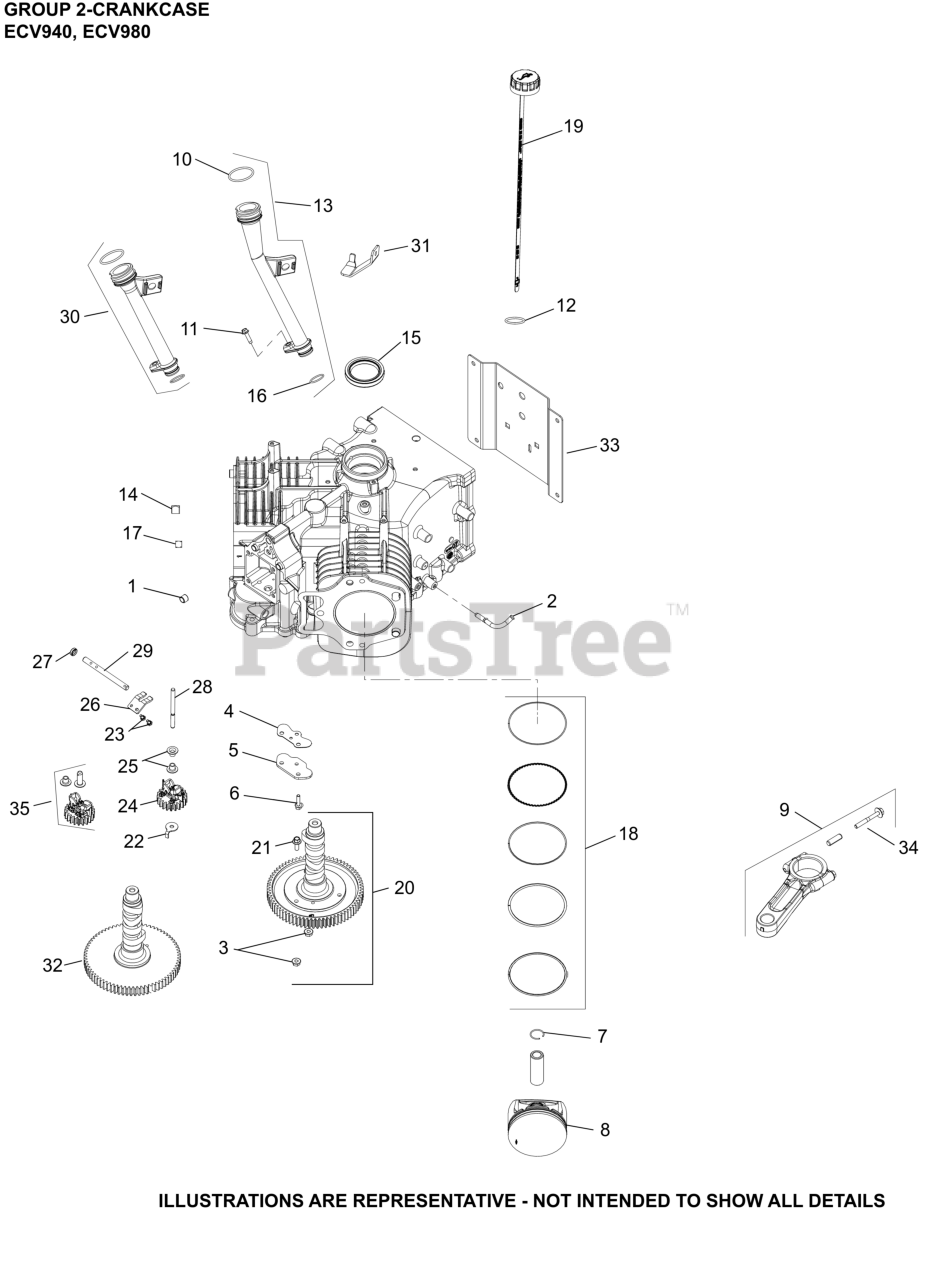

02 CrankCase Parts Diagram

  • Title

1

Kohler 15 380 01-S

PIN

$2.99

$

Usually ships in 2-5 days

0

2

Kohler 62 294 10-S

FITTING, PULSE PUMP

$10.99

$

Usually ships in 2-5 days

0

4

Kohler 62 041 24-S

GASKET, LIFTER FEED COVER

$2.99

$

Usually ships in 2-5 days

0

5

Kohler 62 096 29-S

KIT, COVER, LIFTER FEED

$6.99

$

Usually ships in 2-5 days

0

6

Kohler 25 086 776-S

SCREW, HEAVY HEX FLANGE

$2.49

$

In Stock, only 2 left!

0

7

Kohler 62 018 04-S

RETAINER, PISTON PIN

$2.99

$

In Stock, only 1 left!

0

8

Kohler 62 874 17-S

KIT, PISTON (STD)

$170.99

$

In Stock, only 1 left!

0

8

Kohler 62 874 18-S

KIT, PISTON (0.25 OS)

$170.99

$

Usually ships in 2-5 days

0

8

Kohler 62 874 19-S

KIT, PISTON (0.50 OS)

$172.99

$

Usually ships in 2-5 days

0

9

Kohler 62 067 13-S

CONNECTING ROD ASSEMBLY

$111.99

$

In Stock, only 1 left!

0

10

Kohler 12 153 02-S

O-RING, UPPER OIL FILL TUBE

$2.99

$

In Stock, Qty 12

0

11

Kohler 25 086 399-S

SCREW, THD FRM-USE 25 086 473-S
(Superseded to 25 086 473-S)

$2.99

$

In Stock, Qty 20+

0

12

Kohler 25 153 02-S

O-RING, DIPSTICK

$2.99

$

In Stock, Qty 7

0

13

Kohler 62 123 08-S

KIT,OIL FILL TUBE

$18.99

$

Usually ships in 2-5 days

0

14

Kohler 24 380 16-S

PIN, LOCATING

$4.49

$

In Stock, Qty 16

0

15

Kohler 25 032 21-S

SEAL, OIL (RIGHT-HAND HELIX, FWE)

$9.49

$

Usually ships in 2-5 days

0

16

Kohler 12 153 07-S

O-RING

$2.49

$

In Stock, only 2 left!

0

17

Kohler 25 139 60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 2 left!

0

18

Kohler 62 108 07-S

RING, SET PISTON (STD) "STYLE B ONLY"

$39.99

$

In Stock, only 2 left!

0

19

Kohler 62 038 05-S

DIPSTICK ASSEMBLY

$28.99

$

In Stock, only 1 left!

0

32

Kohler 62 012 21-S

KIT, CAMSHAFT

$173.99

$

Usually ships in 2-5 days

0

34

Kohler 25 086 677-S

KIT, ROD BOLTS

$2.49

$

Usually ships in 2-5 days

0
